SERVICE (cont.)
BREW SELECTOR SWITCH (cont.)
P827
27038 091900

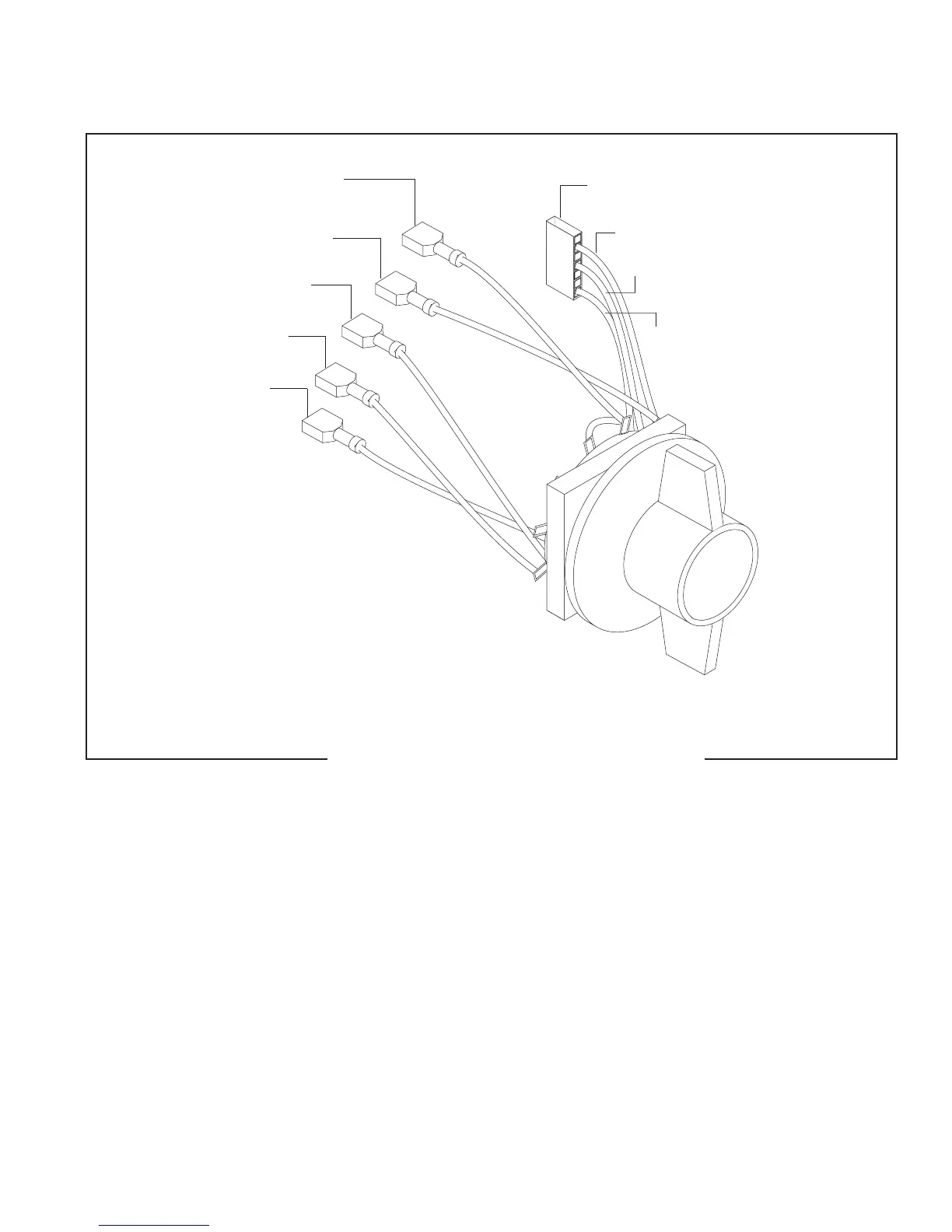

FIG. 4 BREW SELECTOR SWITCH TERMINALS
To Timer
TAN
GRY
PNK
WHI/VIO to By-Pass Valve
WHI/RED to Dispense Valve
GRY to GRY Lead on
Interface Socket
PNK to PNK Lead on
Interface Socket
TAN to TAN Lead on
Interface Socket
