SERVICE (cont.)
CONTROL THERMOSTAT (cont.)
P842
27038 030901
NOTE - The capillary tube must be clear of any electri-
cal termination and not kinked.
7. Using a #8-32 slotted head screw fasten the control
thermostat to the component bracket.
8. Refer to Fig. 8 when reconnecting the wires.
9. Adjust the control thermostat as required.

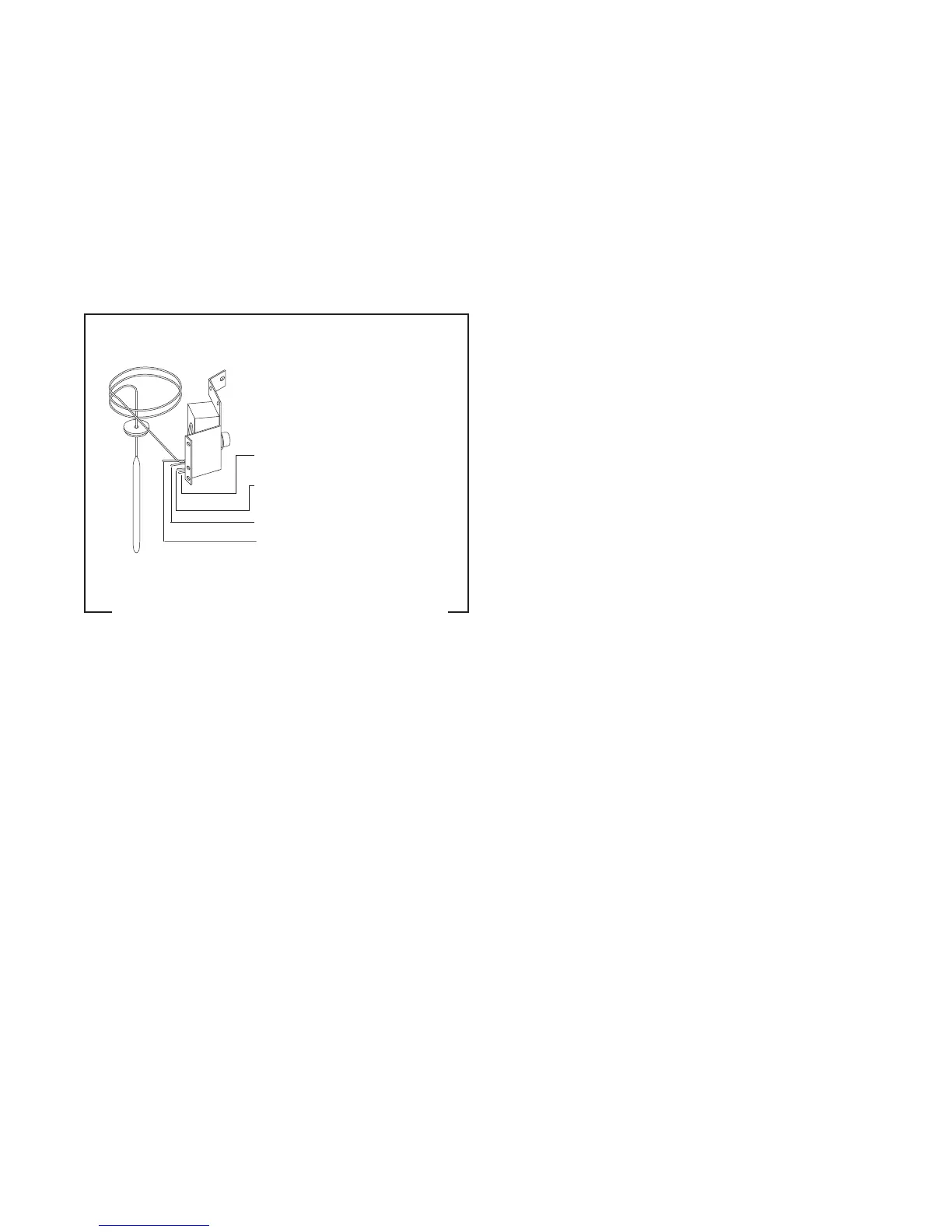

FIG. 8 CONTROL THERMOSTAT TERMINALS
BLU to Ready Light
BLK to RED Lead from Liquid Level Switch
BLK to BLK Lead on Contactor Coil
BLK to Ready Light
