SERVICE (cont.)

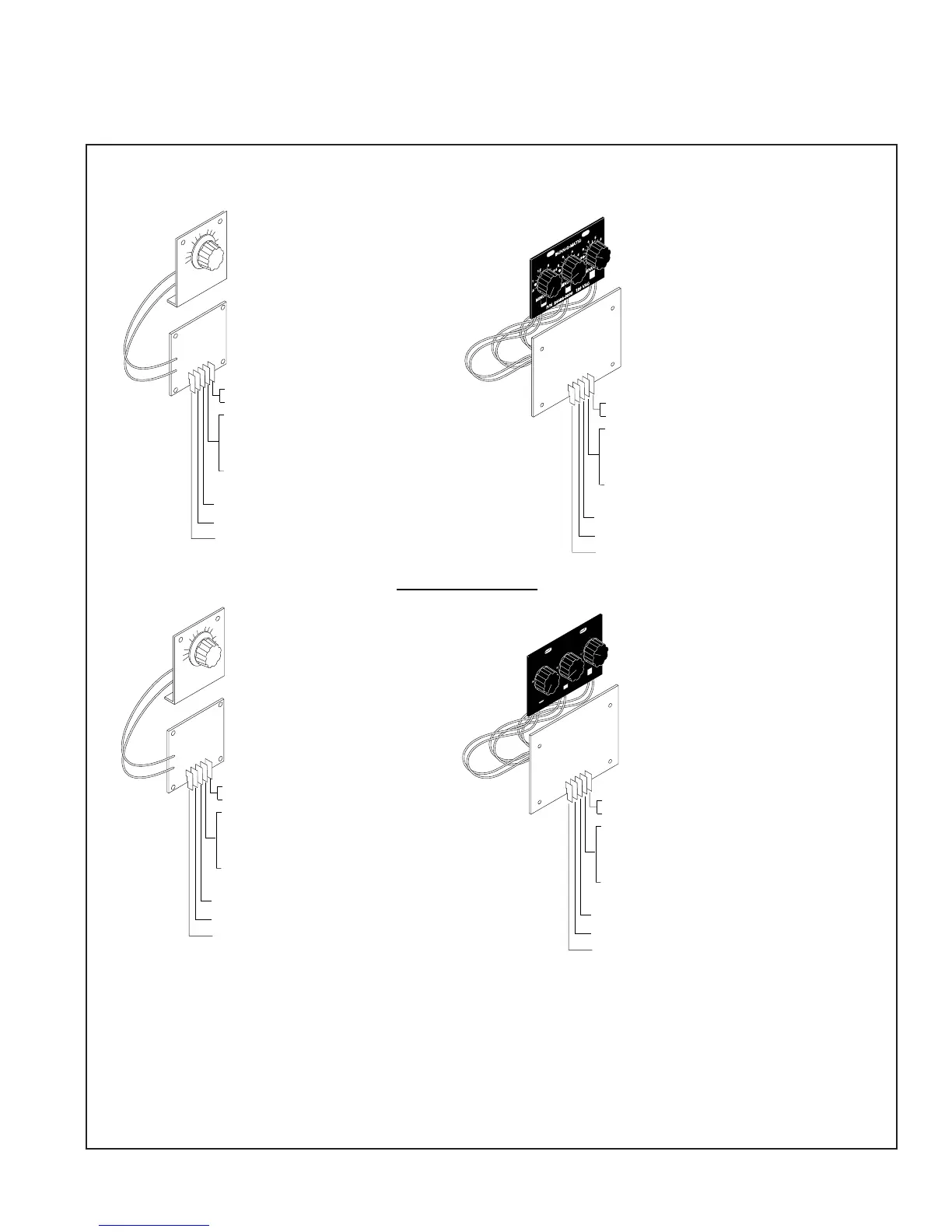

TIMER (First Type)(cont.)
.
MINUTES
BUNN-O-MATIC
P/N 2620- 120 VAC
WHI/VIO TL1 to ON/OFF Switch
WHI/VIO TL1 to Warmer Element
WHI TL2 To Terminal Block and Warmer Element
(120V Two Pole, 120/208V or 120/240V Three Pole
Terminal Block)
RED TL2 to Terminal Block and Warmer Element
(200V or 240V Two Pole Terminal Block)
WHI/ORA TL3 to Start Switch (Top)
WHI/GRN TL4 to Dispense Valve (Upper Front)
WHI/YEL TL5 to Start Switch (Bottom)
WHI/VIO TL1 to ON/OFF Switch
WHI/VIO TL1 to Warmer Element
WHI TL2 To Terminal Block and Warmer Element
(120V Two Pole, 120/208V or 120/240V Three Pole
Terminal Block)
RED TL2 to Terminal Block and Warmer Element
(200V or 240V Two Pole Terminal Block)
WHI/ORA TL3 to Start Switch (Top)
WHI/GRN TL4 to Dispense Valve (Upper Front)
WHI/YEL TL5 to Start Switch (Bottom)
2
2
2
1.5
1
1
1
.5
2.5
MINUTES
MINUTES
MINUTES
P/N 24486-0000 120 VAC
BUNN-O-
MATIC
3
3
3
4
4
5
5
6
6
7
8
ELECTRO/MECHANICAL
.
MINUTES
BUNN-O-MATIC
P/N 2620- 120 VAC
WHI/VIO TL1 to ON/OFF Switch
WHI/VIO TL1 to Warmer Element
WHI TL2 To Terminal Block and Warmer Element
(120V Two Pole, 120/208V or 120/240V Three Pole
Terminal Block)
RED TL2 to Terminal Block and Warmer Element
(200V or 240V Two Pole Terminal Block)
WHI/YEL TL3 to Interlock Assy
WHI/GRN TL4 to Dispense Valve
YEL TL5 to Start Switch
WHI/VIO TL1 to ON/OFF Switch
WHI/VIO TL1 to Warmer Element
WHI TL2 To Terminal Block and Warmer Element
(120V Two Pole, 120/208V or 120/240V Three Pole
Terminal Block)
RED TL2 to Terminal Block and Warmer Element
(200V or 240V Two Pole Terminal Block)
WHI/YEL TL3 to Interlock Assy
WHI/GRN TL4 to Dispense Valve
YEL TL5 to Start Switch
2
2
2
1.5
1
1
1
.5
2.5
MINUTES
MINUTES
MINUTES
P/N 24486-0000 120 VAC
BUNN-O-
MATIC
3
3
3
4
4
5
5
6
6
7
8
ELECTRONIC
P838
27038 030901
