Page 4
ELECTRICAL REQUIREMENTS
CAUTION - The brewer must be disconnected from the power source until specifi ed in Initial Set-Up.

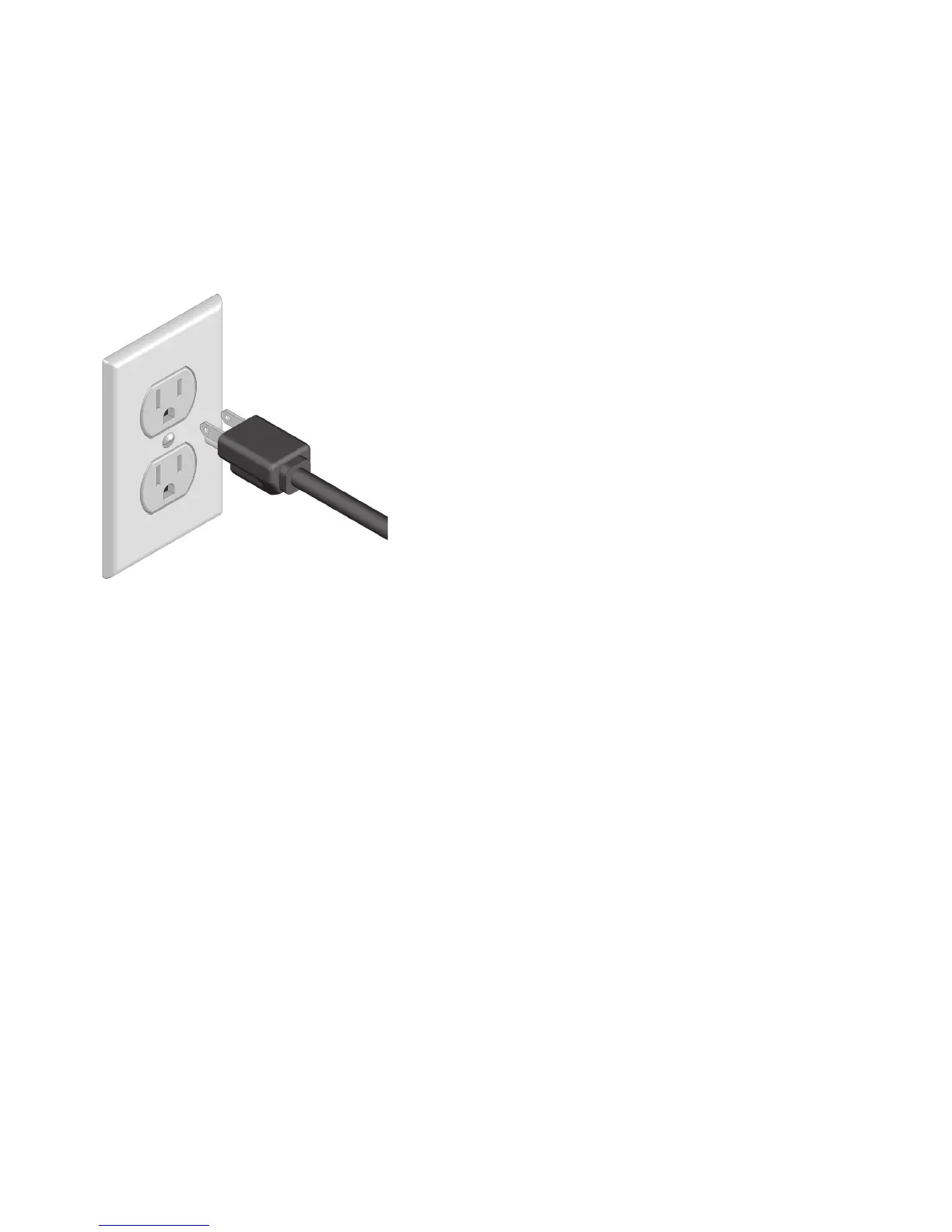

All 120V models have an attached cordset and plug.
Model 15 requires 2-wire grounded service rated 120 volts ac, 15 amp, single phase, 60 Hz.
Model 35 requires 3-wire, grounded service rated 220-240 volts ac, 10 amp, single phase, 50/60 Hz.
Electrical Hook-Up
CAUTION – Improper electrical installation will damage electronic components.
1. An electrician must provide electrical service as specifi ed.
2. Using a voltmeter, check the voltage and color coding of each conductor at the electrical source.
3. If plumbing is to be hooked up later be sure the brewer is disconnected from the power source. If plumbing
has been hooked up, the brewer is ready for Initial Set-Up.
Model 35 requires 3-wire, grounded service rated
120/208 or 120/240 volts ac, 20 amp, single phase, 60
Hz. Proceed as follows:
Model 15 has an attached cordset and requires
2-wire grounded service rated 120 volts ac, 15 amp,
single phase, 60 Hz.
N
L1
G
L2 RED L2 RED
WHITE
GREEN GREEN
NEUTRAL
L1 BLACK
WHITE
NEUTRAL
L2
L1 BLACK
120V. A.C.
120V. A.C.
208 or 240V. A.C.
FIG 1 FIG 2
40410 092407
Electrical Hook-Up
CAUTION – Improper electrical installation will damage electronic components.
1. An electrician must provide electrical service as specifi ed.
2. Using a voltmeter, check the voltage and color coding of each conductor at the electrical source.
3. Remove the front panel beneath the sprayhead.
4. Feed the cord through the strain relief and connect it to the terminal block.
5. Connect the brewer to the power source and verify the voltage at the terminal block before proceeding.
Replace the front panel.
6. If plumbing is to be hooked up later be sure the brewer is disconnected from the power source. If plumbing
has been hooked up, the brewer is ready for Initial Set-Up.
