DASH FM & DASH X FM
ENG FRA ESP
ASSEMBLY & USE

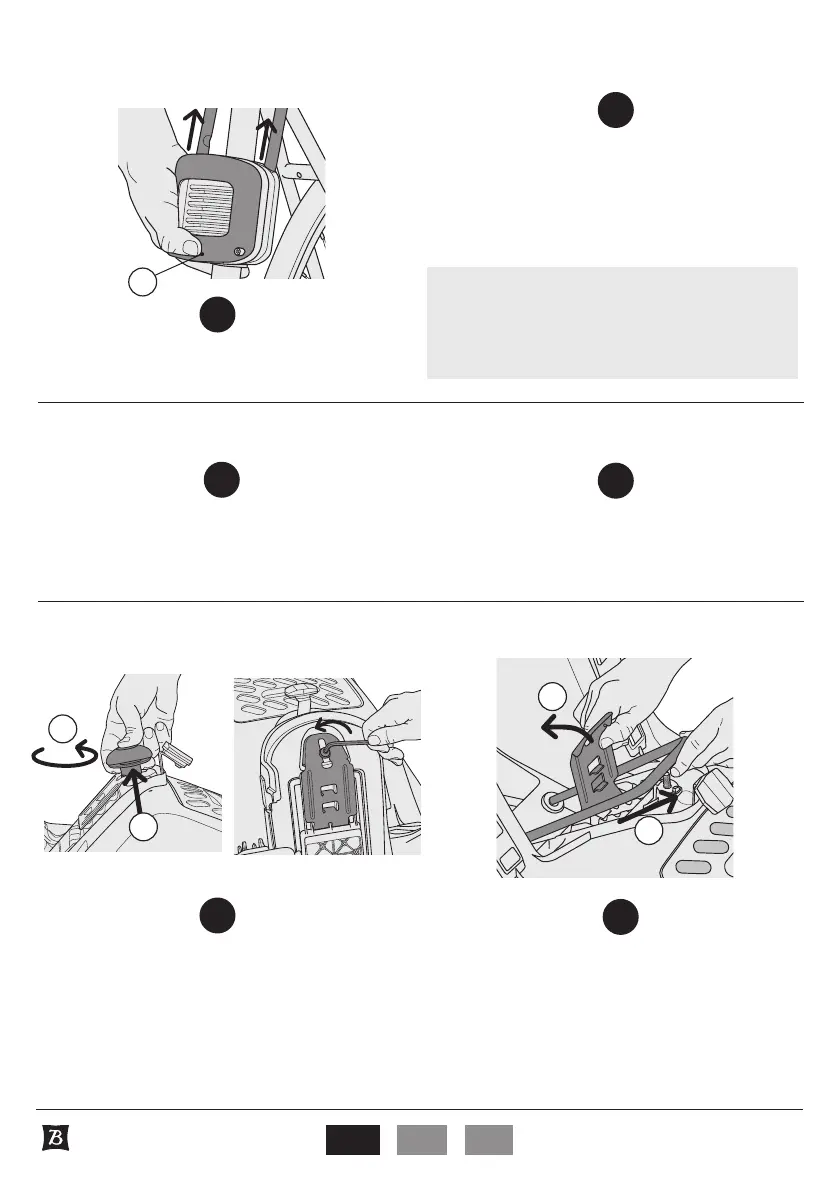

Detach the Safety Strap by
releasing the buckle.
Dash FM: Remove the Mounting Knob
by pulling the Locking Ring towards the
Mounting Knob
A
, and rotating the
Mounting Knob counter-clockwise
B
.
Dash X FM: Remove the bolt by
using the included Hex Wrench to
rotate it counter-clockwise.
Remove the Mounting Plate from the
Mounting Block by using the provided Hex
Wrench to remove the 4 screws, while
being careful not to lose the lock washers.
Remove the Mounting Rails from
the Mounting Block by depressing
the front face of the mounting
block
A
and pulling the Mounting
Rails out of the Mounting Block.
Rotate the Base Plate away from the
seat
A
and then slide the Mounting
Rails out through the 2 holes between
the legs of the Bicycle Seat
B
.
Remove the Mounting Block
from the bicycle frame.
1
1
1
2
2
2
note
It is easiest to remove the Mounting Rails from the
Mounting Block if you grab the front of the Bicycle
Seat between the legs (where the Mounting Rails
pass through the Bicycle Seat).
Removing the Bicycle Seat from Your Bicycle
Removing the Mounting Rails from Your Bicycle
Removing the Frame Mount Assembly from Your Bicycle
Dash FM Dash X FM
B
B
A
A
A
