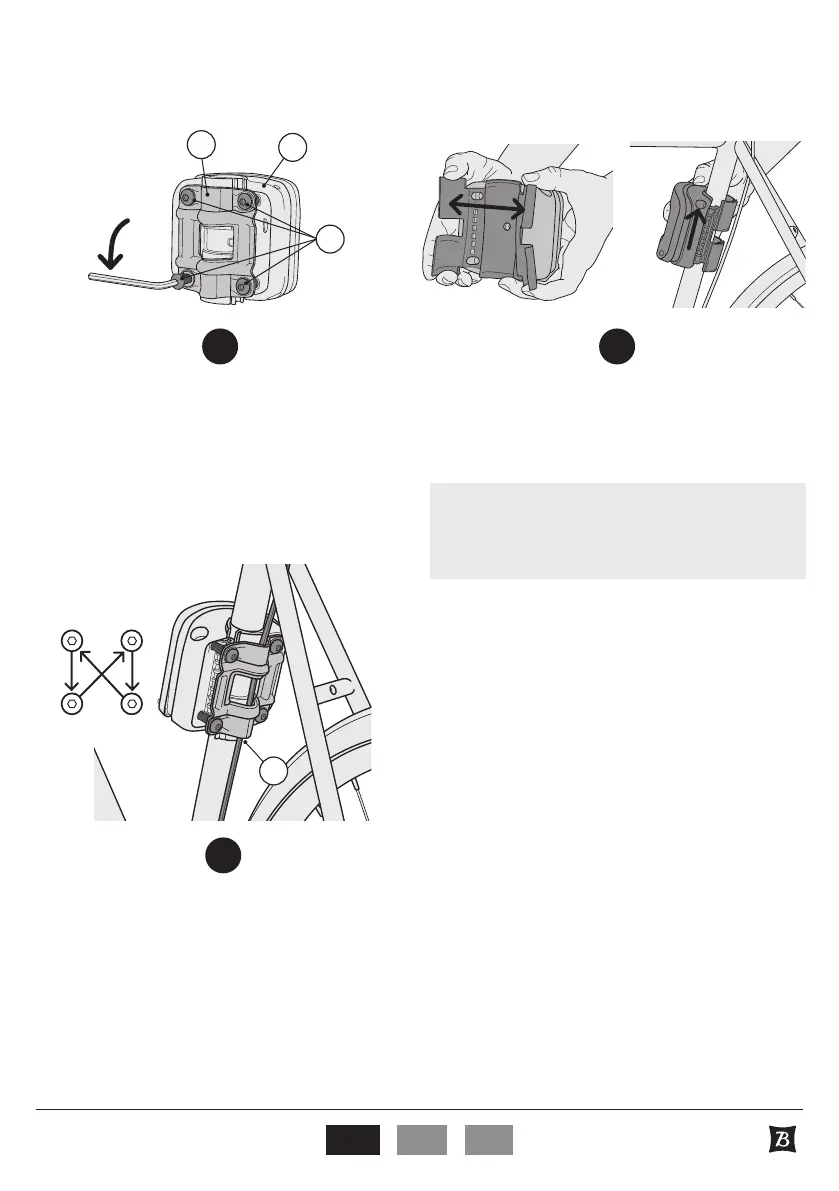

Remove the Mounting Plate
A
from
the Mounting Block
B
by using the
provided Hex Wrench to remove the
4 screws and lock washers
C
.
Re-attach the Mounting Plate to the Mounting
Block using the 4 screws with lock washers.
Position any cables so that they run though
the central channel between the frame
protector and the mounting plate
A
.
Tighten the 4 screws in a crisscross pattern
and in stages to a torque value of 8NM. Check
the security of the fasteners regularly. Ensure
that the space between the Mounting Plate
and Mounting Block is even on all sides.
Open the Frame Protector on the Mounting
Block wide, and wrap it around the Seat Tube
of your bicycle, with the Mounting Block facing
toward the front of the bicycle, and orient
with the Mounting Rail holes facing upwards.
1
3
2
note
The Frame Protector should go underneath any
cables so that there is nothing between the frame
protector and the bicycle frame.
Attaching the Frame Mounting System
to Your Bicycle
A
B
C
8NM
A
ASSEMBLY & USE
