XIII. Repair Parts (continued)
Key
No.
Description
(Quantity) Part Number
APX399 APX500 APX800
2A Blower 101530-01 101531-01 103222-01
2B
Blower Inlet Shroud Assembly
(includes Gas Orice; Gas Orice O-Ring; (3x) M4x20 mm or (3x) M4x25 mm
Self-threading Screws; Injector Plate; (4x) M4 x 10 mm Flat Head Screws;
Air Intake Adapter - Air Connection Side; Swirlplate; (2x) M5 x 16 mm Phillips
Flat Head Screws; Blower Adapter Plate; Air Intake Adapter - Blower Side).
101704-04 101704-05 103223-01
2B-1
Blower Inlet Repair Kit (includes Blower Adapter Plate, Swirlplate and
Mounting Hardware)
104620-04 104620-05 N/A
2C Gas Valve 102975-06 102975-07
(2) 103224-01
(Nat. Gas)
103299-01 (LP)
2D
Gas Valve Harness with Plug 102971-01 103300-01 (LP)
Gas Valve Harness with Two Plugs N/A 103225-01 (Nat. Gas)
2E Blower Outlet Gasket 101345-01 102614-01 103263-01
2F Gas Valve Flange Kit N/A 102972-03 (4) 102972-03
2G Rubber Grommet, Gas Line 101638-01 103252-01
APX800 Only

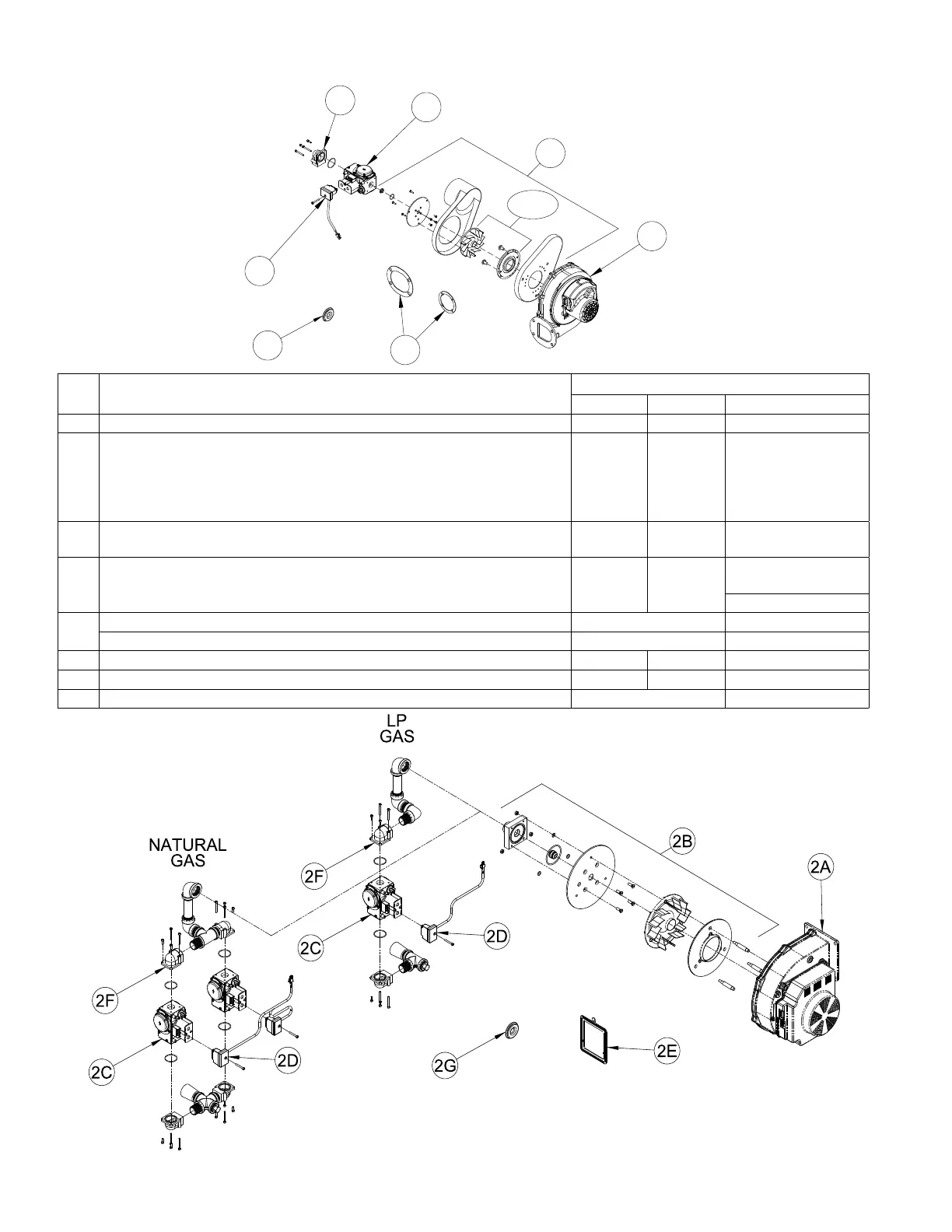

2A
2D
2C
2E
(SIZE 500)
(SIZE 399)
2F
(SIZE 500 ONLY)
2G
2B
2B-1
APX399 and APX500 Only
