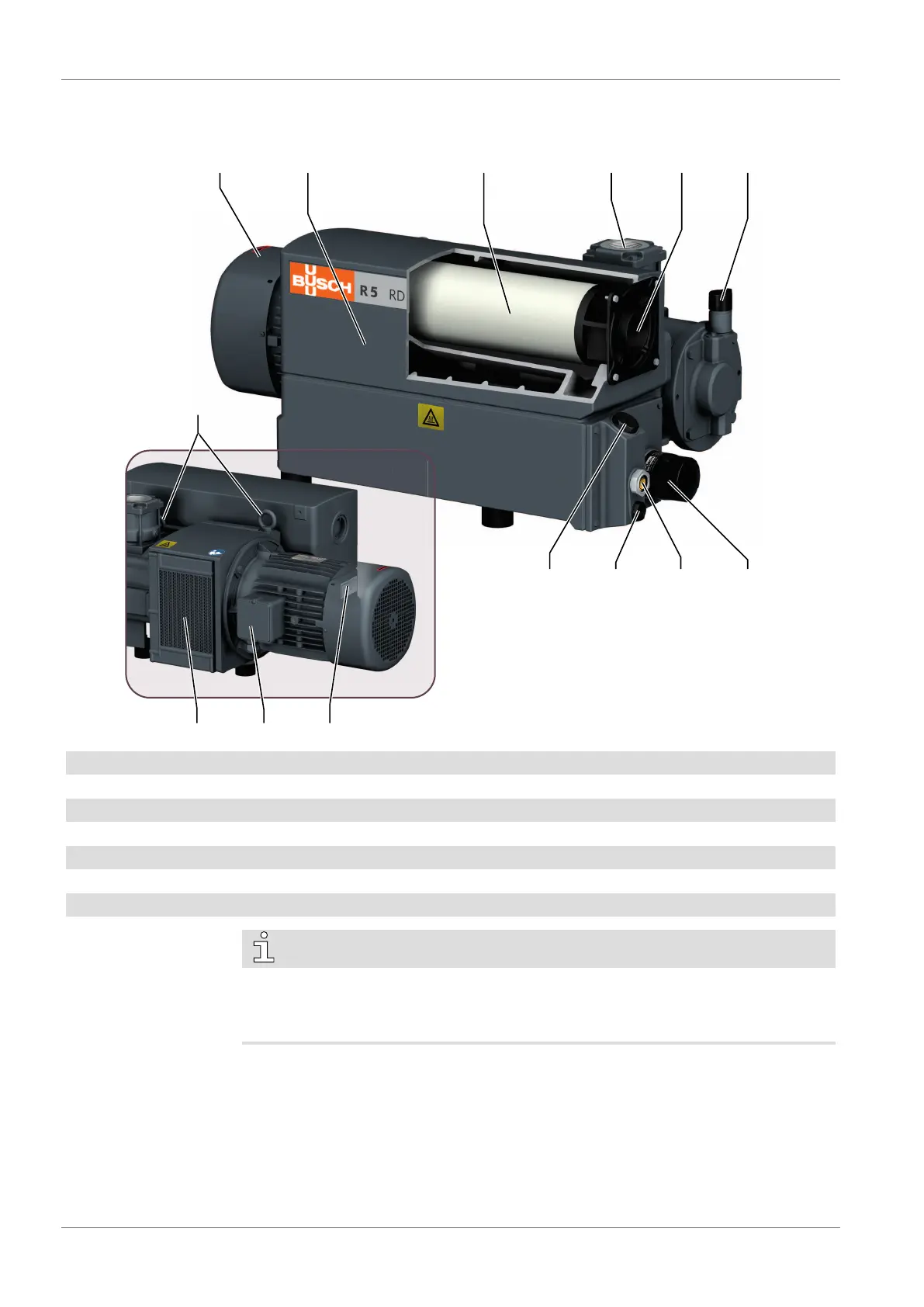

2 | Product Description
4 / 28 0870572700_RD0200-0360A_-0003_IM_en
2 Product Description
DA OS EF IN GBOUT
OFOSGODPOFP
MTB
AHE
NP
EB
AHE Air-oil heat exchanger DA Directional arrow
EB Eye bolt EF Exhaust filter
GB Gas ballast valve IN Suction connection
MTB Motor terminal box NP Nameplate
ODP Oil drain plug OF Oil filter
OFP Oil fill plug OS Oil separator
OSG Oil sight glass OUT Discharge connection
NOTE
Technical term.
In this instruction manual, we consider that the term ‘machine’ refers to the ‘vacuum
pump’.
