C H A P T E R 2 - A S S E M B L Y O F T H E A M I C U S

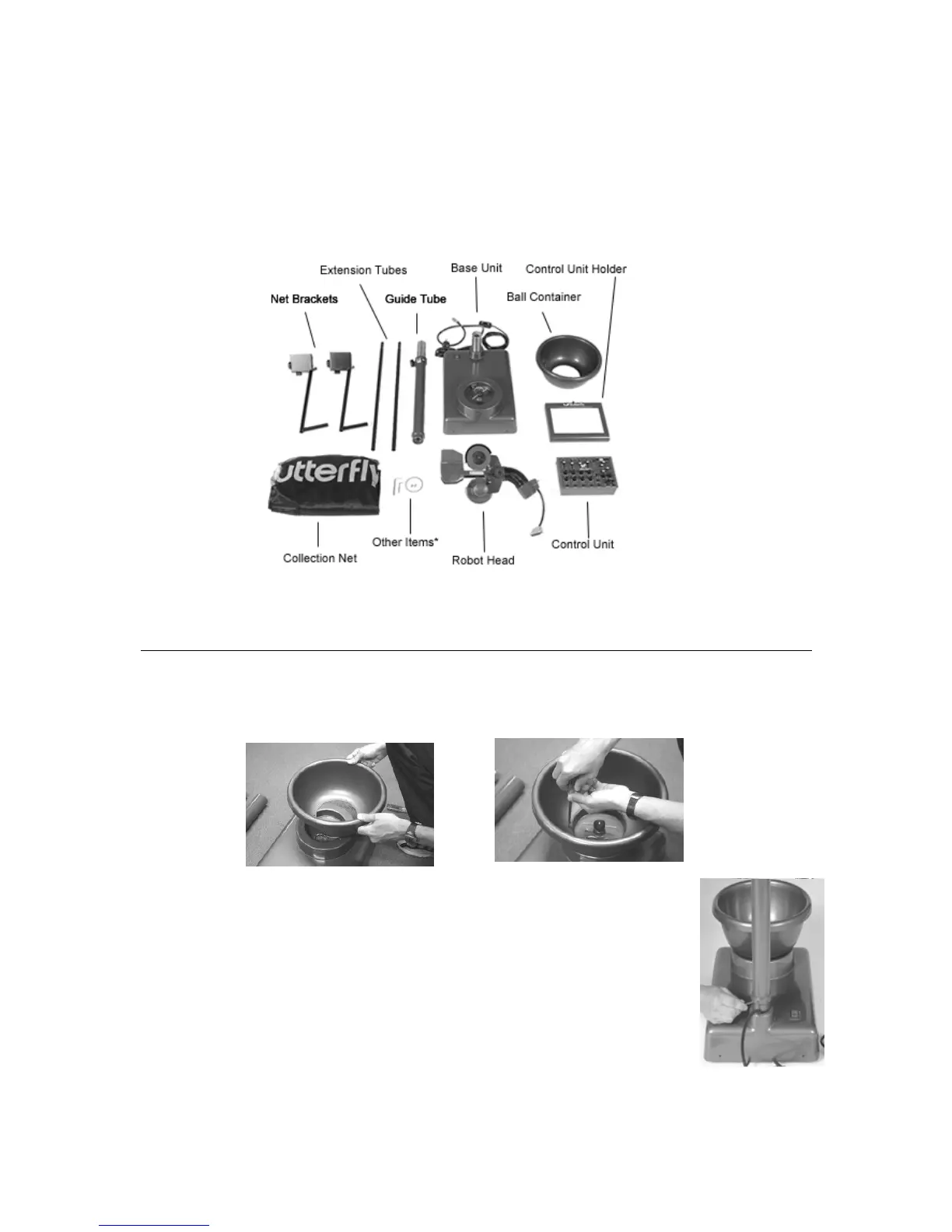

P A R T S & T O O L S N E E D E D :
The Amicus 3000 Plus table tennis robot can be assembled in approximately 40 minutes. The tools
needed are: a small flat head screw driver, a Philips-head screwdriver, and a hex wrench (included with
the Amicus).
*Other items: 2 piece hex wrench, 2 spare fuses, spare rubber rings for collecting net.
A S S E M B L Y P R O C E D U R E
2. Fasten the ball container to the robot base using a Philips-head screw driver and the recessed
head screws supplied (Fig. 1a, 1b) Ensure that the screws cannot fall into the opening of the
container (perhaps covering the opening with a cloth)
Fig 1a Fig 1b
3. Slip the ball guide tube onto the tube section of the robot base (studs . must
be at the bottom end) and tighten the studs.(Fig 2). Ensure that the ball guide
tube is mounted on the tube section as far as it will go.
4.
5. Fig 2
6.
