-4-
ASSEMBLY
21.
Stretch the coil until the bottom of the bottom clamp on the coil/capacitor
assembly 30 meter (P) is even with the mark on coil support tube 30 meter (O) and
tighten the wing nut.
22.
Slide the remaining clamp from the above assembly over tube (E) and position it so
the coil support tube L bracket (O1) is even with fourth turn, counting from the
top of the 40 meter coil on the coil assembly 80/40 meter (C) and tighten the hex
nut.
23.
Hook the coil support tube 30 meter L bracket (O1) around the fourth turn of the
40 meter coil on coil assembly 80/40 meter (C). Secure with a # 8 x 3/4" screw,
lock washer and hex nut.
24.
Position wire clamp 0.875" 15 M w/insulator (K) around tube (F) and use a # 8 x
1" screw, lock washer and hex nut finger tight.
25.
Insert the un-slotted end of tube (G) into the slotted end of tube (F) and secure
with a # 8 x 1 1/4" screw, lock washer and hex nut.
26. Locate wire clamp 0.750" 15 M w/insulator (N) and position it around tube (G).
27. Insert the un-slotted end of tube (H) into the slotted end of tube (G) and secure
with a # 8 x 1" screw, lock washer and hex nut.
28. Locate wire clamp 0.625" 15 M w/insulator (M) and position it around tube (H).
29. Insert the un-slotted end of tube (I) into the slotted end of tube (H) and secure
with a # 8 x 1" screw, lock washer and hex nut.
30.
Position wire clamp 0.500" 15 M w/wire around tube (I) so the top edge is 13.5 in
(34.3 cm) from the upper end of the tube.
31.

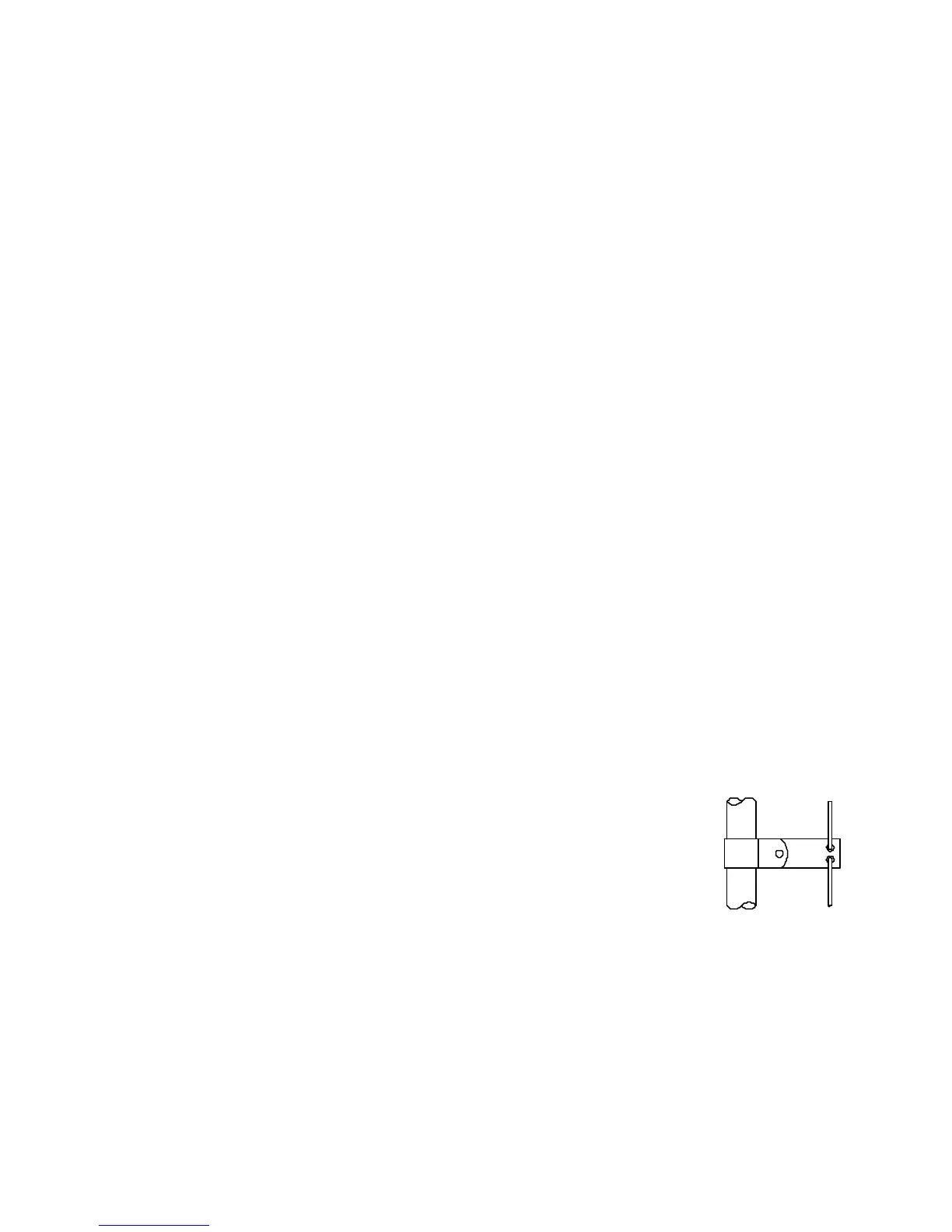

Measure from the rivet of wire clamp 0.500" 15 M w/wire (L) to a point 11 ft 3 in
(3.4 m) along the stranded wire and mark this point.
32. Pass the free end of the stranded wire from wire clamp 0.500" 15
M w/wire (L) through the small holes in wire clamp 0.625" 15 M
w/insulator (M) and wire clamp 0.750" 15 M w/insulator (N) as
shown.
33. Loop the end of the wire through the hole in wire clamp 0.875" 15
M w/insulator (K) sliding it on tube (F) until the mark on the wire
appears. Wind the wire back on itself. Do not cut off the excess wire.
34. Line up wire clamp 0.875" 15 M w/insulator (K), wire clamp 0.750" 15 M
w/insulator (N) and wire clamp 0.625" 15 M w/insulator (M) with wire clamp
0.500" 15 M w/wire (L) and tighten all clamps making sure the wire is moderately
taut but not enough to cause the upper tubing section to bow.
