BWT AQA total 1500 Installation And Operating Instructions

24 25
EN EN

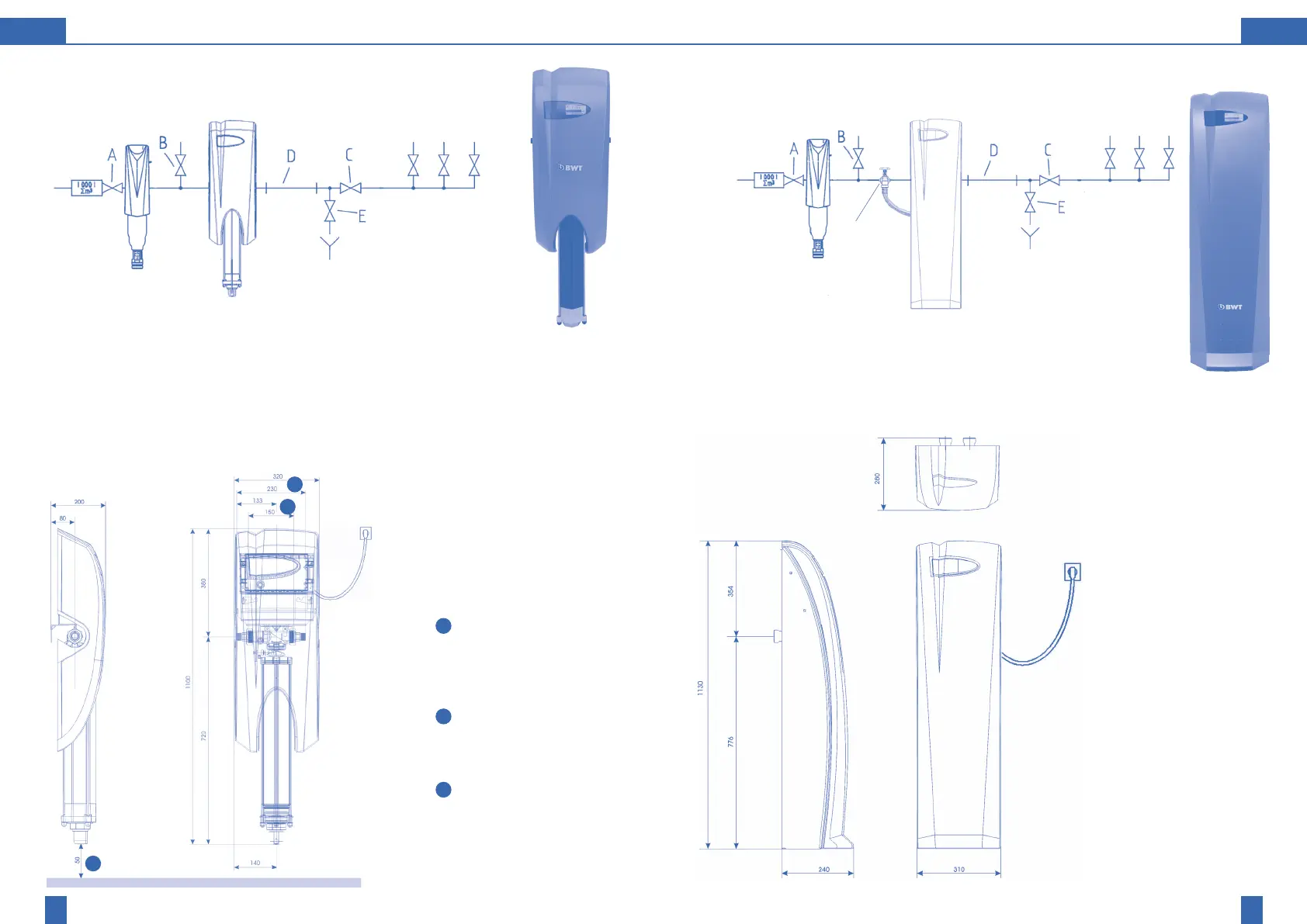

4.3. Installation diagrams
b.) Installation diagram AQA total 2500
A Water counter shut-off valve
B Outlet valve to garden
C Unit shut-off valve
D Test section
E Rinsing valve
The test section is an easily removable, new pipe section, which should have a pipe length/pipe diameter of
approximately 6:1. It must be fitted immediately downstream of the AQA total system.
optional Multiblock
4.3. Installation diagrams
a.) Installation diagram AQA total 1500
A Water counter shut-off valve
B Outlet valve to garden
C Unit shut-off valve
D Test section
E Rinsing valve
The test section is an easily removable, new pipe section, which should have a pipe length/pipe diameter of
approximately 6:1. It must be fitted immediately downstream of the AQA total system.
Installation length without
glands (5/4“ locking nut, 5/4“
external thread)
Installation length with glands
(both sides 1“ external thread)
Necessary space for removal
of working unit
1
1
2
2
3
3
