6.9. Rinsing the AQA total unit:
Open the rinsing valve and rinse each
AQA total distributor branch (each individual
working unit) for ca. 3 minutes. To do this
open or close the corresponding distributor
shut-off valve.
6.10. Close the rinsing valve and open all shut-off
valves of the AQA total distributor.
6.11. Close bypass circuit if present and open
shut-off valve downstream of AQA total unit.
6.12. Insert unit covers
and fix in place
with mounting
bracket
6.13. Check function:
The green “IN
OPERATION” lamp
on the control box
must light up during
water consumption
(open a consumer:
e.g. a water tap).
In addition, the following text must appear on the
LCD in the control box during water consumption:
AQA total 5600
AQA total 8400
AQA total 11200
AQA total 14000
In addition, the
green lamps on the
individual slave
circuit boards (the
number depends on
the actual unit type)
light up during water
consumption.

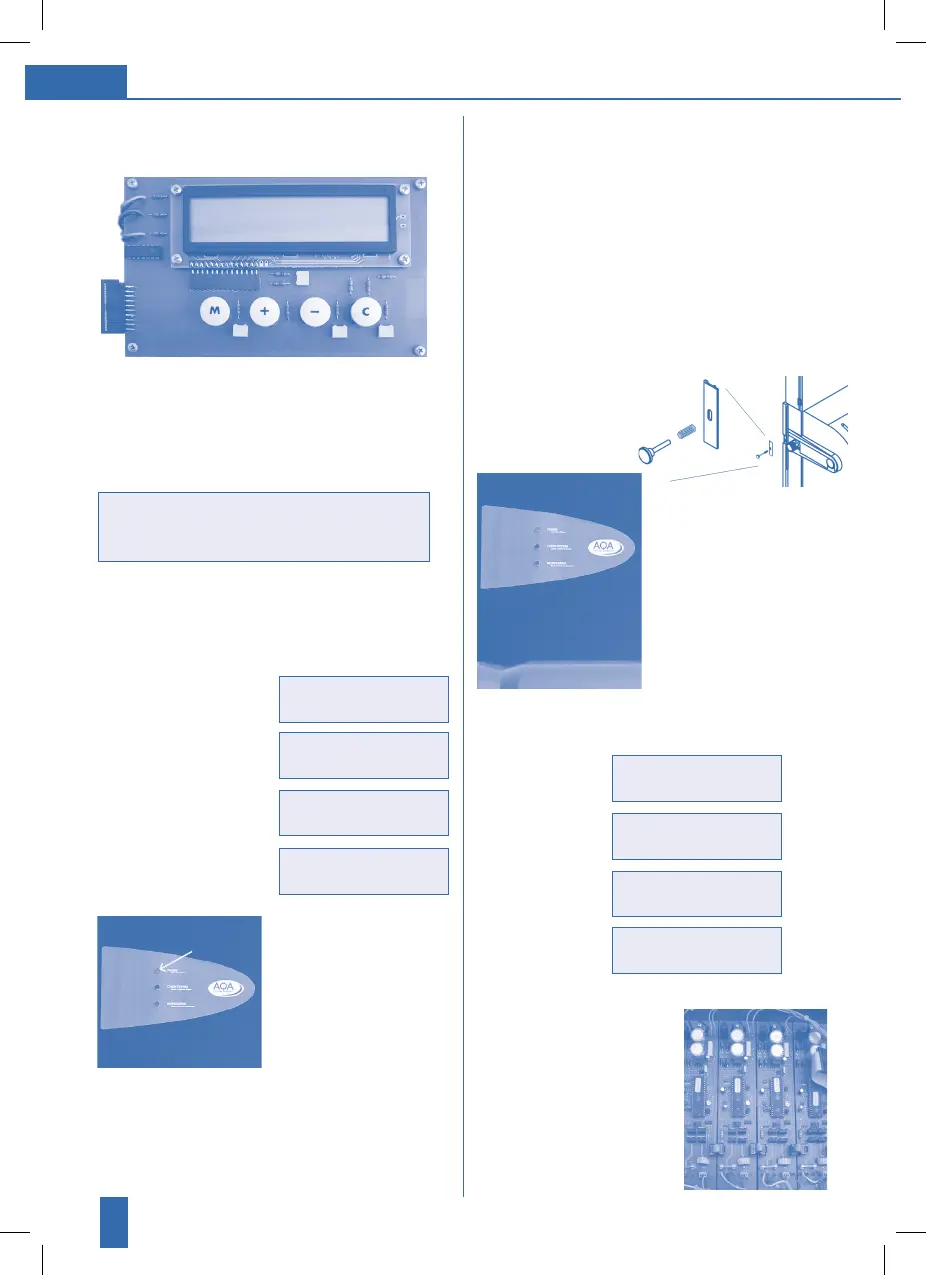

Open the control box of the AQA total unit and
check the LC display.
Plug the mains cable into the protective contact so
-
cket provided.
The AQA total unit requires ca. 10 seconds to
initialize. During this time, the LCD in the control box
displays:
(a different number may appear, depending on the
software version)
After ca. 10 seconds the display changes to the
standby mode:
AQA total 5600
AQA total 8400
AQA total 11200
AQA total 14000
The yellow “POWER”
lamp (on the control box)
lights up to indicate the
electrical supply is on.
6.8. Changing the operating language:
The language is set at the factory to
thecountry of sale language. If the
language needs changing after
commissioning, please refer to Operation:
“Changing the operating language”.
standby
chan. 1 2
standby
chan. 1 2 3
standby
chan. 1 2 3 4
standby
chan. 1 2 3 4 5
AQA total
Vers. 5.0
Operation
Channel 1 2
Operation
Channel 1 2 3
Operation
Channel 1 2 3 4
Operation
Channel 1 2 3 4 5
