BYD MINI ES - Product Composition

2
Number
Name
Description
demand

General load distribution board
Used to connect general load, grid, PV
inverter and the “GRID” terminal of the MINI
ES

Essential load distribution board
Connects to “LOAD” terminal in MINI ES

General load
High power electric appliances

Essential load
Essential single phase electric appliance
When grid power is off, MINI ES will supply
essential load circuit

Router
Uploads the data of MINI ES
1.2 Product Composition

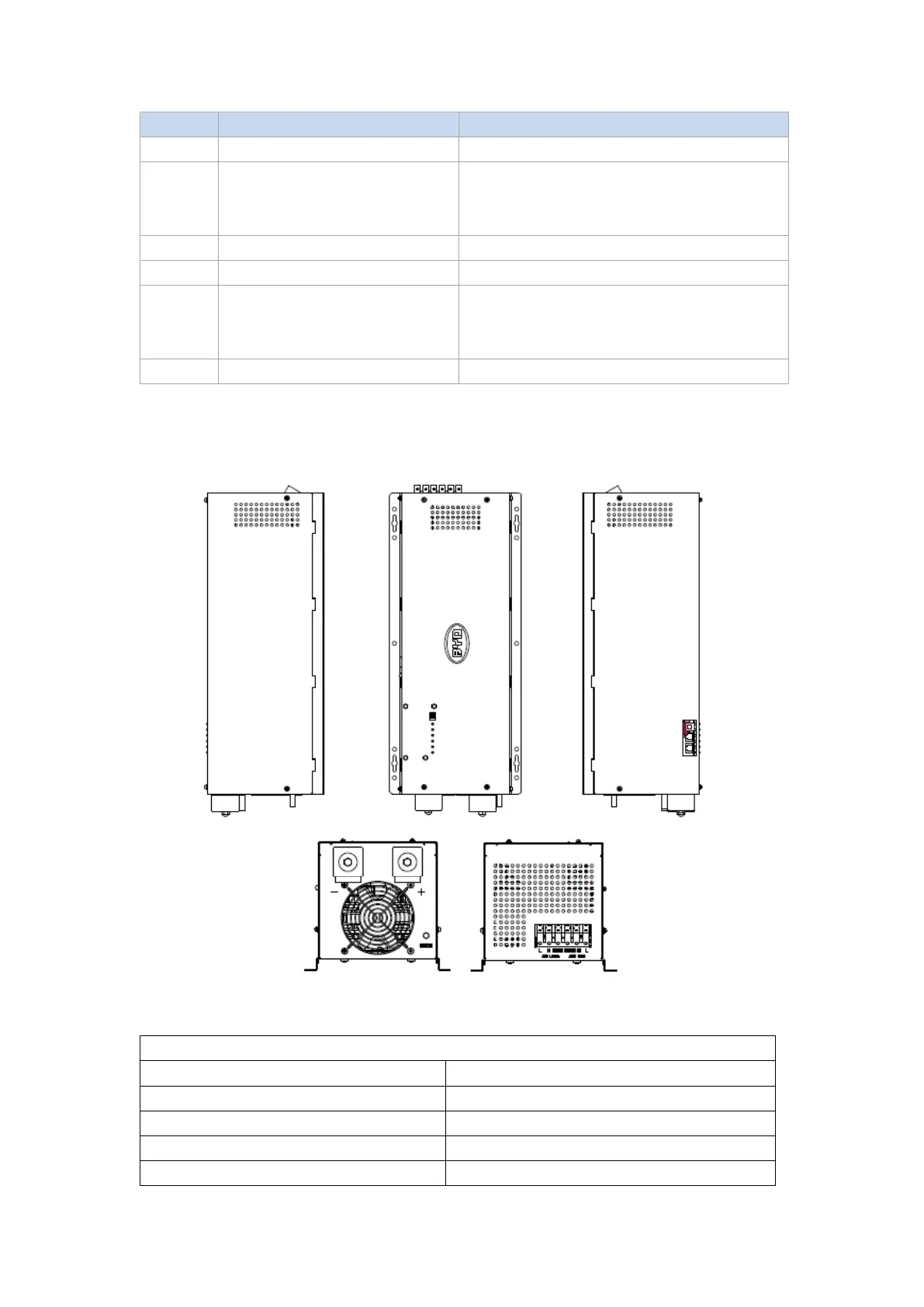

MINIES is mainly composed of pcs and battery.
 PCS
PCS Parameters
DC Nominal Voltage
51.2VDC
AC Maximum Power
4140W
AC Nominal Power
3000W
AC grid Voltage
230V
Maximum Discharge Current
13A
