C-Data FD1208S User Manual

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: +86-755-26014509/4710/4711 Fax:+86-755-26014506
Website: www.cdatatec.com
8

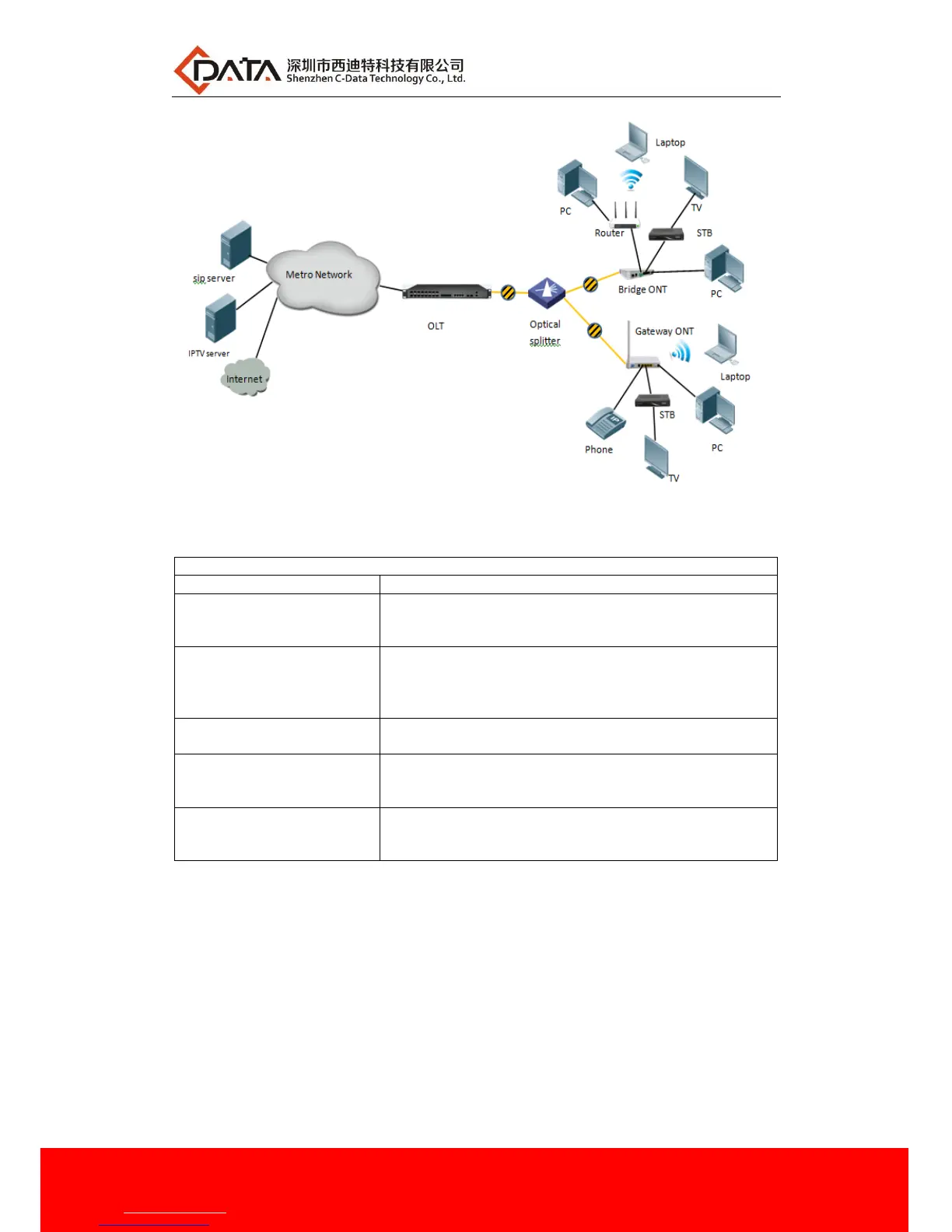

5.2 Data Plan
Main Data Plan List
Configuration Item
Data
VLAN Data
VLAN 100：Internet Service
VLAN 200：IPTV Service
VLAN 300：VOIP Service
OLT Port Setting
Ge5：VLAN 100 access mode
Ge6：VLAN 200 access mode
Ge7：VLAN 300 access mode
PON1：VLAN 100, VLAN 200, VLAN 300 trunk mode
ONU Register ID
Bridge ONU ID：1
Gateway ONU ID：2
Bridge ONU Port config
LAN 1：VLAN 100
LAN 2：VLAN 200
LAN3: VLAN 300 ---connect to VOIP phone
Gateway ONU Port config
Internet WAN：VLAN 100
IGMP WAN：VLAN 200
VOIC WAN：VLAN 300
5.3 Config Guide
