Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: +86-755-26014509/4710/4711 Fax:+86-755-26014506
Website: www.cdatatec.com
16

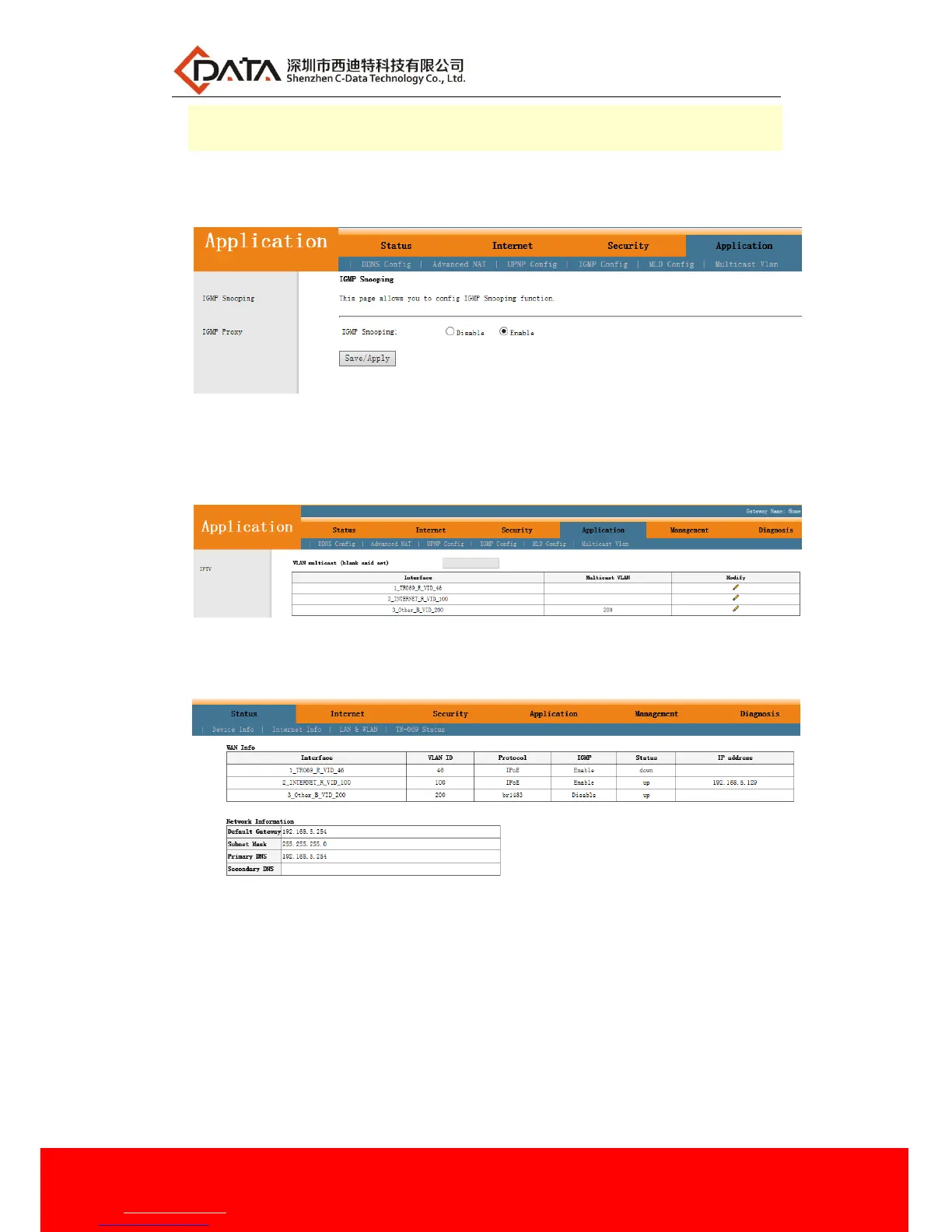

Mode select to Bridge. Check Enable Vlan,Vlan ID input 200. Service Mode select Other.Bind port
click Port_2.
2. Config IGMP mode in ONU web
Click Application IGMP Config IGMP Snooping. Enable IGMP Snooping.
3.Configure multicast vlan on ONU web
Click Application Multicast Vlan 3_Other_B_VID_200 Modify. Input 200 behind VLAN
multicast(blank said set).
4.Check ONU multicast wan status
Click StatusInternet Info
----end
5.7.3 Configure Gateway ONUHGUInternet Service--Broadcom Solution
premise condition
OLT connect to uplink device and open internet service
OLT have created vlan for internet
OLT have configured GE port vlan
OLT have configured PON port vlan
ONU have registered
