C.T.M. HS-588 5 series User Manual

Instruction Booklet5-Series
13

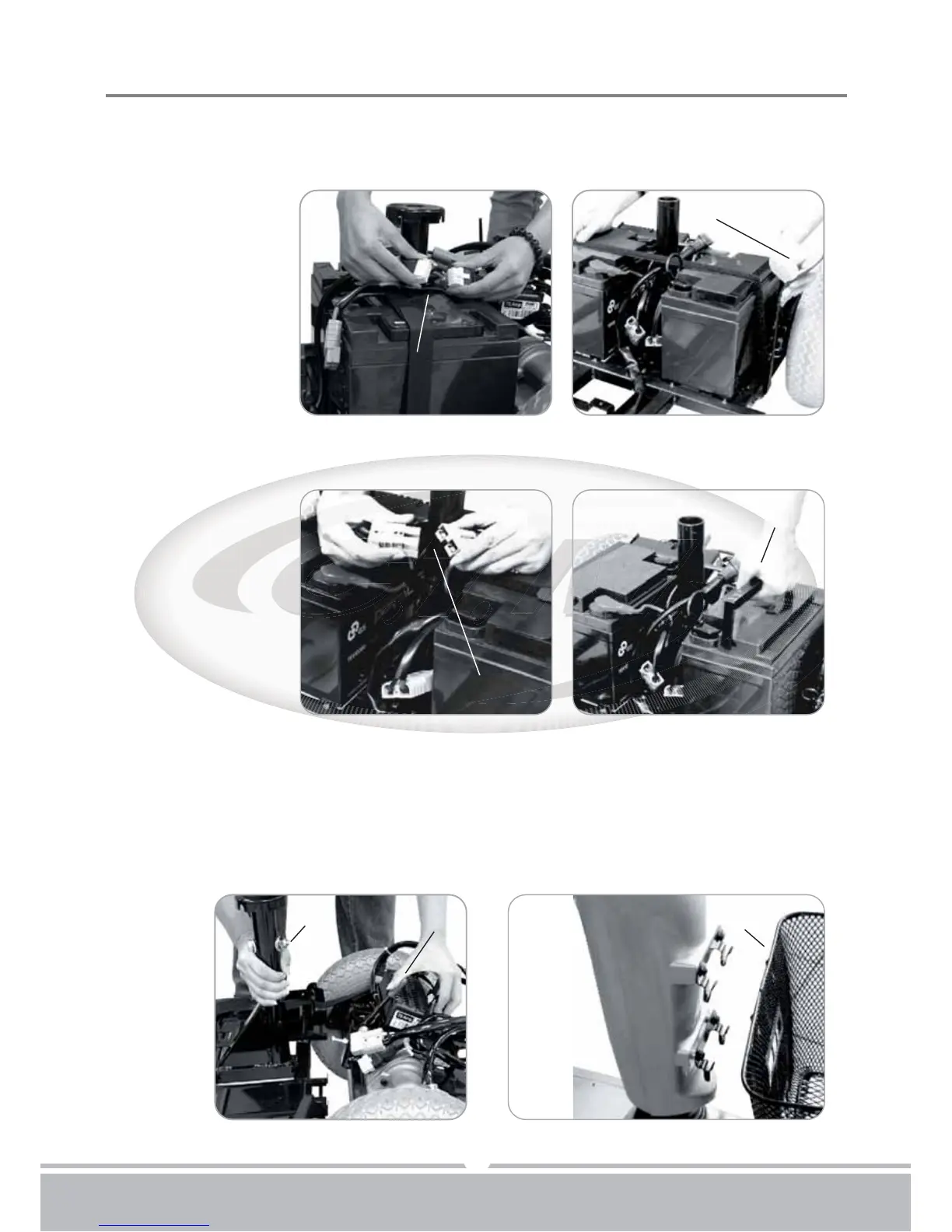

Detach the front and rear sections by holding the Seat Post (V) with one hand and the
other hand pushing the release lever to the rear of the scooter. Lift the seat post to
separate the Front Frame Assembly (W) from the rear frame assembly. (See Fig. 25)
Disassemble Front Basket (X). (See Fig. 26)
Figure 25
Figure 25
Figure 26
Figure 26
Figure 23
Figure 23
Figure 24
Figure 24
Unplug both Battery Cables (T) and remove the Batteries (U).(See Fig. 23 & 24)
(U)
(T)
(V)
(W)
(X)
Figure 21
Figure 21
Figure 22
Figure 22
Detach the Main Wiring Harnesse (R) from the scooter. (See Fig. 21)
Unstrap the Velcro Band (S) that holds the batteries. (See Fig. 22)
(S)
(R)

C.T.M. HS-588 5 series Specifications

General

Brand	C.T.M.
Model	HS-588 5 series
Category	Scooter
Language	English
