Instruction Booklet5-Series

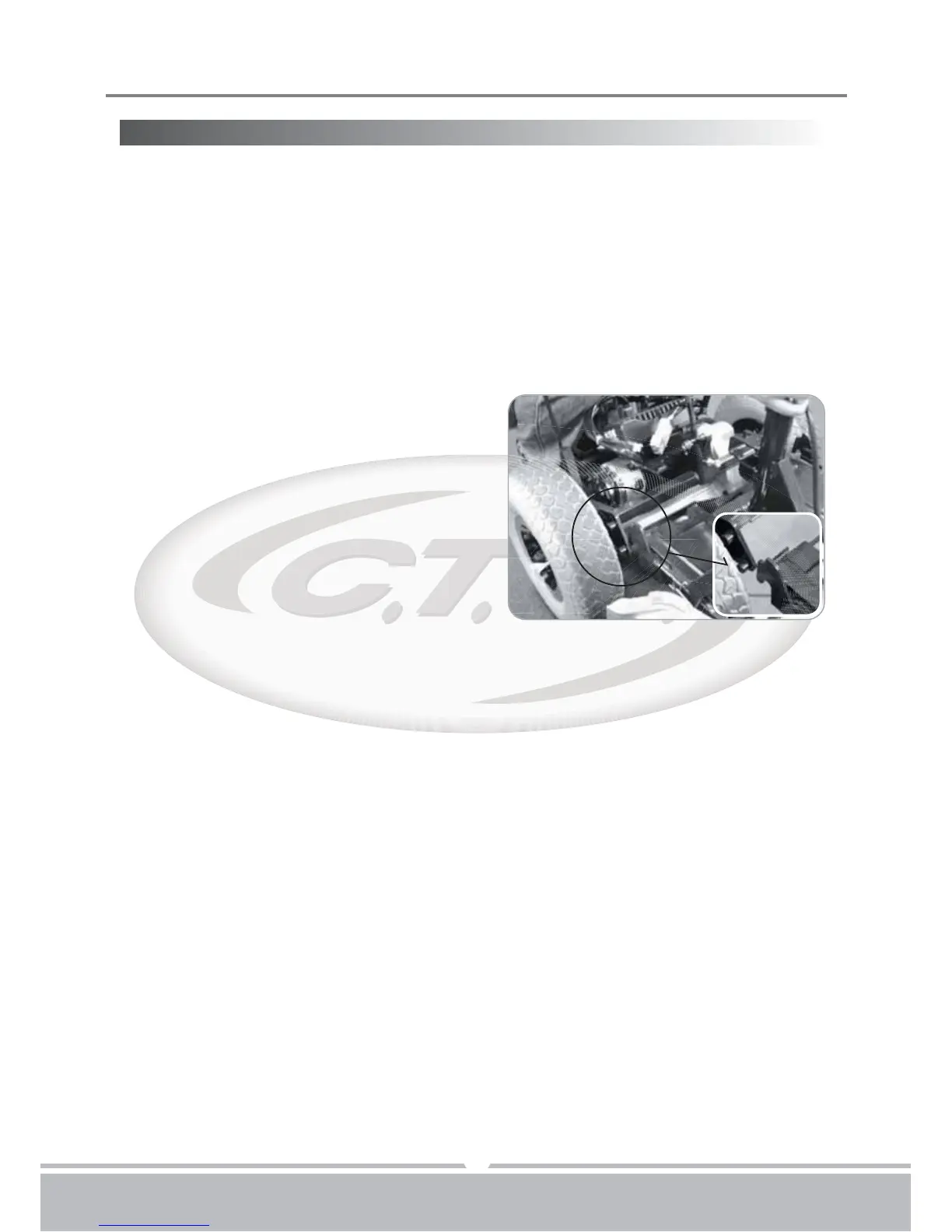

Figure 29
Figure 29
15
RE-ASSEMBLING YOUR SCOOTER
To assemble the scooter, you can repeat the disassembly directions in reverse.
A
bbreviated directions are given below. Refer to the figures on pages 12-13 to
locate the parts.
1.Using the tiller angle adjustment, unfold the tiller in an upright position. Place the front
basket on the tiller.
2.Hold the seat post and align the Curved Locking Brackets (Z) on the front frame
assembly with the bar on the rear frame assembly.
3.
While holding the seat post, slowly pivot the rear frame assemby forward until the release
lever locks.
4.Attach the main wire harness.
5.Place the two batteries and use the Velcro strap to secure them in place.
6.Attach the battery cable plugs.
7.Place the rear shroud on.
8.Attach all rear lighting harnesses.
9.Place the storage cover on.
10.Install the seat by pulling the seat rotation lever up to allow the seat to drop into the
locked position.
(Z)
