26 26

4 Conguration

Printer status line tab

On the "Printer status line" tab, the status parameters (widgets) can be select which are to be displayed on the printer

status line.

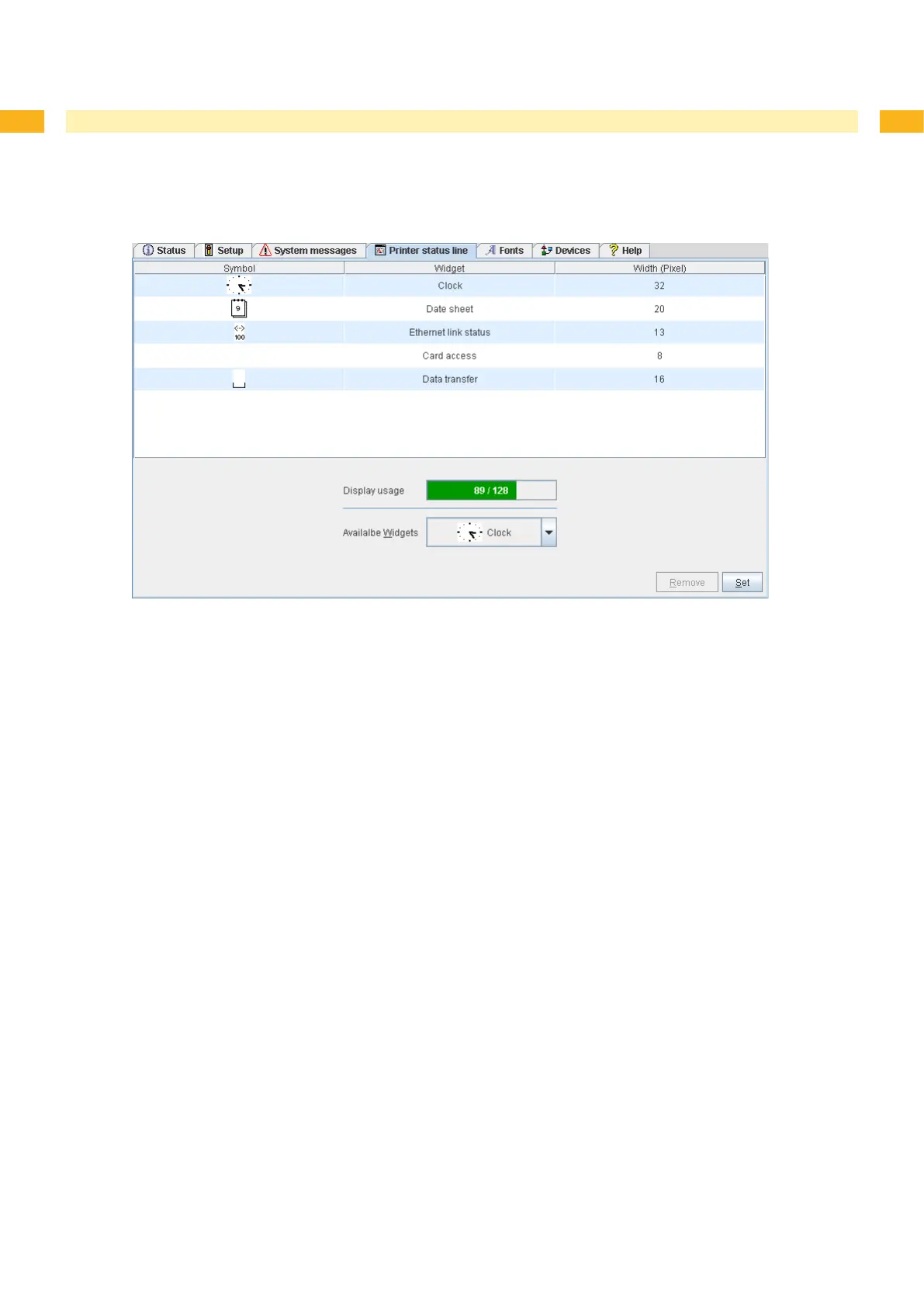

8 "Printer status line" tab on the printer websiteFig.

The symbol, the parameter designation and the width of the symbol in the display (in pixels) are displayed in the top

section of the tab. The entire width of all symbols in the display (e.g. 92 pixels) and the maximum width of the display

(e.g. 128 pixels) are displayed in the "Display usage" eld.

Adding a status parameter:

Select widget in pull-down menu. Note the text color:

pale green : Widget may be added

pale red : Widget may only be added, if another widget is deleted

black : Widget is already activated

Click Set.

Removing a status parameter:

Select parameter in the top section of the tab.

Click Remove.


