8.2 Device Dimensions
Gap sensor
& Reective sensor
Printhead
Tear-off edge
Cut edge
Feed direction

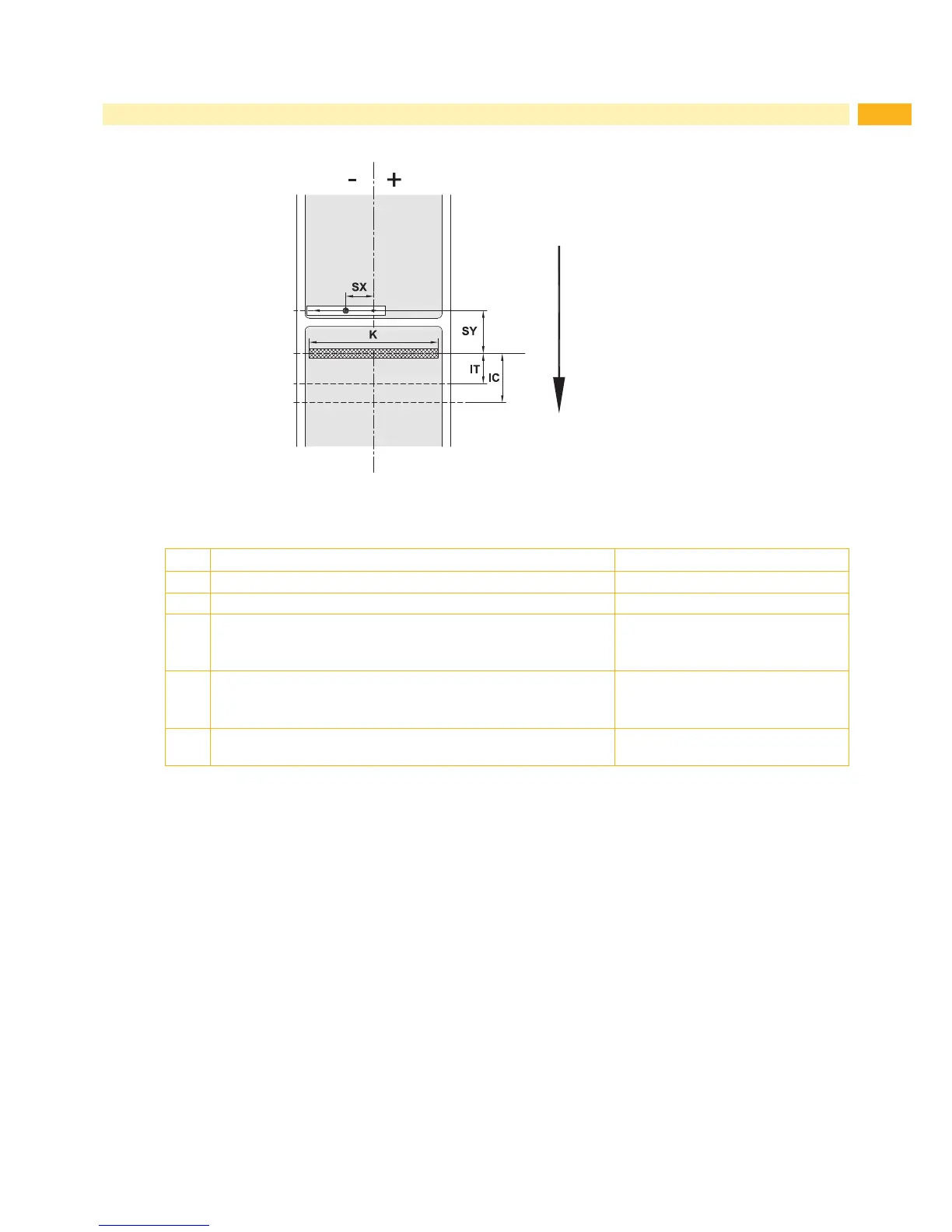

Figure 19 Device dimensions
Dim. Designation Dim. in mm
IT Distance printhead - tear-off edge 13,7
IC Distance printhead - cut edge 20,3
K Print width
203 dpi
300 dpi
108,0
105,7
SX
Distancegap/reectivesensor-middleofpapertrack
i.e.permissibledistanceofreexorcut-outmarksfromthemiddle
of the material
-58 - 0
SY
Distancegap/reectivesensor-
printhead
44,9
Table 9 Device dimensions
