5 Test Functions
5.8 Label Prole
The Label prole function carries out a longer label advance. It saves the values measured by the label sensor
here and then prints them out in a diagram.
The printout is used to check label detection in conjunction with the optical properties of the label medium.
The printout occurs using the heat level and print speed specied in the Setup > Print param. menu.
Notice!
The printout of the diagram occurs without taking the label gaps into consideration. This is why endless
media are most suitable for the printout.
Select the label sensor to be tested in the menu Setup > Print param. "4.1.3" on page 13.
Load the label medium to be tested into the printer.
Start Ofine menu.
Select Test > Label prole.
The printer performs a longer label advance. The label sensor measures the transparency/reection capacity of
the label material here. The message Insert appears in the display once the advance is complete.
Insert printable medium (labels, endless paper) which extends across the entire printing width.
If the printout is to occur using thermal transfer printing, insert transfer ribbon with the maximum width.
Start the diagram printout with Continue.
The printout can be cancelled with
.
Mon Sep 26 13:26:04 2011
EOS1/300
Firmware V4.02 (Sep 26, 2011) - #170110417590
Peripheral device : None
50 mm/s - Gap Sensor 32 (23-46), Max 704
71.35mm - σ² 0.002mm²
1
2
3
4
5

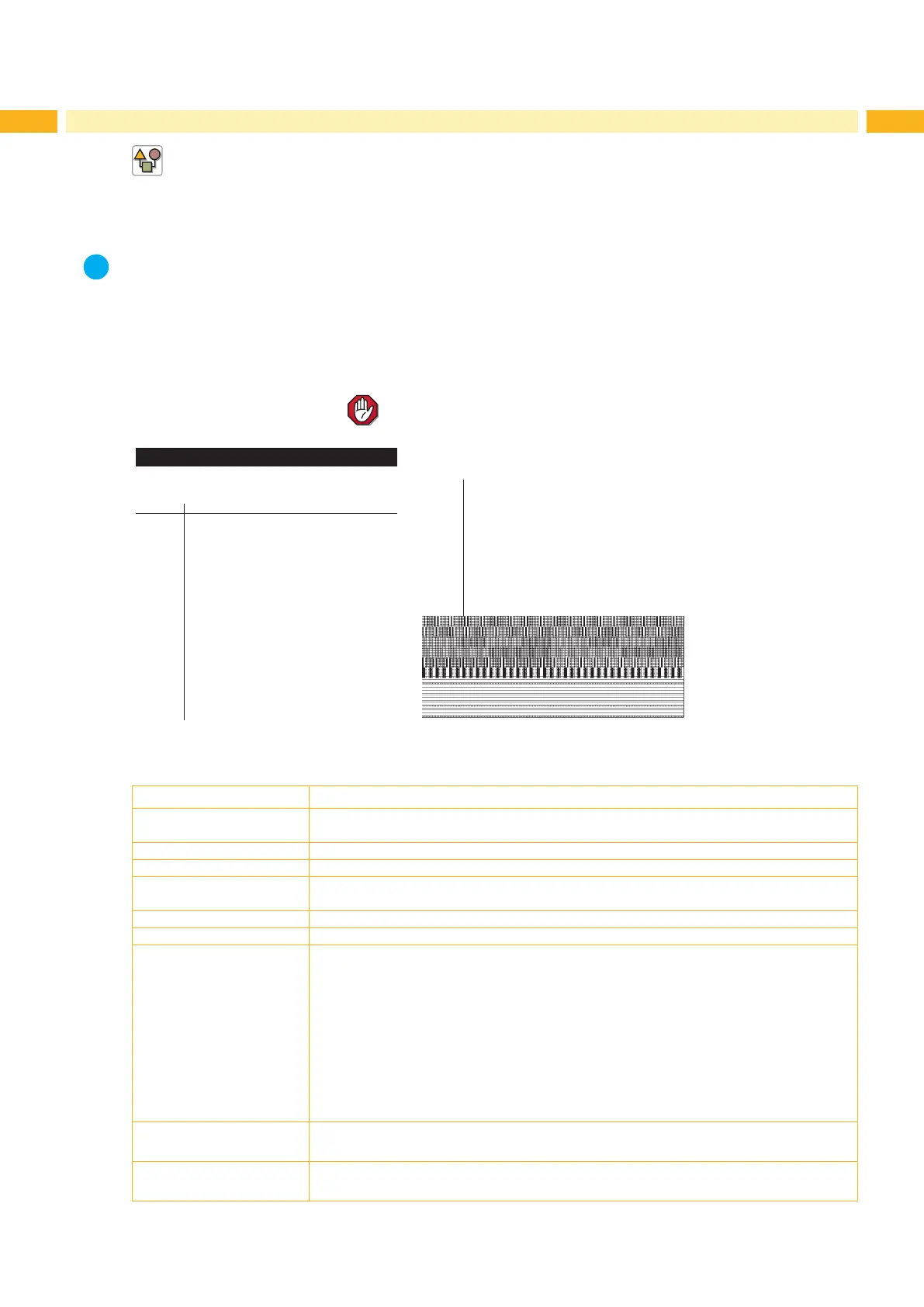

Fig. 16 Label prole
No. Information
1 Date and time of the printout
Device type
Version and creation date of the rmware
Serial number of the PCB CPU
Firmware version and serial number of the label sensor
2 Coordinate in the direction of paper ow at which the label start was detected
3 Type of peripheral device connected
4 Print speed, method of label detection (Gap sensor / Bottom-reect sensor)
and service information of label adjustment
5 Average value and variation of label distances
Table 15 Information in Label prole
