2.5 Replacing the Control Panel
4
3
5
1
2

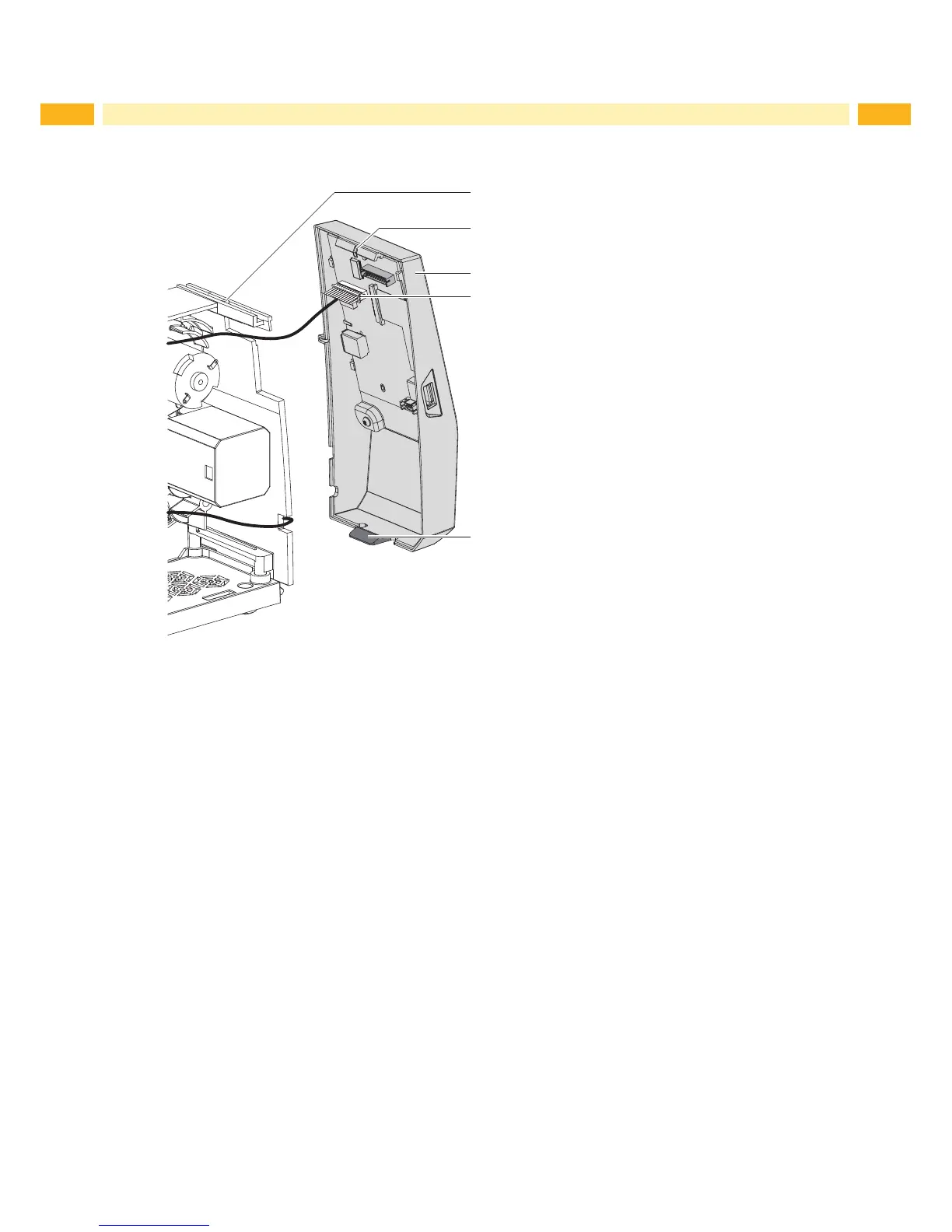

Fig. 5 Removing / mounting the control panel
Removing
Remove the casing.
Unlock the control panel (3) at the latch (5) swing it away from the printer and remove it by lifting.
Unplug the connector of the display cable (4).
Mounting
Re-connect the cable (4).
Hook the slot (2) of the cover into the guide (1) and press the control panel against the printer until the latch (5)
clicks into place.
Mount the casing.
