CAB EOS5 - Replacing the Transport Module

11
2.6 Replacing the Transport Module
1
3
4
2

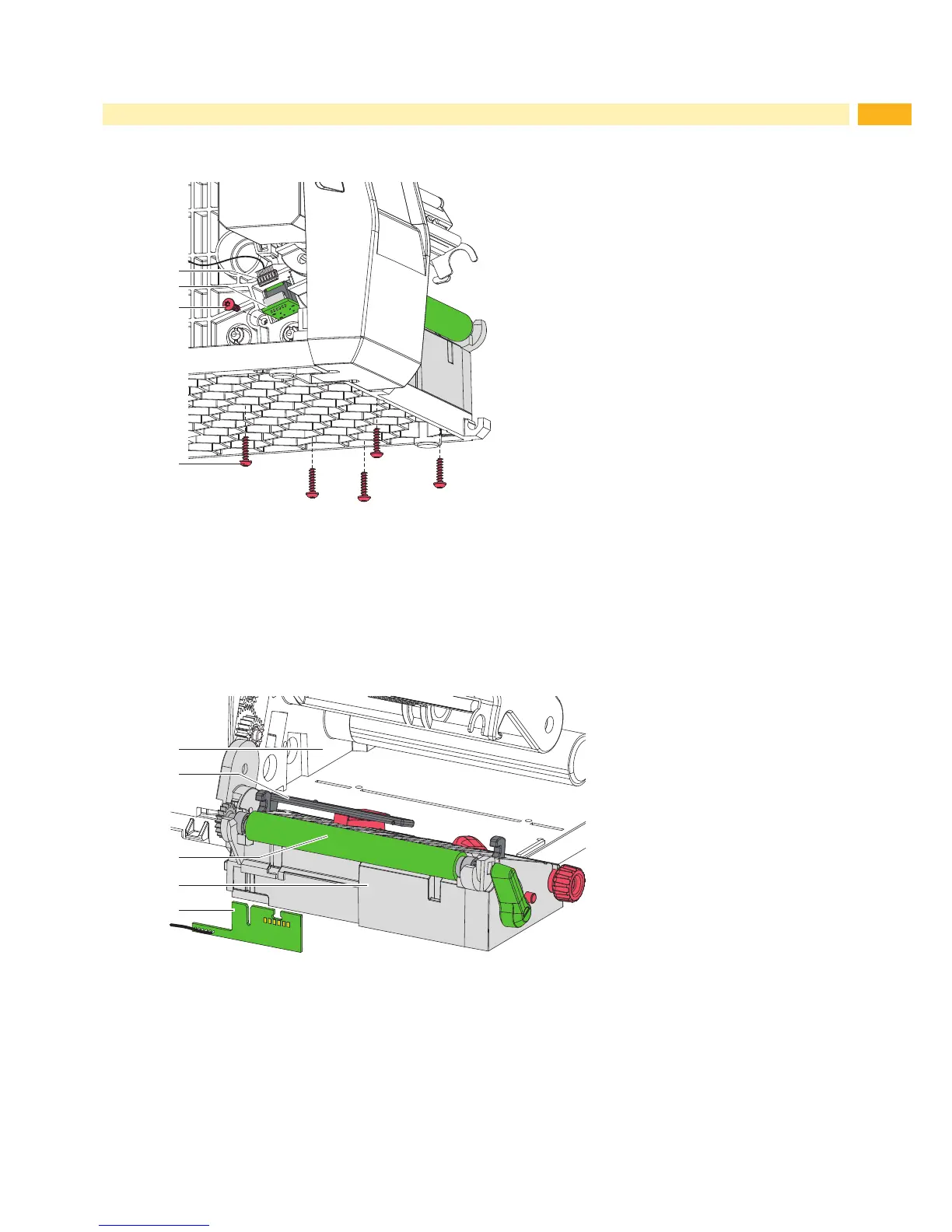

Fig. 6 Removing / mounting transport module 1
Removing
 Remove the tear-off plate/cutter.
 Remove the casing.
 Unplug the connector (1) of the label sensor (2).
 Move the label sensor as far as possible to the operator’s side  Operator’s Manual.
 Remove screw (3) and 5 screws (4).
5
6
8
2
7
Fig. 7 Removing / mounting transport module 2
 Remove control panel.
 Remove the transport module (7) with the printing roller (6) by tilting from the chassis (5).
 Pull the cutter connection cable (8) downward out of the transport module (7).
Mounting
 Mount the assembly units in reverse order.
2 Replacing Assembly Units
