CAB HERMES Q Series Assembly Instructions

20 20
4.5 Setting the Feed Path of the Transfer Ribbon
Transferribbonwrinklingcanleadtoprintimageerrors.Transferribbondeectioncanbeadjustedsoastoprevent
wrinkles.
i
Note!
A maladjustment of the head locking system may also cause ribbon wrinkling
 Check rst the setting of the head locking system ( 4.2 on page 18).
2
1
3

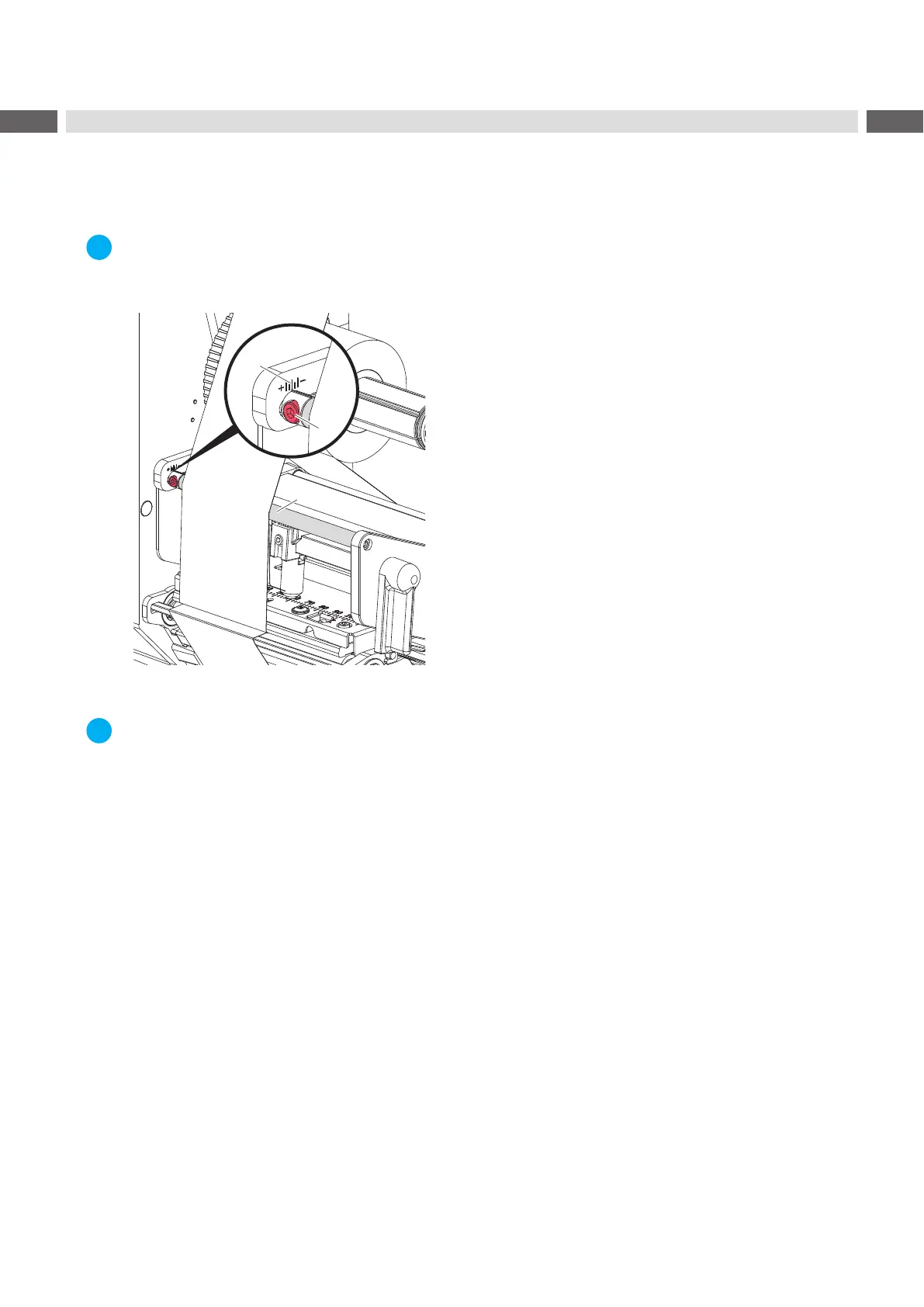

Figure 20 Setting the feed path of the transfer ribbon
i
Note!
The adjustment is best carried out during printing.
1. Read current setting on the scale (1) and record if necessary.
2. Turn screw (2) with Allen key and observe the behavior of the ribbon.
In the + direction, the inner edge of the transfer ribbon is tightened, and the outer edge is tightened in the
- direction.
