Bridge Device View
Bridge Interface Icon
This icon represents the Bridge interface for the BdgSyn332xS model type. It
identify the type of interface or port and provide statistical information.
Figure 2-7 provides an example of the Bridge Interface icon, its Icon Subviews
menu, and its labels/double-click zones.

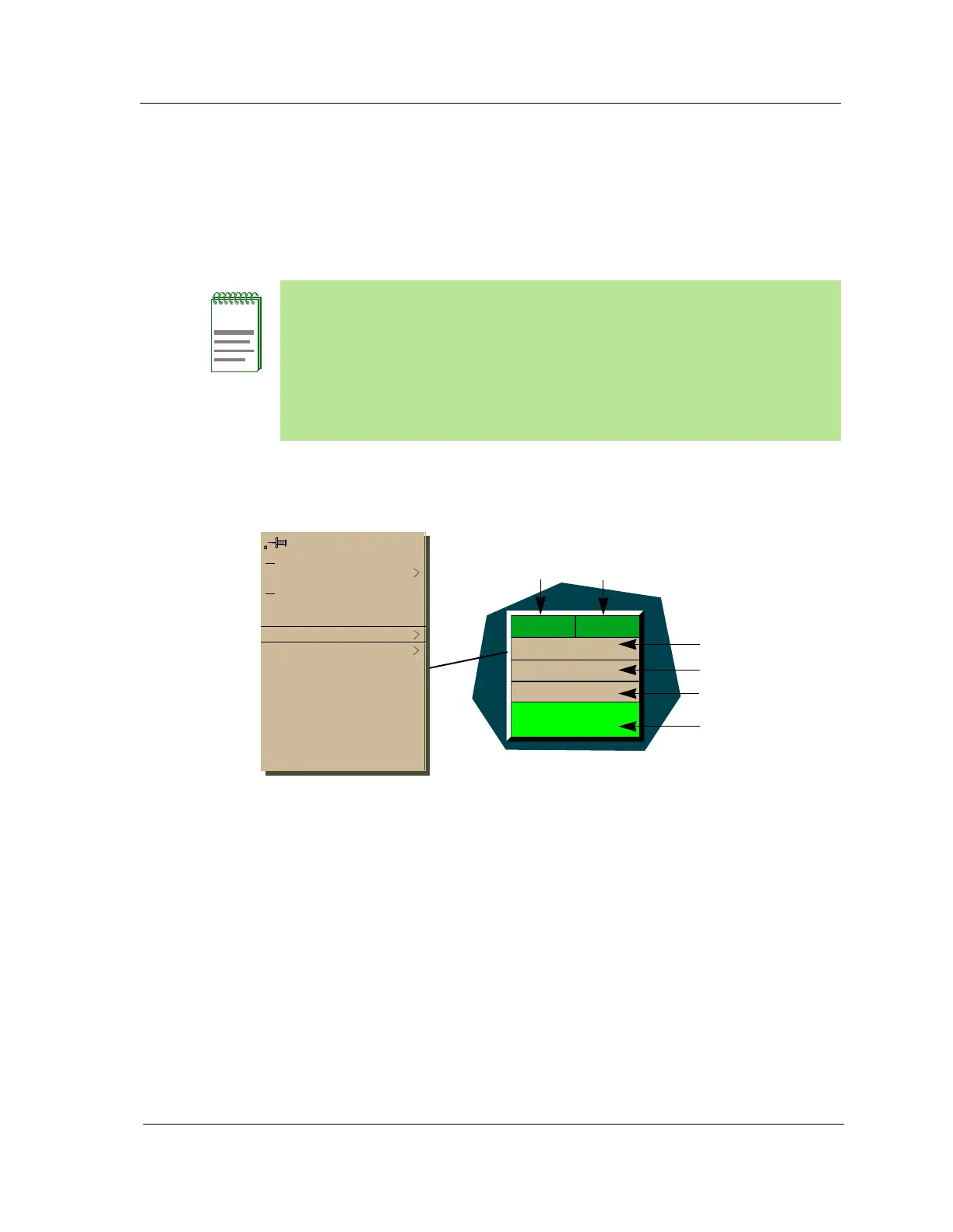

Figure 2-7. Interface Icon
a. Interface Number Label/Device Topology View
b. Administrative Status Label/Interface Status View
c. Port Type Label/Interface Configuration View
d. MAC Address Label
e. Network Information Label/Network Information Panel
f. Gauge Label/IfPort Performance View
NOTES
The callouts (a through f) displayed in the illustration below identify the
label and the view to which it provides double-click access. Example: MAC
Address Label/CSIdtrInterface Port Model Information View displays the
MAC or physical address and provides double-click access to the
CSIdtrInterface Port Model Information View.
The menu displayed in the illustration is the Icon Subviews menu for that
Interface icon.
ON
Ethernet
0:0:1D:17:2F:3C
0
1
IP Address
(a) (b)
(c)
(d)
(e)
(f)
Close Alt+F4
Navigate
A
larms
Performance
Notes...
Utilities
DevTop
Detail
IF Status
IF Configuration
IF Address Translation Table
Network Information Panel
Thresholds
Model Information
