Section 1

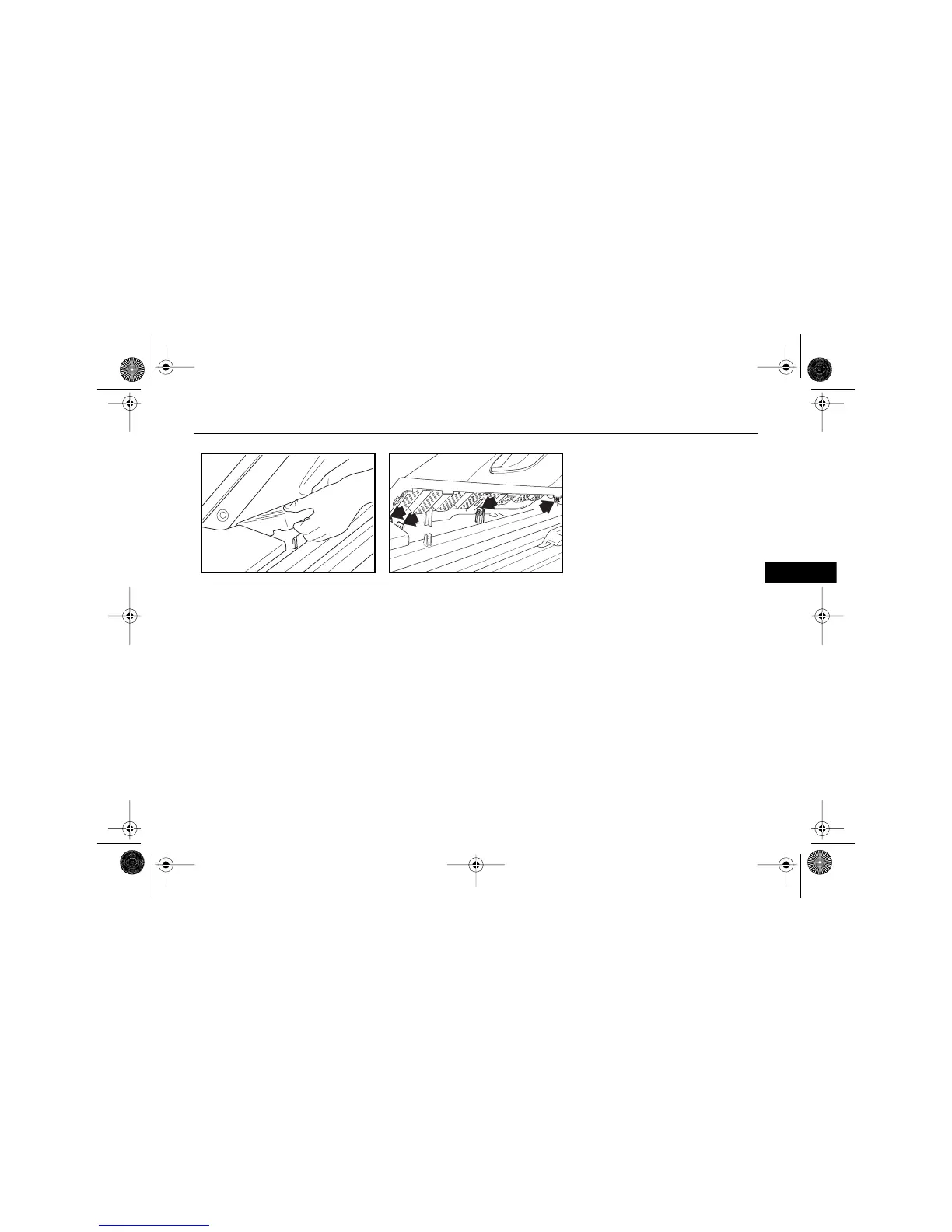

To clean a drain grate, first remove
the cargo panels. See "Rear Area
Cover Panels" later in this section.
Then pull the grate out by the
edges and flush it and the drain
with clean water.
When replacing the drain grate,
line up the clips on the vehicle
with the slots in the grate, then
push the grate down firmly.
The grate should clip into place.
Do not force it. Realign the clips
with the slots in the grate and try
installing it again.
Side Rail Channels
The side rail channels, located on
top of both sides of the cargo area,
may need to be flushed with clean
water to clear away any debris
collecting inside of them. Be
careful not to damage the rails
when loading cargo.
