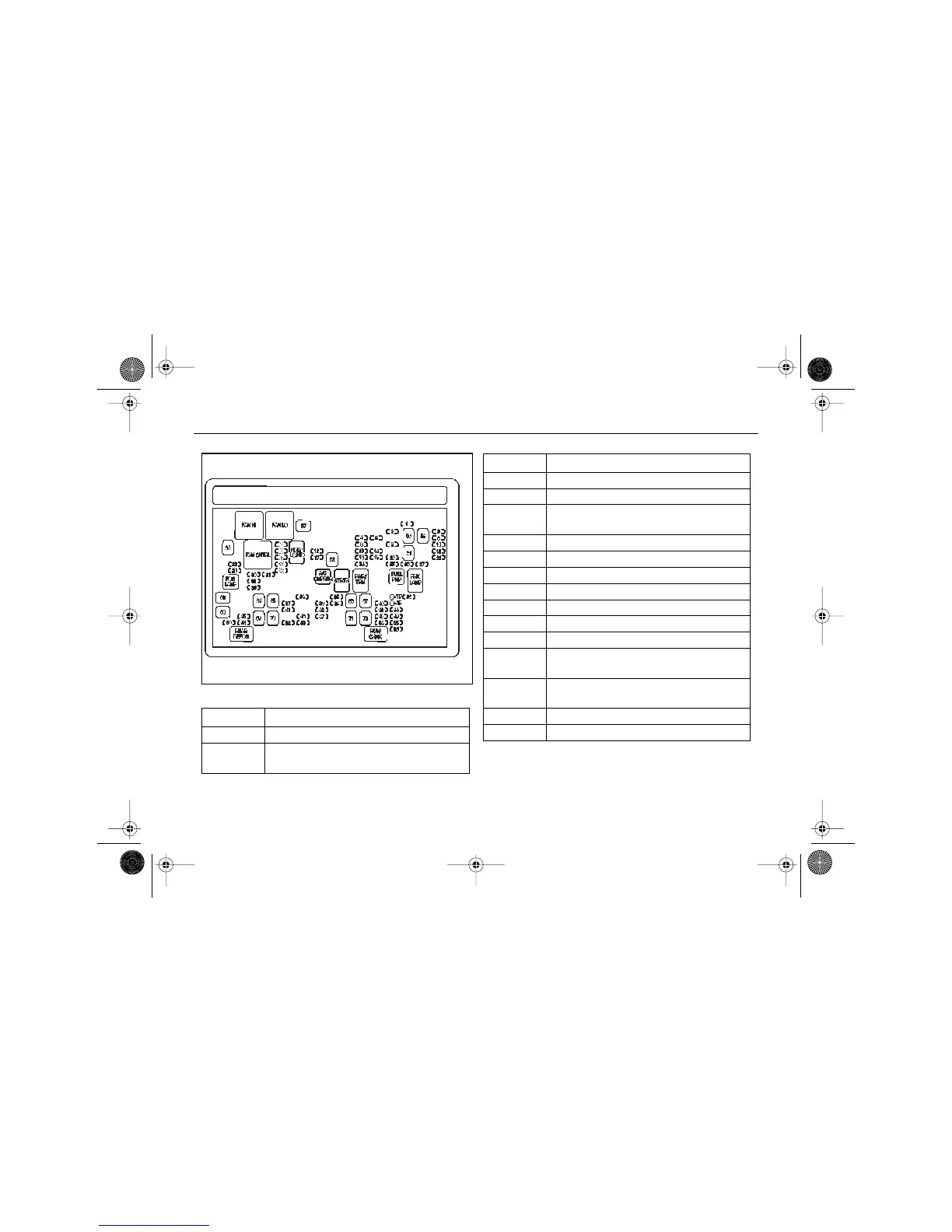

Underhood Electrical Center
Fuses Usage
1 Right Trailer Stop/Turn Signal Lights
2 Electronic Stability Suspension Con-
trol; Automatic Level Control Exhaust
3 Left Trailer Stop/Turn Signal Lights
4 Engine Controls
5 Engine Control Module; Throttle
Control
6 Not Used
7 Front Washer
8 Oxygen Sensors
9 Antilock Brake System 2
10 Trailer Back-up Lights
11 Left Low-Beam Headlight
12 Engine Control Module (Battery)
13 Fuel Injectors; Ignition Coils
(Right Side)
14 Transmission Control Module
(Battery)
15 Back-up Lights
16 Right Low-Beam Headlight
Fuses Usage
