Instrumentation and Controls
. . . 160

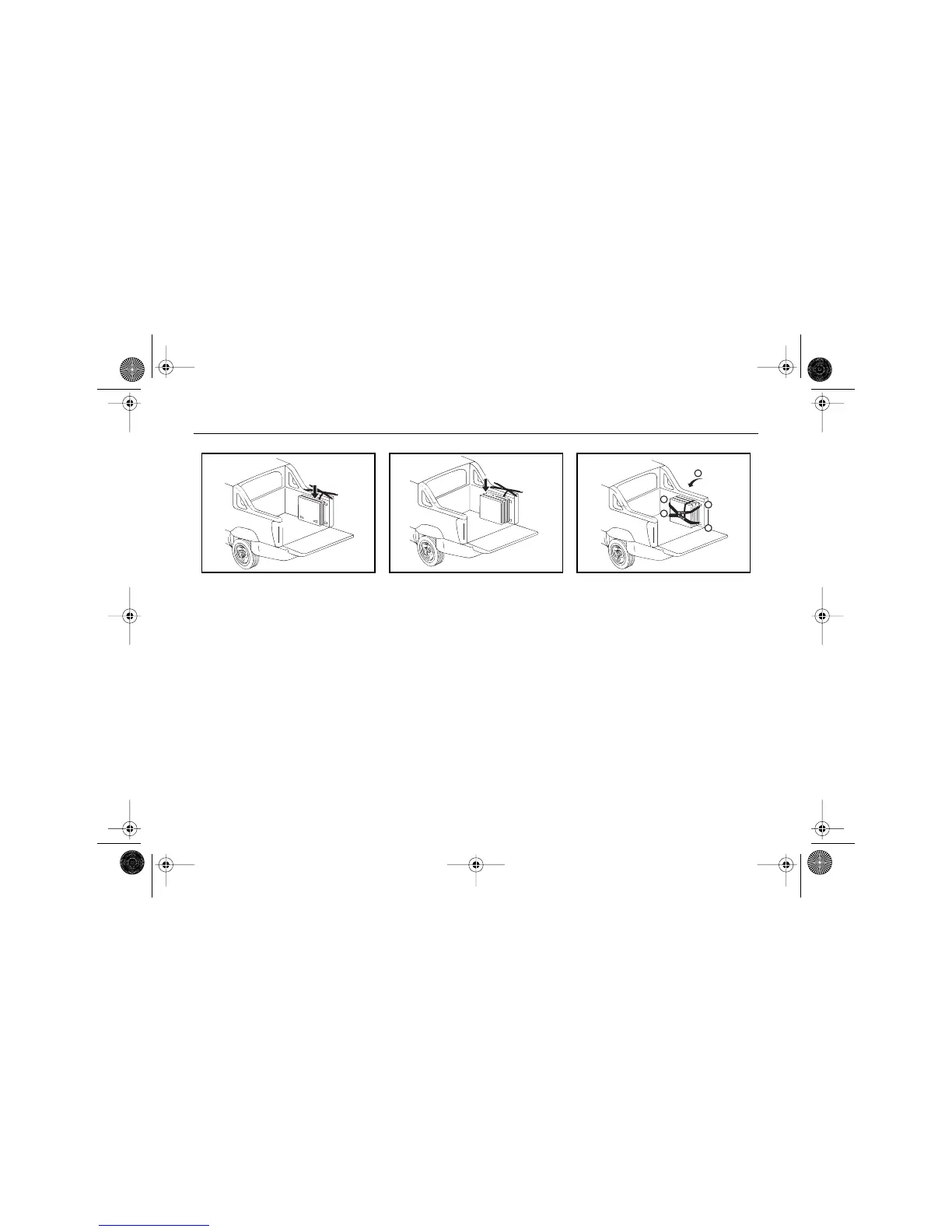

6. Load cargo panel marked 2
with the latches down and
facing the side of the cargo
area.
7. Load cargo panel marked 3
with the latches up and facing
the side of the cargo area.
8. Pull the unsecured strap ends
over and around the panels
into the cargo box .
9. Fasten the four strap clips .
2
3
A
B
B
B
B
