Section 4

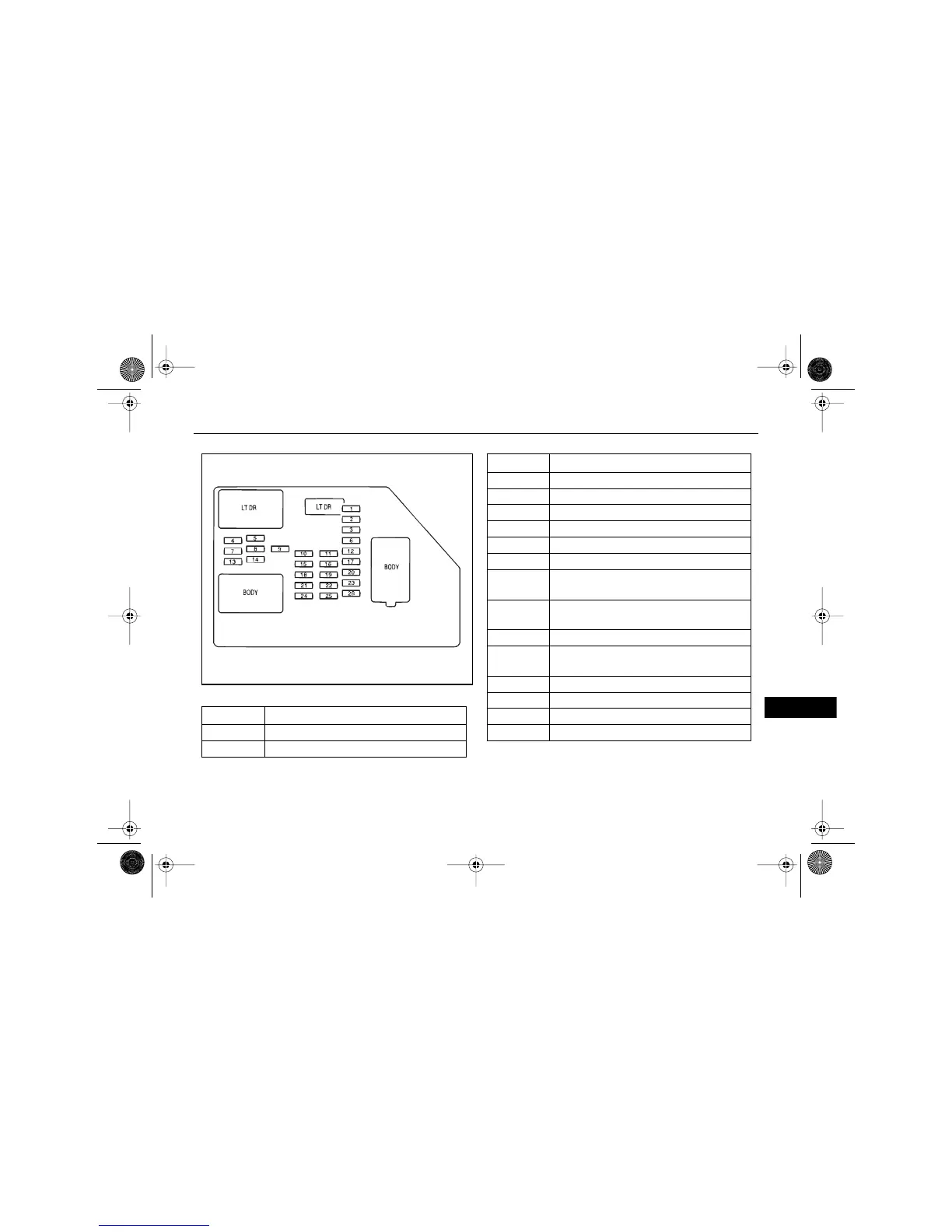

Block
Fuse Usage
1 Not Used
2 Not Used
3 Steering Wheel Controls Backlight
4 Driver Door Module
5 Dome Lights; Left Turn Signal
6Left Turn Signal; Stoplight
7 Instrument Panel Back Lighting
8 Right Turn Signal; Stoplight
9 Passenger Door Module; Driver
Unlock Function
10 Power Door Lock 2 (Unlock Func-
tion)
11 Power Door Lock 2 (Lock Function)
12 Stoplights; Center High-Mounted
Stoplight
13 Not Used
14 Power Mirrors
15 Body Control Module
16 Accessory Power Outlets
Fuse Usage
27
28
30
29
