Cadillac XTS - Instrument Panel Fuse Block

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
VEHICLE CARE 251
Relays Usage
10 Cooling fan
11 Headlamp washer
13 Cooling fan
14 Low-beam headlamps
15 Run/Crank
17 Rear window defogger
Instrument Panel Fuse
Block

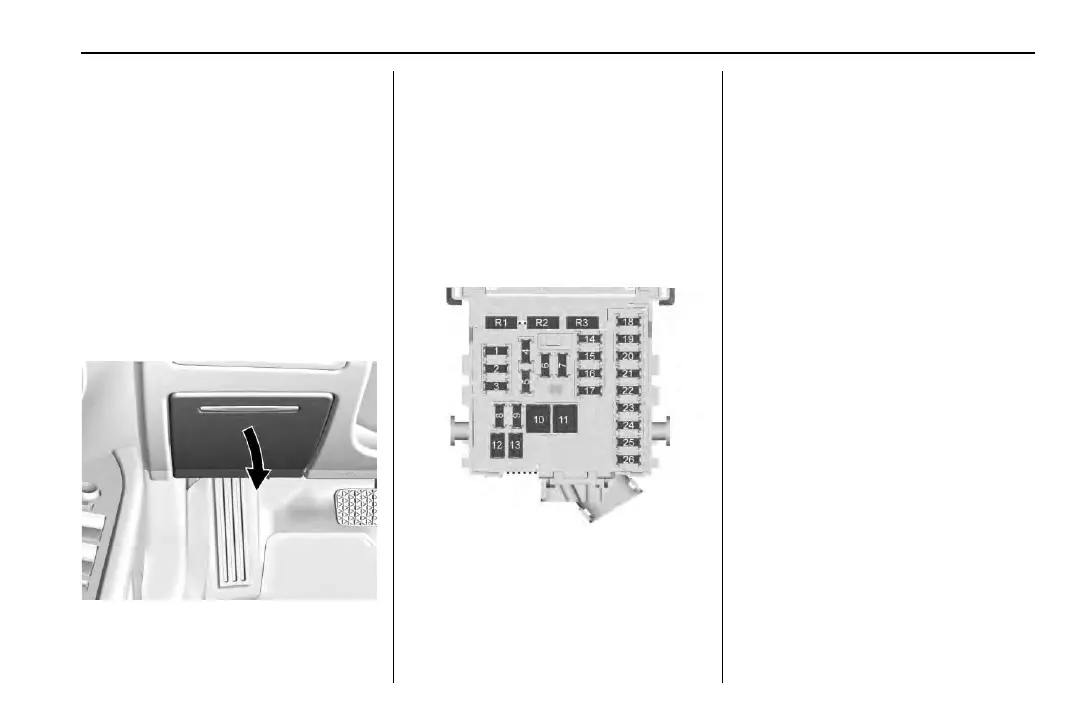

The instrument panel fuse block is in
the instrument panel, on the driver
side of the vehicle. To access the
fuses, open the fuse panel door by
pulling down at the top.
Press in on the sides of the door to
release it from the instrument panel.
Pull the door toward you to release it
from the hinge.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.
Fuses Usage
1 Wireless charger
module
Fuses Usage
2 Body control
module 7
3 Body control
module 5
4 Radio
5 Infotainment center
stack displays/
Head-up display/
Instrument cluster/
Rear seat
entertainment
6 Power outlet 1
7 Power outlet 2
8 Body control
module 1
9 Body control
module 4
10 Body control
module 8
11 Front HVAC blower
12 Passenger Seat
13 Driver seat
