Caillau Clic - Disassembly for Spring, Axis, Jaw Replacement

FICHE D’INSTRUCTION TECHNIQUE
N°
: V 54 1006
PINCE PNEUMATIQUE CLIC COMPACTE
CLIC PNEUMATIC PLIER
S
CLIC DRUCKLUFTZANGE
PINZA PNEUMATICA CLI
C
PINZA NEUMATICA CLIC
Date : 07/11/2017
Indice
: C
Page 10/16

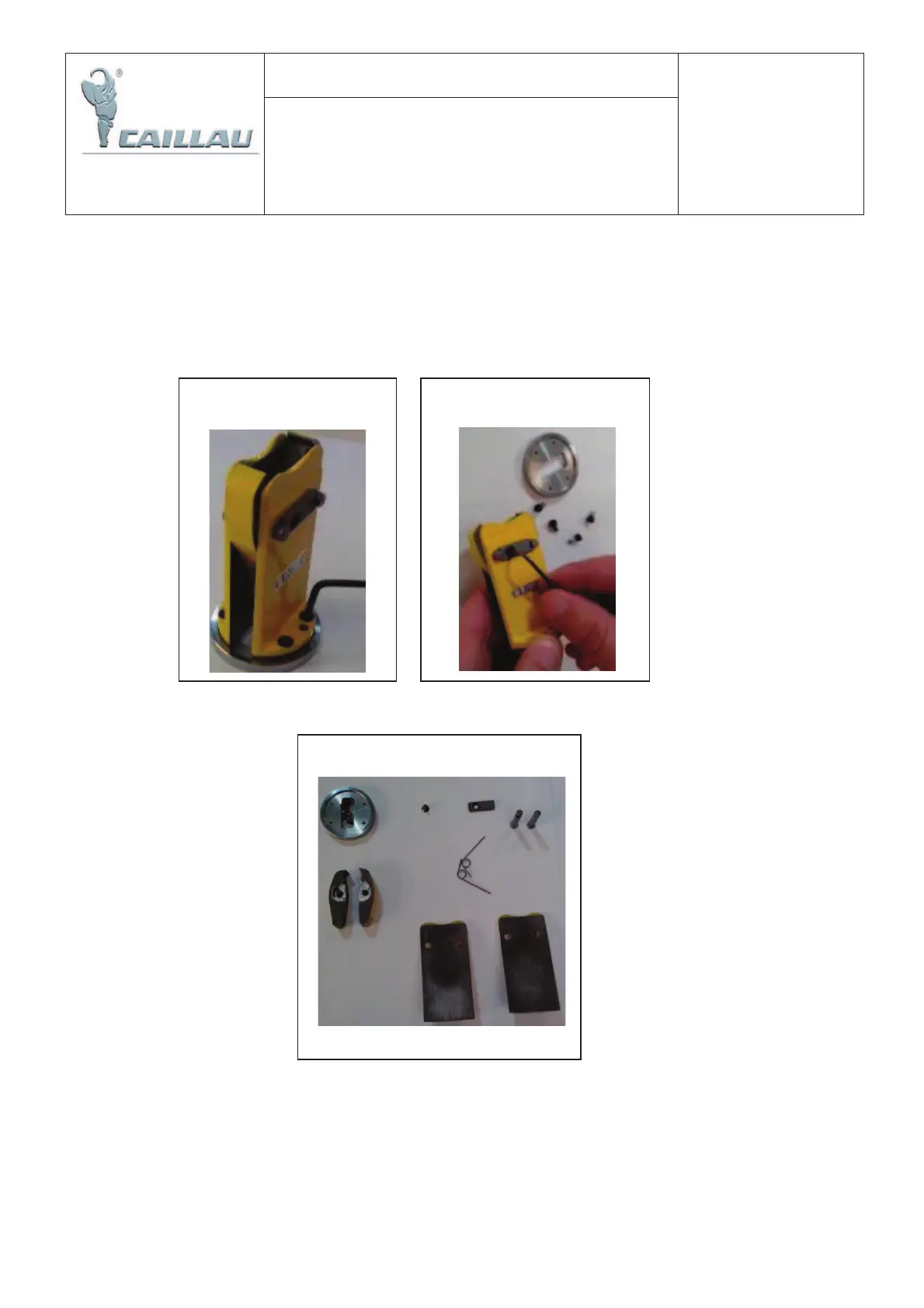

3.2. Replacement of springs, axes and jaws
3.2.1. Disassembly
Disconnect the pliers from the air supply before any operation.
Last step : Head components
Step 1 : Unscrew the head
from the flange mounting.
Step 2 : Remove the axes
Flange
mounting
Axes
Springs
Jaws
Flanges
Holding plate
Screw
