Caillau Clic - Replacement of Valve Block

FICHE D’INSTRUCTION TECHNIQUE
N°
: V 54 1006
PINCE PNEUMATIQUE CLIC COMPACTE
CLIC PNEUMATIC PLIER
S
CLIC DRUCKLUFTZANGE
PINZA PNEUMATICA CLI
C
PINZA NEUMATICA CLIC
Date : 07/11/2017
Indice
: C
Page 12/16

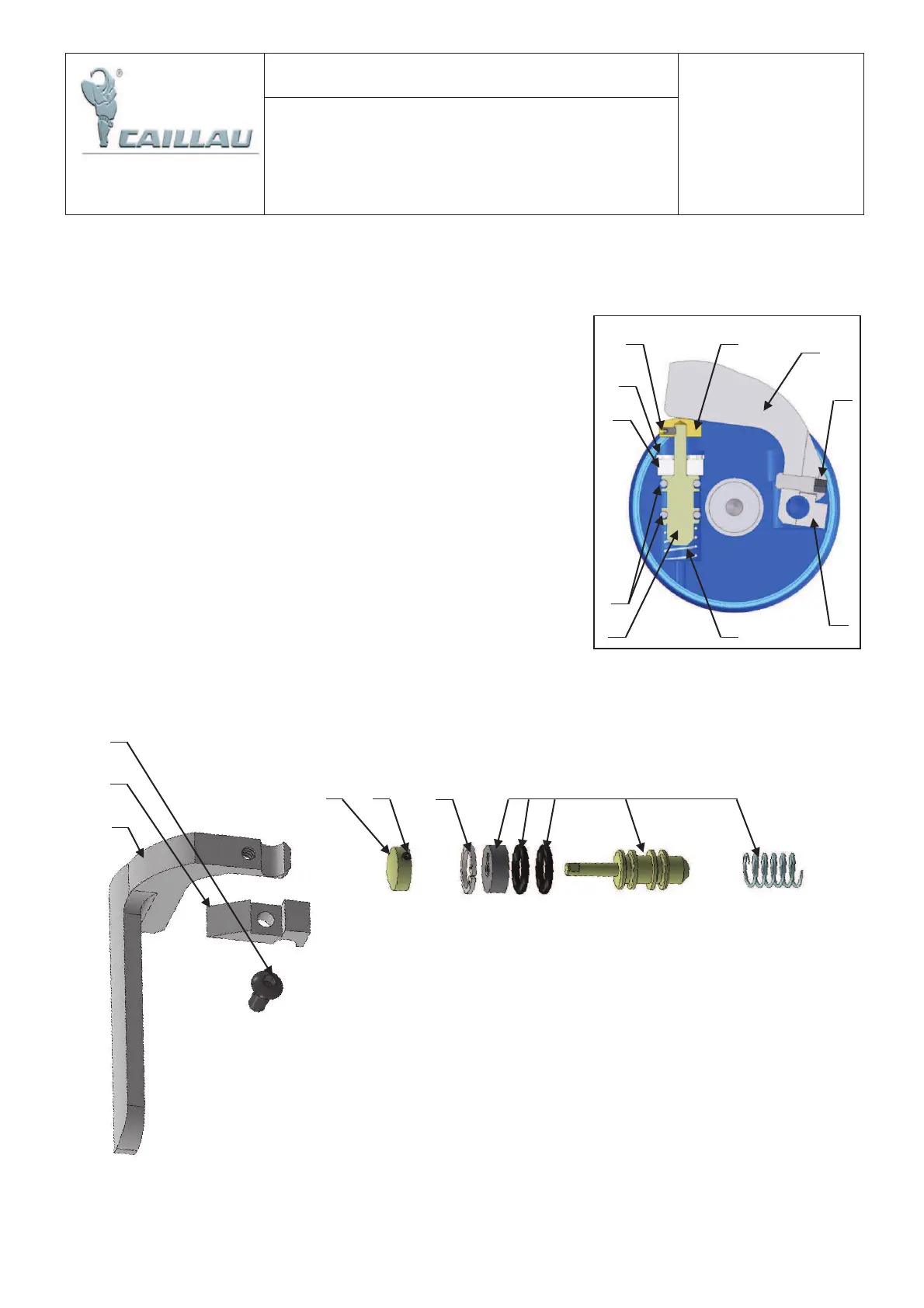

3.3. Replacement of the valve block
Disconnect the pliers from the air supply before any repair operation.
· Disconnect the pliers from the compressed air system
· Unscrew the M4 X8 screw (1)
· Remove the flange (2) and the trigger (3)
· Unscrew the screw (4) and remove the push button(5)
· Remove the circlips (6)
· Remove parts (7) (8) (9) and (10)
· Clean the bore.
· Fit a valve repair kit.
· Remount the circlips
· Refit the trigger (3) and the flange (2)
· Tighten the screw (1)
(1)
(2)
(3)
(5)
(4)
(6)
(1)
(2)
(3)
(4)
(5)
(6)
(8)
(10)
(9)
(7)
(8), (10)x2, (9), (7)
