3. MAINTENANCE
3.1. Periodic check-up of the jaws
Measure the closing dimension of the jaws, in closed position, with the measuring tool
centred on the jaws. The critical values before new jaws must be ordered are given in the
table below: do not use the pliers beyond the not-to-exceed dimensions.
Closing of the jaws
Critical dimension: new jaws
must be ordered
Not
-to-exceed dimension:
the
jaws must be changed
PO 7mm, straight head
7.4
7.6
PO 7mm, angled head
6.9
7.1
PO 4.7mm, straight head
5.1
5.3
PO 4.7mm, angled head
4.6
4.8
PO 3.0mm, straight head
3.4
3.6

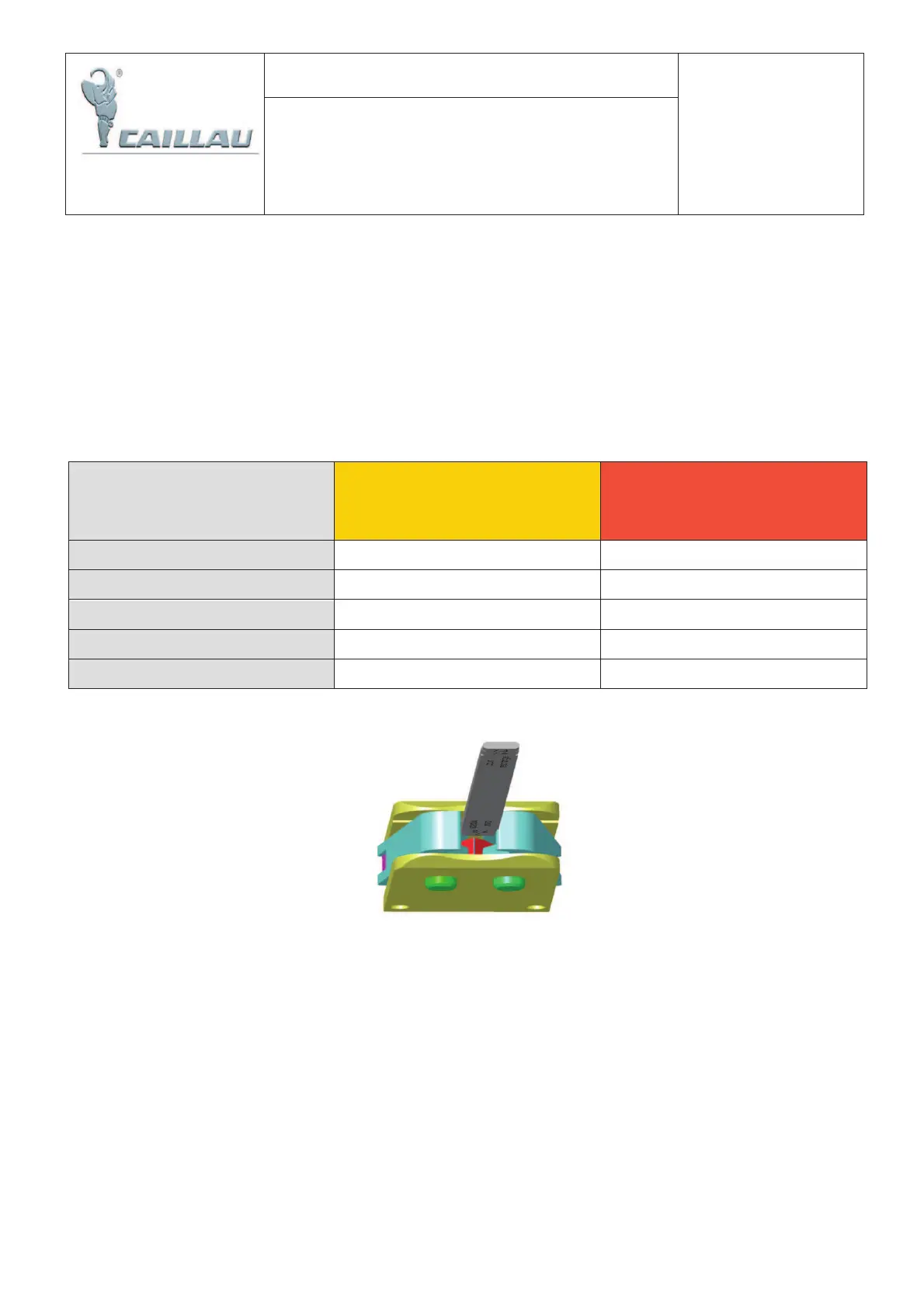

Example of measurement with a control pin
