OCKET REFERENCE GUIDE — 29

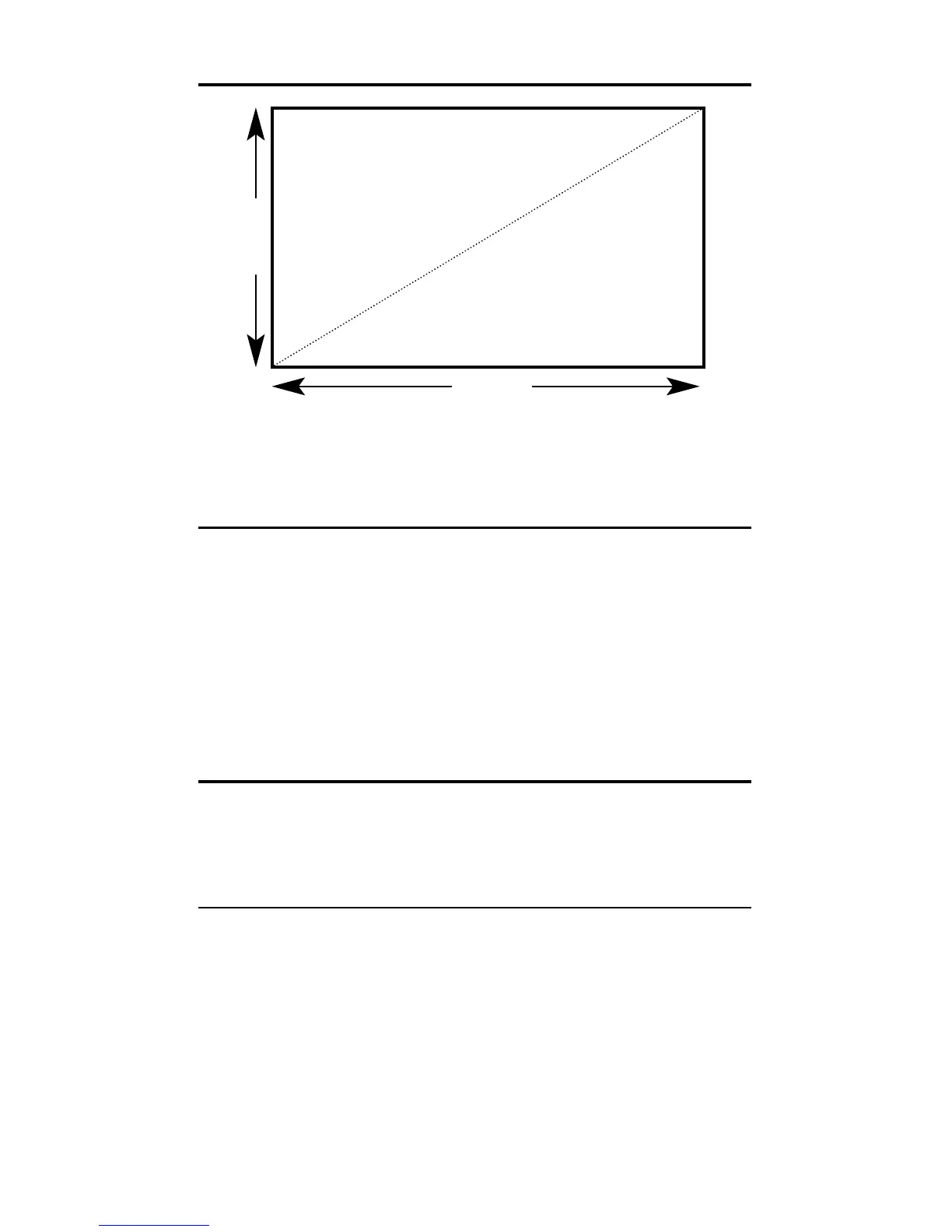

Squaring-Up a Foundation

Square-Up 15 Feet 6 Inch (Run) x 10 Feet

2 Inch (Rise):

KEYSTROKE DISPLAY

o o 0.

1 5 f 6 i R

RECR 15 PIES 6 PULG

1 0 f 2 i r

ALT 10 PIES 2 PULG

d DIAG 18 PIES 6-7/16 PULG

Pitch — Converting Roof Angle

Find the % Grade, Pitch Ratio/Slope and

Pitch in Inches if the roof angle is 30.25°:

KEYSTROKE DISPLAY

o o 0.

3 0 • 2 5 p PEND 30.25°

p PND% 58.31828

p DECL 0.583183

p PEND 7 PULG

10’ 2”

15’ 6”

Square-Up (Diagonal)
