CALIENT S Series Hardware User's Guide

S320 OCS Hardware User Guide
Doc. Part No. 460167-00
May 27, 2015
Rev. B7
Page 38 of 46
5.2.1.2 Connection Procedure
The following procedure describes how to properly connect the combination serial cable
provided with version 2 of the S320 OCS:
1. Connect the USB-to-DB9 serial cable to the RJ45-to-DB9 adapter cable (Figure 13).

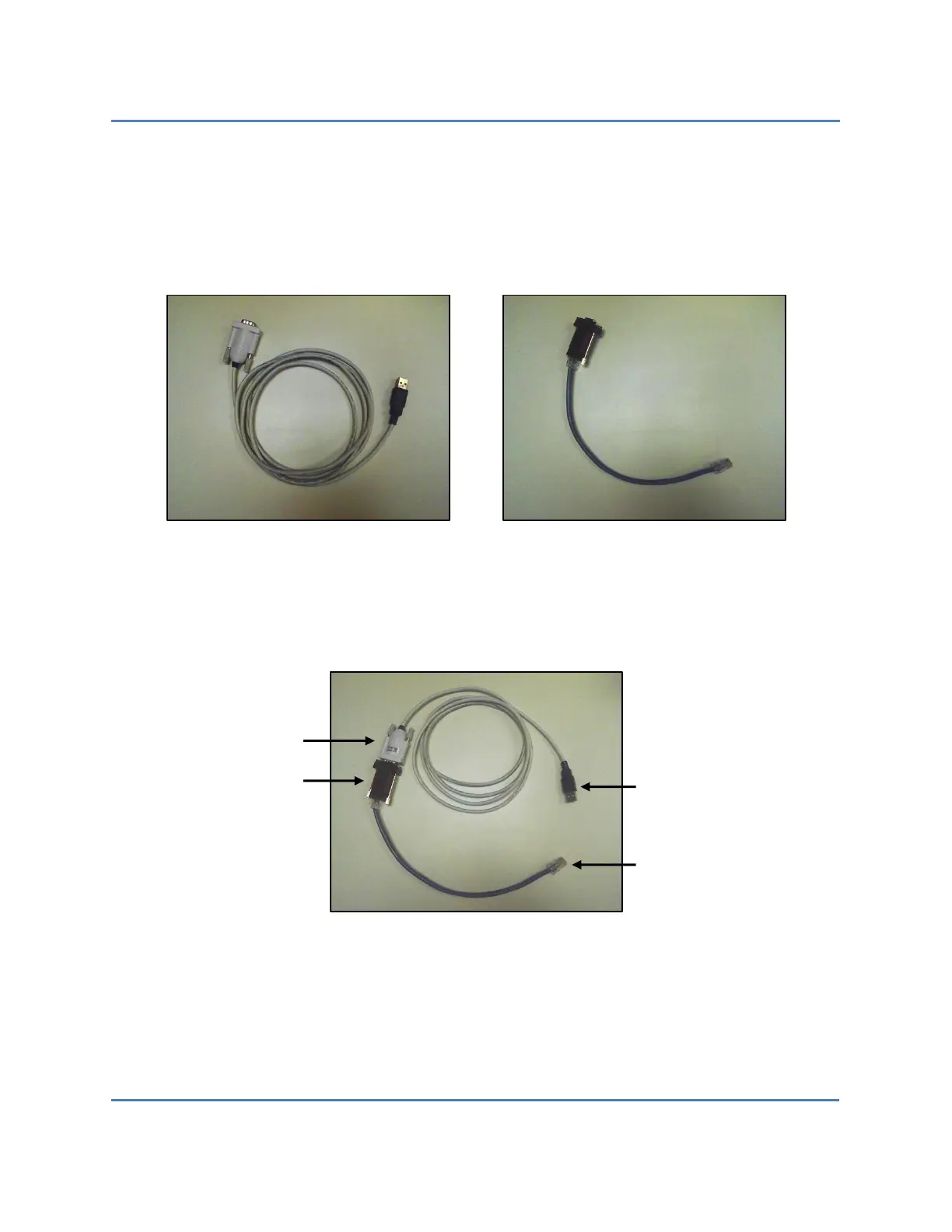

Figure 13 – USB-to-DB9 Cable (L) and RJ45-to-DB9 Adapter Cable (R)
2. Connect the RJ45 end of the assembled serial cable (Figure 14) to the serial connector
(labeled SERIAL PORT) located on the lower-right front of the S320 (Figure 6).
Figure 14 – Assembled Serial Cable
3. Connect the USB end of the assembled cable to the serial connector on the host PC.
USB connector
RJ45 connector
DB9 adapter
DB9 connector
