Technical data
Instruction Manual, Oct-16 14
5 Technical data
Line voltage
100-240V (see rating plate on instrument)
Power capacity
50 W Illumination unit / 3.5 W Camera (USB 3)
Frequency
50 – 60 Hz
Lamps switching Frequency
65 kHz
Timer settings
2/5/10/20/60 minutes and endless
Dimensions
Width 50 cm
Depth 60 cm
Height 65 cm
Weight
17kg
6 Appendix A: Illumination spectra
Spectral intensities of 254nm (narrowband) and 365 / 366nm (broadband) lamps are
shown in fig. 4.
Due to the broadband characteristics of the UV 366 tubes their intensities are similar at
both 365 and 366 nm and are equally qualified for both (365nm and 366nm)
specifications.

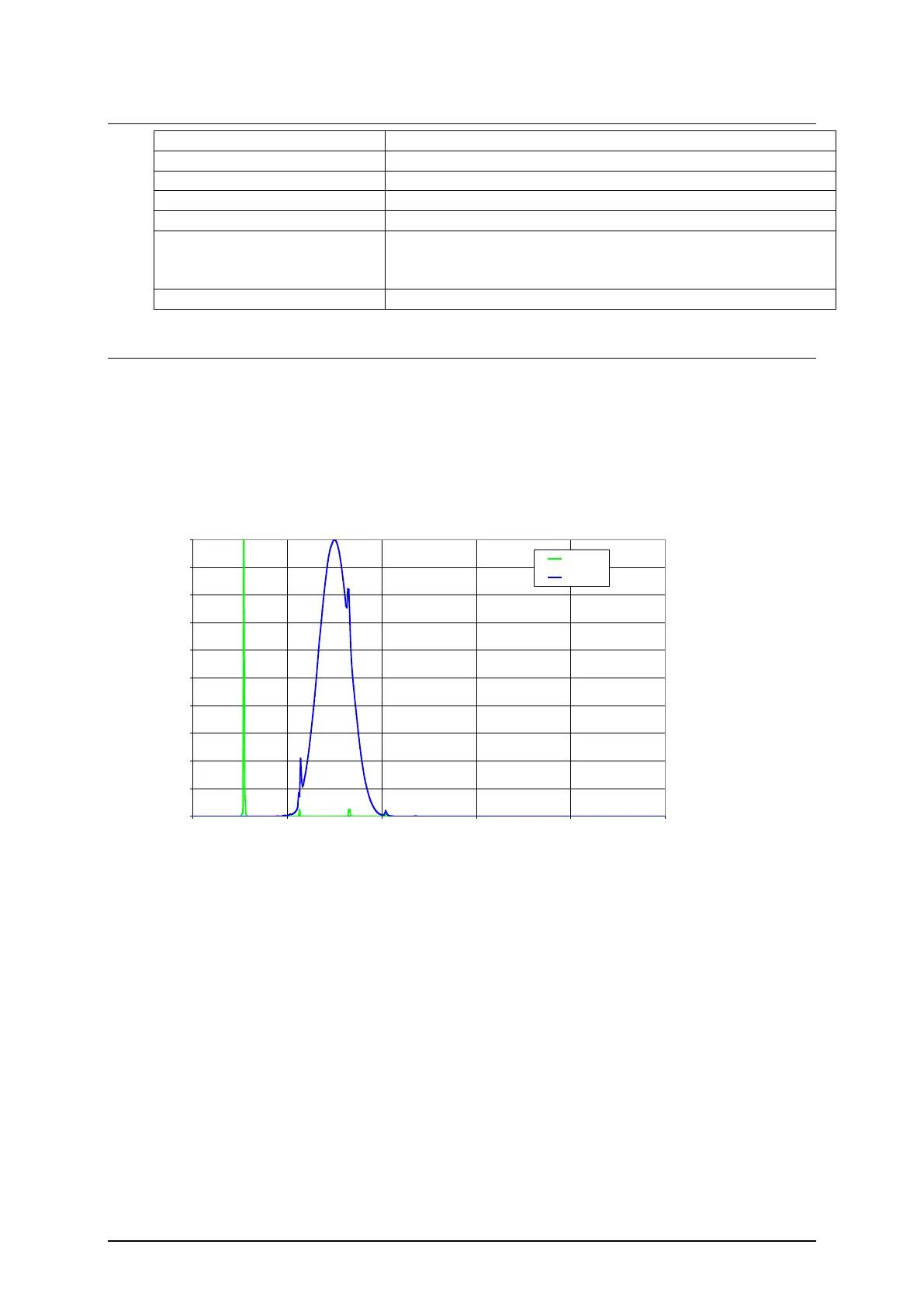

Fig. 4: Spectral intensities of lamp 254nm and 365 / 366nm
Visualizer illumination spectra
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
200 nm 300 nm 400 nm 500 nm 600 nm 700 nm
rel.int.
Pos. "254"
Pos. "366"
