Cambium Networks PMP 400 Series User Manual

Chapter 2: System hardware System Components
Page 2-7
PMP/PTP 450 platform interfaces

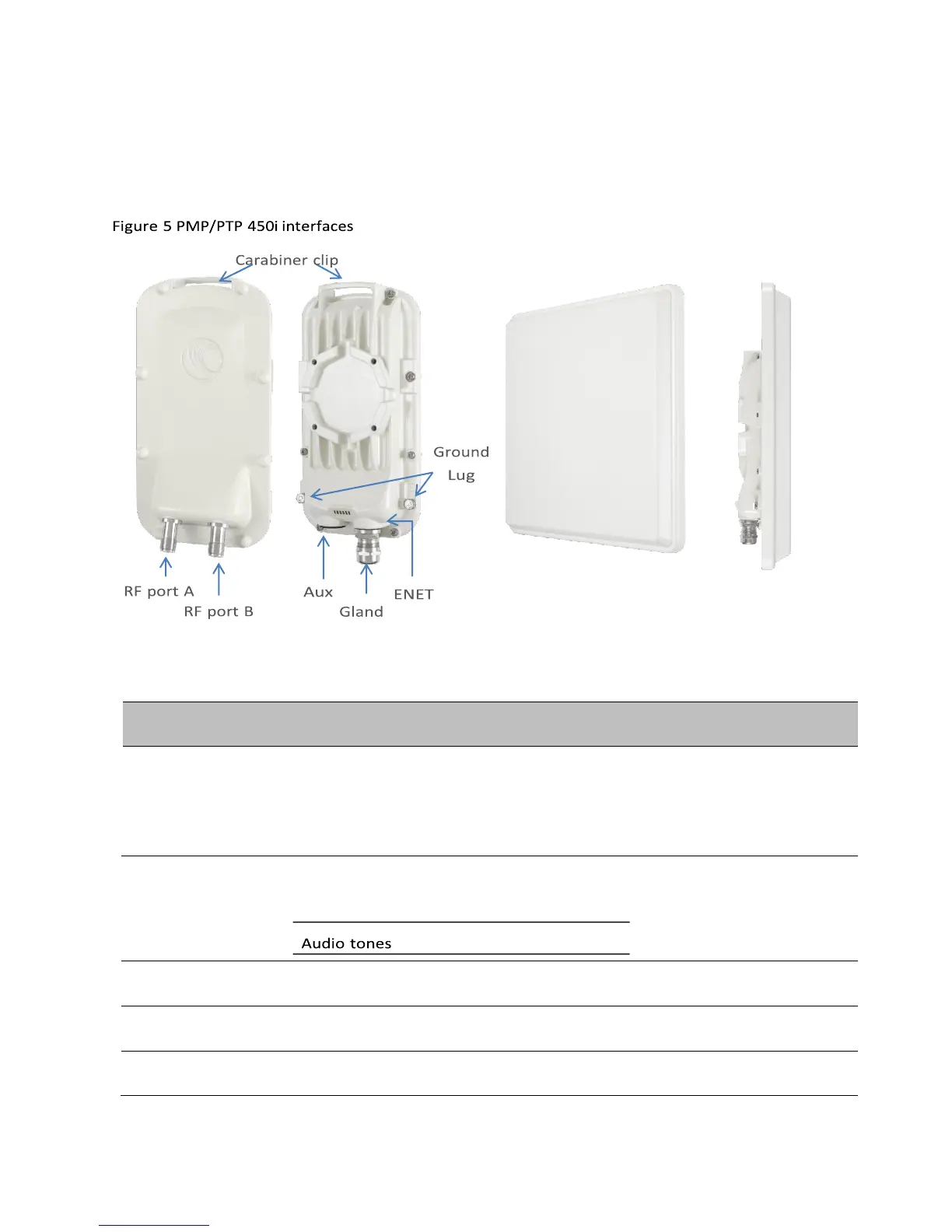

PMP/PTP 450i interfaces – AP/SM/BH
The AP/SM/BH interfaces are illustrated below.
Table 12 AP/SM/BH interface descriptions and cabling
Interface
Function
Cabling
PSU/Ethernet
Power-over-Ethernet, Ethernet communications
(management and data), CMM sync-over-power
synchronization input
RJ45 Cable
See Table 65 on page 5-11
Aux/Sync GPS synchronization input and output,
UGPS power output
RJ 45 Cable
See Table 66 on page 5-11 Data
RF Port A
Vertical RF connection to antenna
50 ohm RF cable, N-type
RF Port B
Horizontal RF connection to antenna
50 ohm RF cable, N-type
Ground Lugs
For grounding the unit
10 AWG copper wire
