Cambridge Audio 640C - Exploded Assembly Drawing

26/11/04
8
GTL
DRAWING.
AP16811/1
1

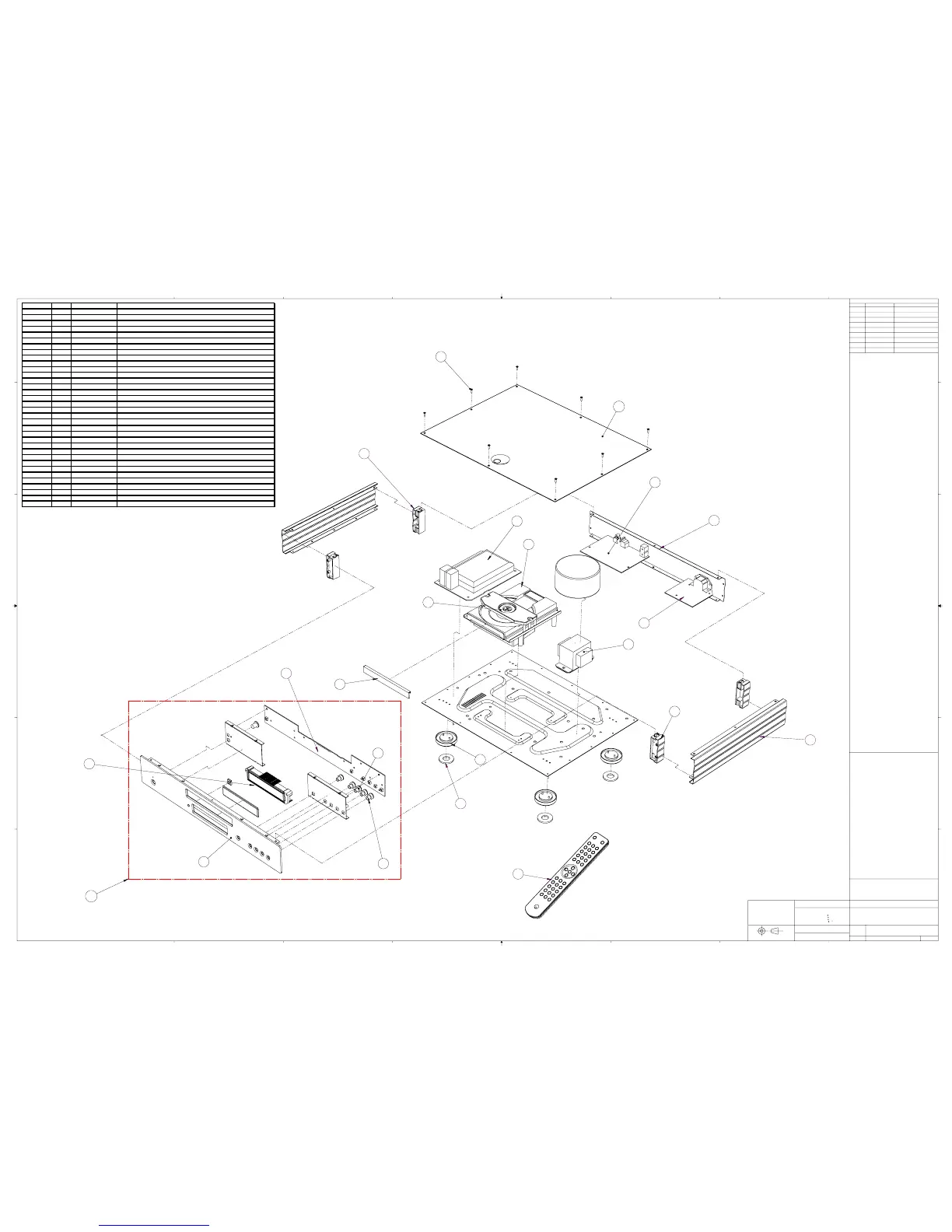

640C EXPLODED ASSEMBLY
1: ORIGINAL DRAWING 26/11/04.
2
4
18
19
1
22
17
5
6
15
14
16
9
3
10
20
13
7
21
11
12
C
DRAWING NOTES:-
REVISIONS NOTES:-
DATE
EDITOR
REV
THIRD ANGLE
PROJECTION
B
A
A
B
C
D
1
2
3
E-MAIL simon.freeth@audiopartnership
FINISH:
MATERIAL:
REVISIONS & DATE
E-MAIL nick@audiopartnership
1:5SCALE:
E-MAIL grahame@audiopartnership
FAX: 0207 940 2233
1
DO NOT SCALE FROM DRAWING
DWG. NO.
A0
SIZE
TITLE:
AUDIO PARTNERSHIP PLC
UNLESS OTHERWISE SPECIFIED:
OF 1SHEET
TEL: 0207 940 2200
LONDON SE1 4BB
HANKEY PLACE
3 GALLERY COURT
AUDIO PARTNERSHIP PLC
COPYRIGHT
0.5
--
--
PROPRIETARY AND CONFIDENTIAL
ANGULAR
0.1mm2 DECIMAL IE 75.75
OF AUDIO PARTNERSHIP IS PROHIBITED.
F
E
F
E
1
2
3
4
5
6
7
8
8
7
6
5
4
DIMENSIONS ARE IN MM's
TOLERANCES:
WHOLE NO.s IE 75 0.5mm
1 DECIMAL IE 75.5 0.2mm
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
AUDIO PARTNERSHIP PLC.
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT T HE WRITTEN PERMISSION
D
Drawing re
f
AP part Internal ref Description
1 CA new side panel
2 CA new plastic insert rear
3 CA new plastic insert front
4 CA new back panel
5
PY507 6550-010204-000-01 Azur 640C Top Panel Black
5
PY508 6550-010204-000-02 Azur 640C Top Panel Silver
6
PY515
7002-608010-001 Screw M2.6 x 8 M/C Torx Recessed 1/K Head Black
6
PY516
7002-608010-006 Screw M2.6 x 8 M/C Torx Recessed 1/K Head En-Plated (silver)
7 PY586 6564-010001-000A01 Azur-640C.Front panel SILVER
7 PY582 6564-010001-000-01 Azur-640C.Front panel BLACK
8 PY587 8564-001001-301 Azur-640C Complete front panel assy (Silver) REV A
8 PY583 8564-001002-301 Azur-640C Complete front panel (BLACK) REV A
9
PY563 3200-576690-100 TRANSFORMER 115V/230V AC10V/2A 16*2/0.5A ES-57-669
10
PY541
6050-150010-000A01 PLASTIC FOOT GREY PAINT SILVER
10 PY531 6050-150010-000 PLASTIC FOOT BLACK (AP126522)
11
PY340 9692-006002-101 Mechan Assy (PU92TL-210) W/Sony KSM213CCM ReV A
12 PY790 3009-213000-000 Sony laser assy KS213CCM
13 PY719 6050-150012-000-01 7MM TAC SWITCH BUTTON (BLACK)
13 PY720 6050-150012-000A01 7MM TAC SWITCH BUTTON (SILVER)
14 PY704
6600-170104-000 CA NEW RANGE AMP 7MM TAC SWITCH CUSHION
15 PY571 9464-001000-011 Azur-540C & 640C MAIN SERVO BOARD ASSY
16 PY588 9460-001300-581 Azur-640C DAC BOARD ASSY REV A
17 PY589 9464-001000-071 Azur-640C POWER PCB ASSY REV A
18 PY573 9805-064001-000 Azur-340/540/640AC REMOTE CONTROL ASSY
19 PY544 6600-170100-000 FOOT PAD FOR Azur-640A
20 PY568 6564-010006-000A01 Azur-640C.Silver CD DOOR W /SILKSCREEN PMS COOL GREY 7C
20 PY554 6564-010006-000-01 Azur-640C.Black CD DOOR W/SILKSCREEN PMS COOL GREY 7C
21 PY552 3110-064580-100 LCD DISPLAY ISO6458P01V0 113*25.7MM NEGATIVE (BLACK UNIT)
21 PY562 3110-064580-000 LCD DISPLAY ISO6458P00V0 113*25.7MM POSITIVE (SILVER UNIT)
22
PY556 9464-001000-041 Azur-540C & 640C CONTROL BOARD ASSY REV A
Note:user manual is downloadable from our www.cambridge-audio.co.uk
