CAME AGT V EVO - Description of the buttons; Button Functions; LED status key

Page 3 - Manual FA01669-EN - 12/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

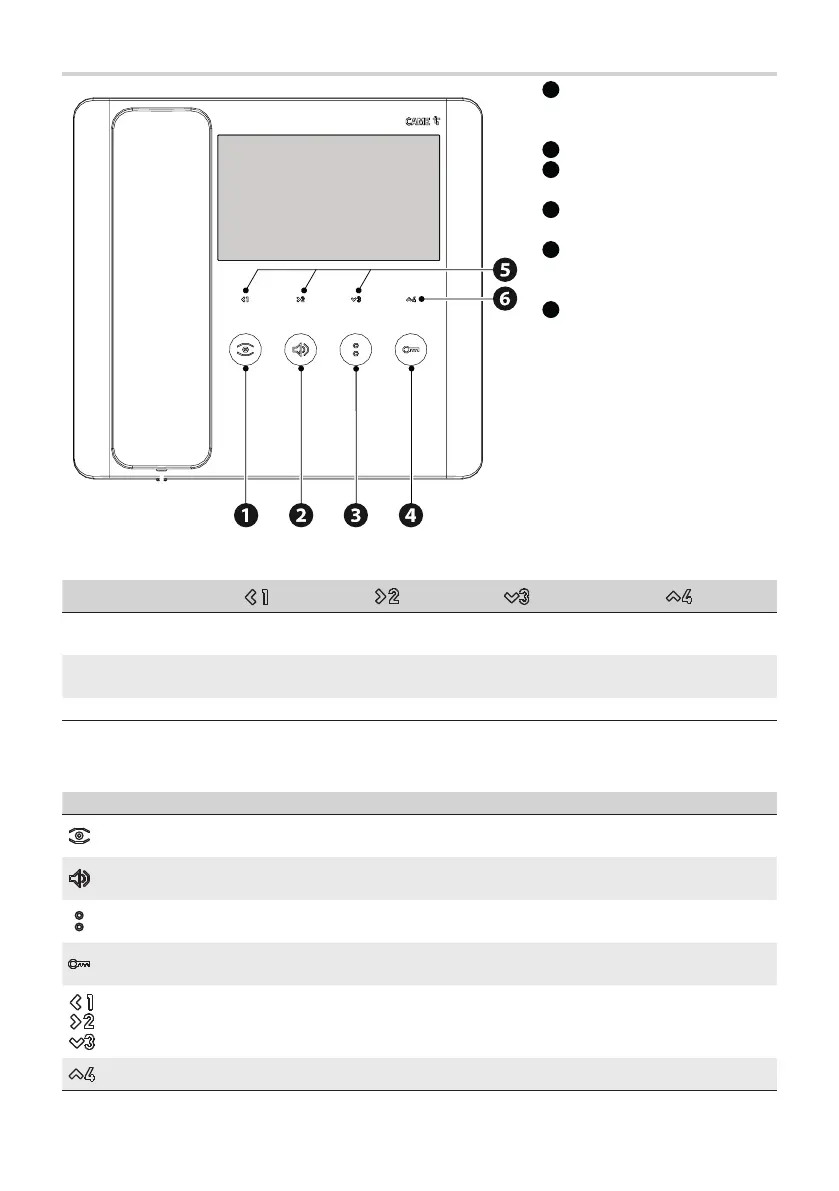

Description of the buttons
1
Activate video and enable/disable
AUTOMATIC DOOR RELEASE function
button
2
Audio settings button
3
Activate auxiliary services and porter
calls button
4
DOOR RELEASE and OPEN GATE
function button
5
Communication buttons between
internal numbers (INTERCOM) and
auxiliary controls (AUX)*
6
Auxiliary (AUX 5), PANIC function and
activate SECOND FUNCTION button*
* With the handset o the hook, the
buttons act as INTERCOM commands.
With the handset on the hook, they
act as auxiliary controls (AUX).
Default INTERCOM Internal 1 Internal 2 Internal 3
[Activate/Deactivate SECOND
FUNCTION]
Second function Internal 4 Internal 5 Internal 6
[Activate/Deactivate SECOND
FUNCTION]
Auxiliary controls AUX 1 AUX 3 AUX 4 AUX 5
LED status key
FLASHING FIXED OFF
AUTOMATIC DOOR RELEASE
enabled
AUTOMATIC DOOR RELEASE
disabled
Entering melody and call ring
confi guration mode
Ringtone volume o
PANIC SIGNAL sent
The porter would like to be called
back
Procedure in process
DOOR STATUS active: door open
GATE STATUS active: gate open
DOOR STATUS active: door closed
GATE STATUS active: gate closed
SECOND FUNCTION active
SECOND FUNCTION active
