Page 8 - Manual FA 01423 -E N - 03/2020 - © CAME S.p.A. -The contents of this manual may be changed, at any time, and without notice. - Translation of the o
riginal instructions

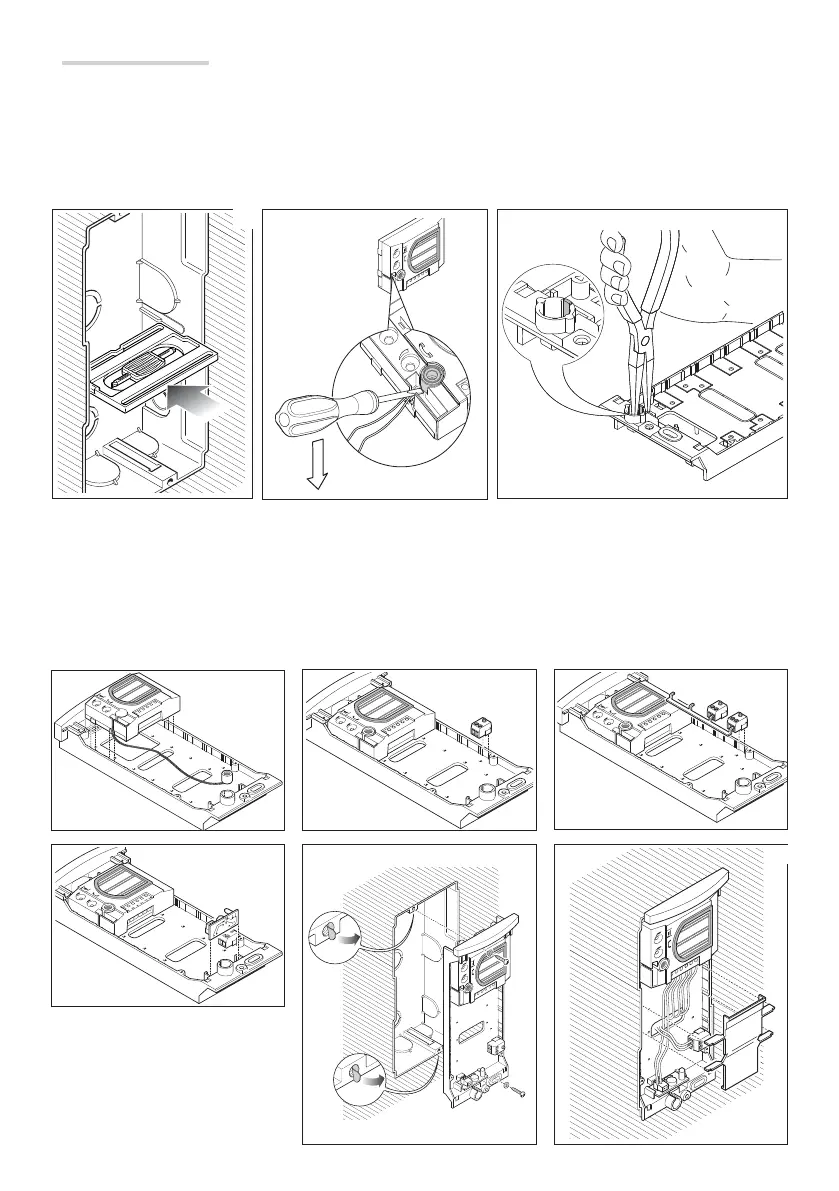

Recessed installation
The HTS recessed box must be walled in fl ush with the wall at a suitable height, using the spacer provided in order to avoid any
distortion of the box .
In systems where the Larsen e ect might occur, the microphone can be mounted remotely .
To remove the microphone from its housing, pry it o its base using a small screwdriver, taking care not to damage the
cabling .
Before inserting the microphone into the bottom of the back-box, use pliers to remove the part that is highlighted .
Insert the audio group high up, near to the top of the back-box .
Fit the microcontact (bottom right) into the correct housing . The front plate is equipped with a common call for the micro-
contacts, to be used when other buttons are to be installed (maximum of 4) .
Insert the lighting group in the relevant housing .
Remove the two protective seals on the holes in the recessed box and attach the back-box using the two screws provided .
Make the connections and secure the cables using the cable holder .
The cable holder must be located near to the audio group.
