CAME BKV2000P User Manual

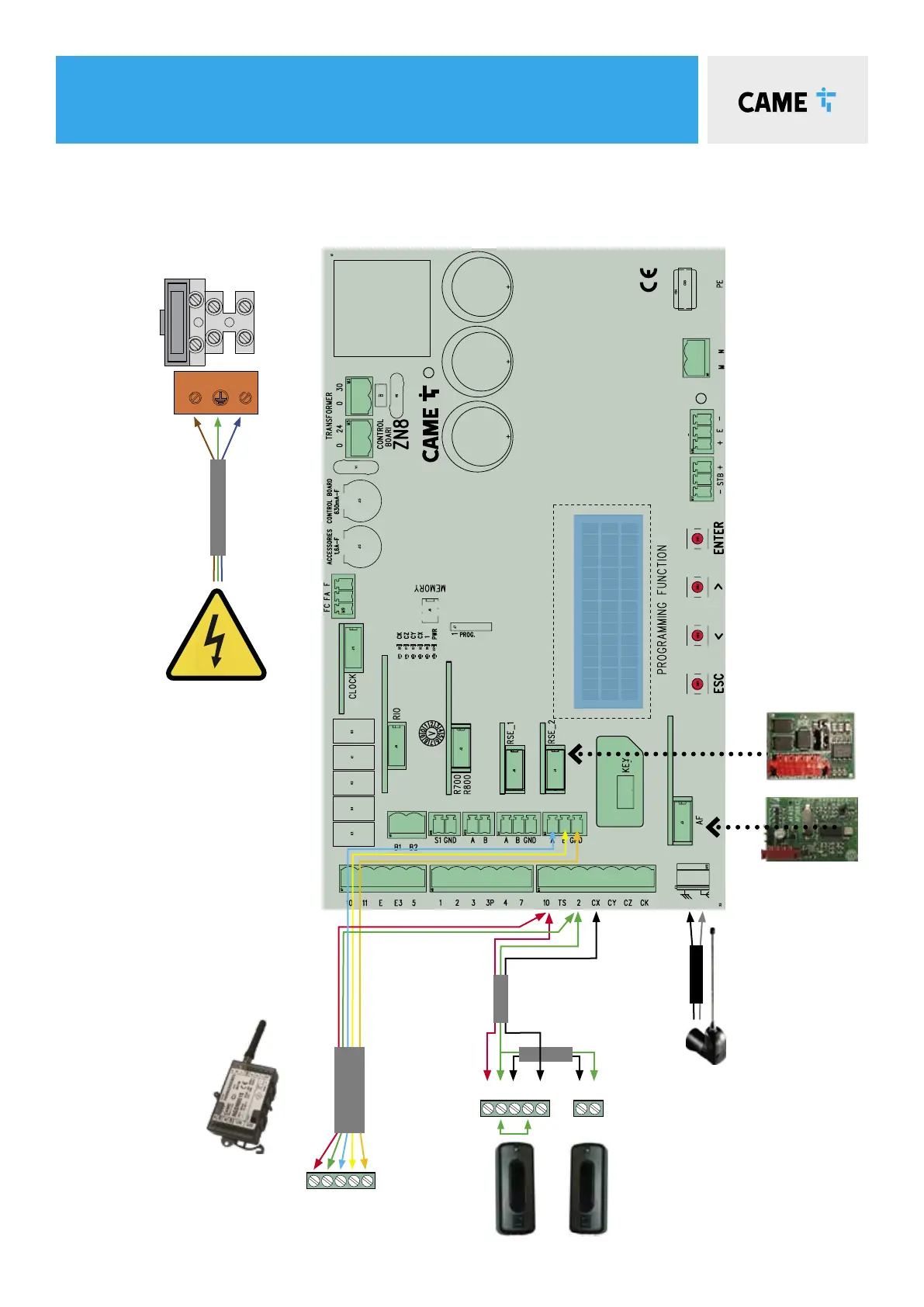

6 wiring diagram
ZN8
Control Panel
TOP-A433N
Antenna
Cable/length
RG58
Max. 5m
+ -
10 2 TX C NC
TX 2
RX TX
DIR
Photocells
Cable/length
RX 4 Core 0.5mm Flex
TX 4 Core 0.5mm Flex
1m - 30m
Mains Supply
230 V AC
Cable/length
1m - 20m = 3 Core 1.5mm Flex
20m - 30m = 3 Core 2.5mm Flex
AF43S
Plug-in
1 2 3P 7 10 TS 2 CX CY
M N
FC FA F + E -
L N
A GNDBA BS1 GND
10 11 E 5Z4 C
RSE
Set RSE jumper
to OFF
RGSM001S
Gateway Module
Cable/length
Max 3m power
10 2 A B GND

CAME BKV2000P Specifications

General

Brand	CAME
Model	BKV2000P
Category	Gate Opener
Language	English
