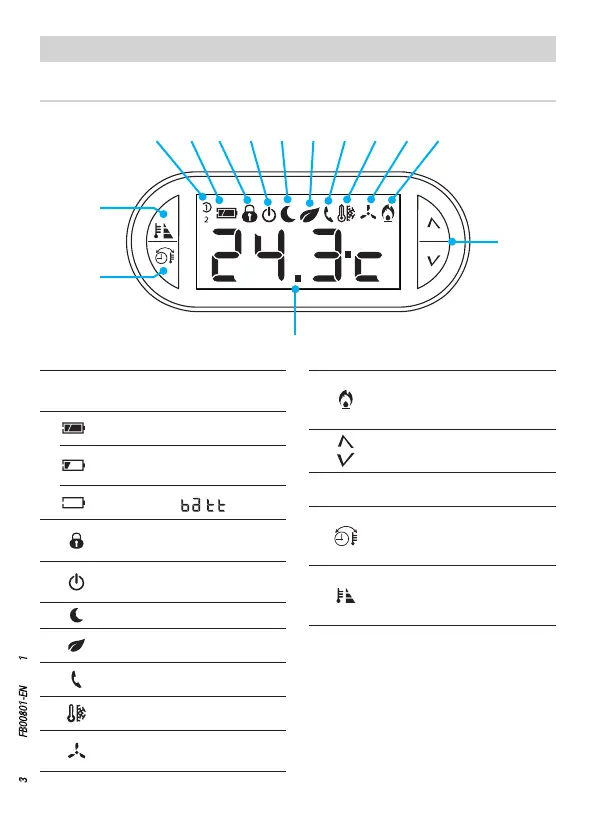

Device description
Description of the icons on the display and function of the buttons
①
User profiles; the active profile is
highlighted.
②
Batteries charged.
Replace batteries within one
month.
Batteries low (
)
.
③
Temperature regulation lock
active.
④
Thermal zone excluded from
control (frost protection active).
⑤
NIGHT temperature level active.
⑥
ECO temperature level active.
⑦
Remote activation in progress.
⑧
Frost protection temperature.
⑨
Cooling mode active. Animated
icon = cooling in progress.
⑩
Heating mode active.
Animated icon = heating in
progress.
⑪
Buttons to vary the values
displayed.
⑫
Temperature detected/current time.
⑬
Button to choose the data
shown on the display
(temperature/time).
⑭
Button for activating
temperature levels
(COMFORT, ECO and NIGHT).
CAUTION!
The device should only be cleaned using a
soft cloth dampened with water.
②① ⑥⑤③ ⑦ ⑨④ ⑧ ⑩
⑪
⑫
⑭
⑬
