Page 5 - Manual FB00801-EN - ver. 1 - 07/2017 - © CAME S.p.A. - The contents of this manual are subject to change at any time without prior notice.

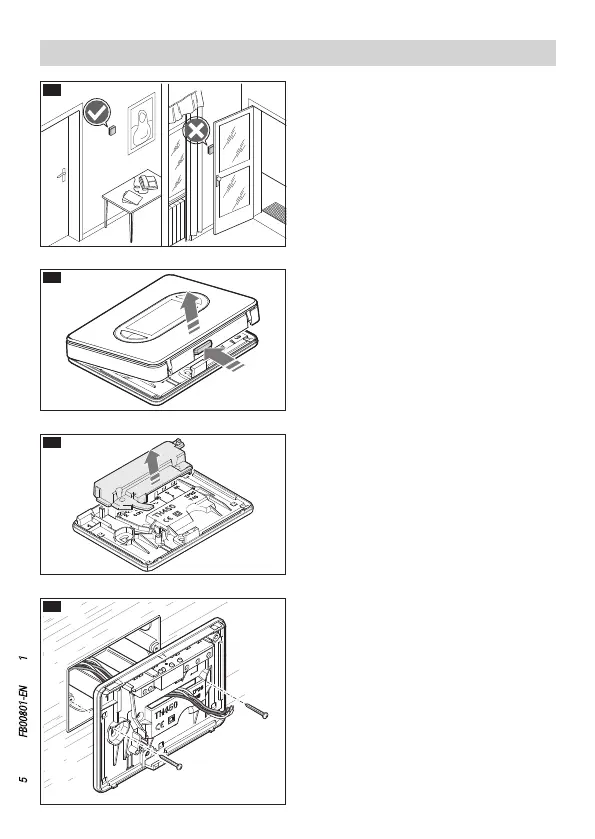

Installation
Secure the base to the recessed box,
passing the connection wires through the
designated opening D.
N.B. Do not tighten the fixing screws too
much.
Remove the protective shell from the
terminal block C.
Press the button ❶ and separate the base
❷ from the device body B.
Install the unit in a suitable position to
correctly detect the temperature, possibly
in an internal wall, avoiding installation
in niches, behind doors, curtains or near
heat sources.
