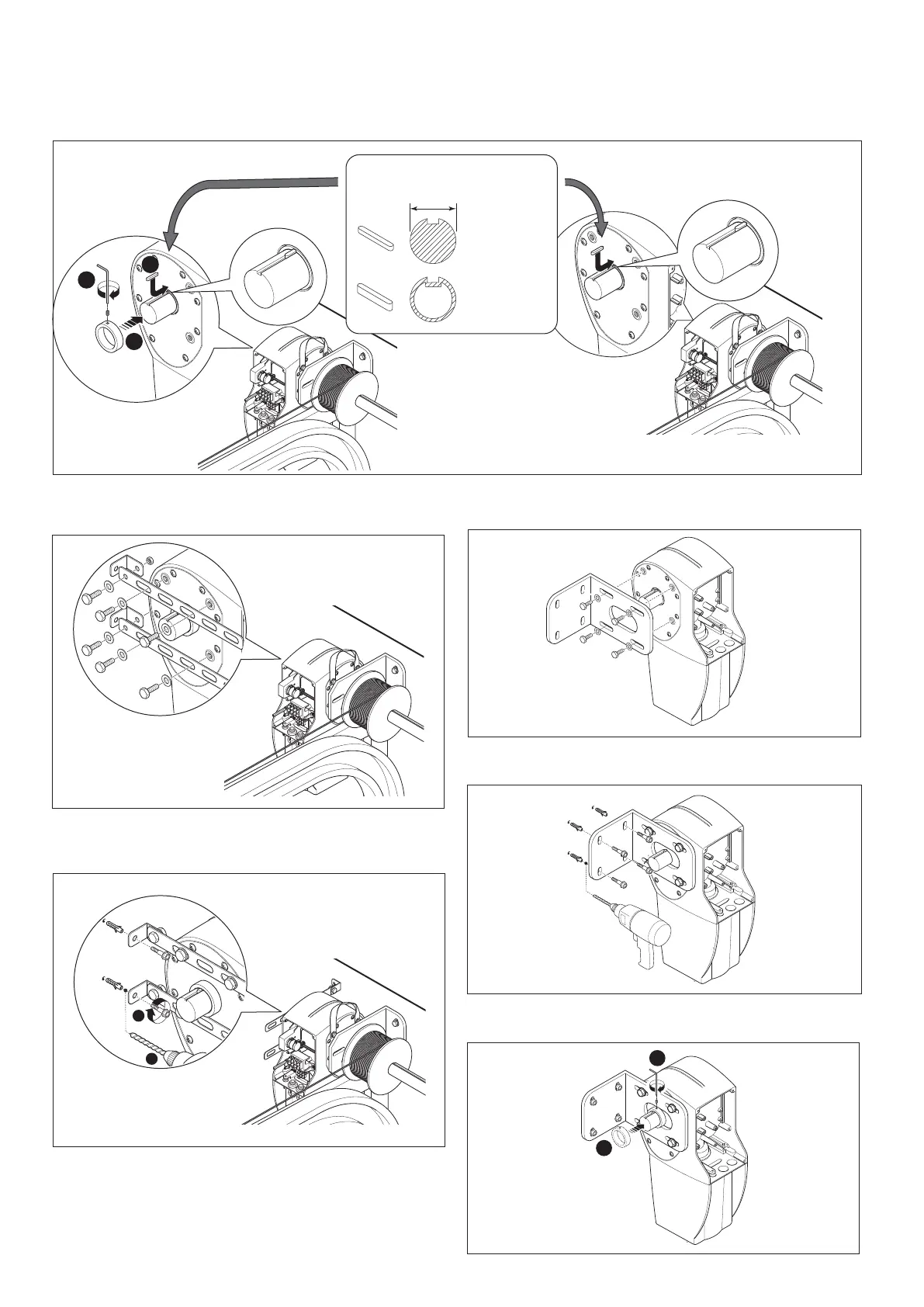

3) With “C006” accessory:
Insert tab A or B depending on the shaft type (see fi g A) between
the two cavities. Insert the bushing into the shaft and secure using
the screw.
SOLID SHAFT
HALLOW SHAFT
Fig.A
3) With “C009” accessory:
Insert tab A or B depending on the shaft type (see fi g A) between the
two cavities.
4) Assemble the brackets and fi x them ( N.B. don’t tighten them com-
pletely) to the gearmotor using the issued screws.
4) Secure the elbow bracket to the gearmotor using UNI5739 M8x16
screws (N.B. : don’t tighten them completely)
5) Secure the brackets to the wall using suitable screws. Tighten
them on the gearmotor
5) Secure the brackets to the wall using suitable screws. Tighten them
on the gearmotor
6) Insert the bushing into the shaft and secure it using the UNI5927
M6x16 headless screw.
