H > 5,5 m.
1
2
3
v
A
B
C-005
C-011
Page 11 - Manual FA01734-EN - 06/2022 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

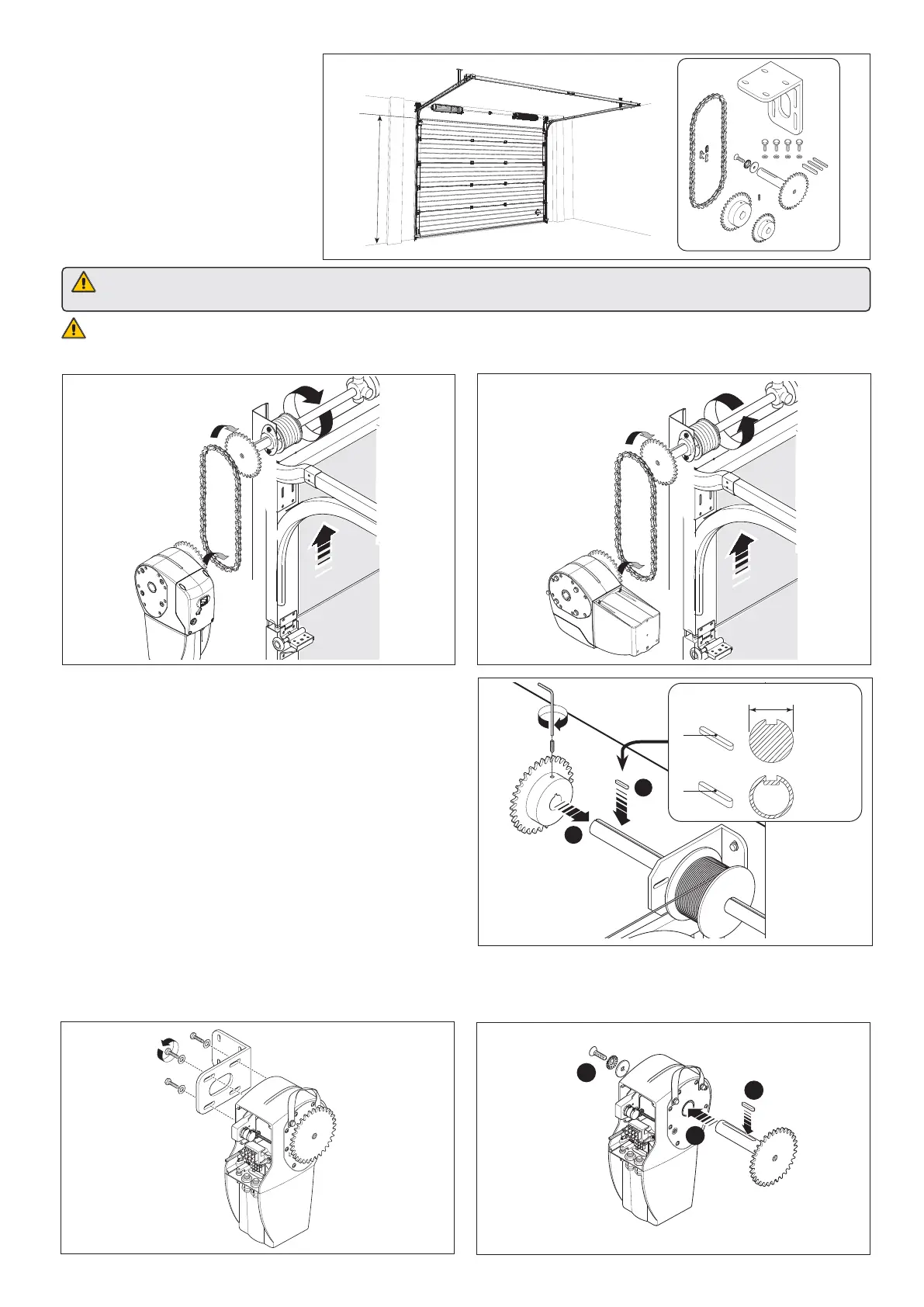

Fig.1
CHAIN TRANSMISSION
When installing on large sectional doors
that are taller than 5 m., the (Art. C005)
accessory must be used.
For doors where the gearmotor cannot
be assembled in alignment with the door
springs, use the C-011 accessory.
For the following gearmotors only: CBXE, CBXEK, C-BXET and C-BXE24, before securing the chain to the motor, move the door halfway
along its run.
Before securing the chain to the motor, open the large door to check the direction of rotation of the cable winch-barrel. Insert the
gearmotor vertically or horizontally depending on the direction of travel.
1) First insert the A or B tab into the spring shaft, (see fi g. 1) and then
the cog wheel line with the tab. Secure the cog wheel and shaft using
the screw.
2) insert the A tab into the cavity of the cogged pinion shaft, insert the
pinion into the gearmotor hallow shaft and secure it using UNI 5933
M6x16 screw and the two washers on the opposite side.
3) Secure the elbow bracket to the gearmotor using the issued
screws.
VERTICALLY APPLIED
HORIZONTALLY APPLIED
HALLOW
SHAFT
SOLID
SHAFT
