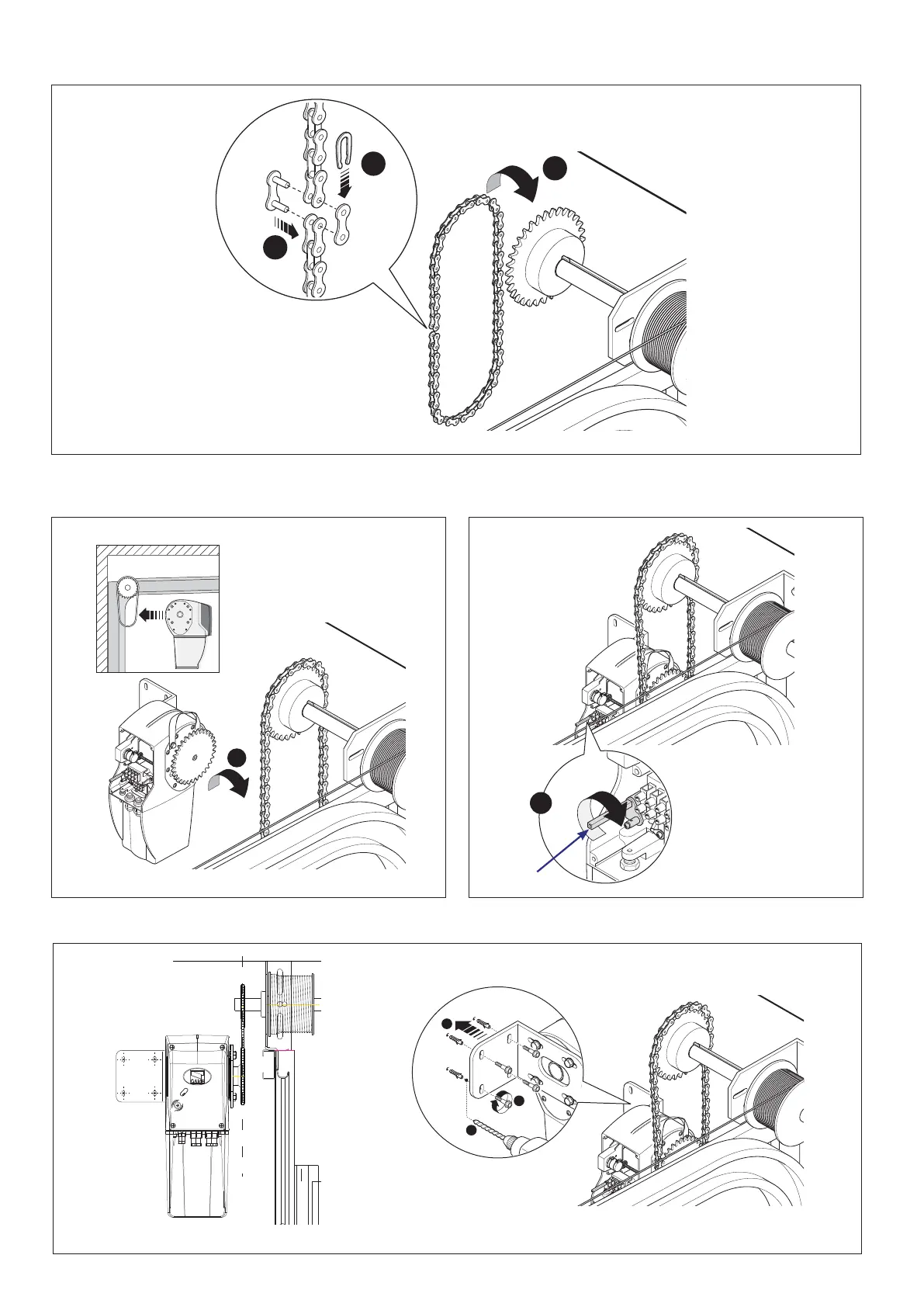

4) Join the ends of the chain using the joint and lay it onto the cog wheel, leaving it hanging.
5) Anchor the gearmotor’s pinion shaft to the hanging chain.
6) Manually release the gearmotor by turning the rod clockwise.
7) Secure the gearmotor’s elbow bracket, making sure that the two cog wheels are perpendicularly in line.
