Installing the operator on large and regular, sliding doors
LARGE, ONE OR TWO-LEAFED DOORS
When installing on large one or two-leafed doors, you must use the C003 accessory (reset system for sliding doors).
For the following gearmotors only: CBXE, CBXEK, C-BXET and C-BXE24, before securing the chain to the motor, move the door halfway
along its run.
2) INsert the tab into the cavity of the Z26 cogged pinion shaft, insert
the pinion into the gearmotor hallow shaft and secure it using the UNI
5933 M6x16 screw and the two washers on the opposite side.
3) Secure the whole assembly either at the top right or left of the door
using proper screws and bolts..
4) Secure the chain tension reset opposite the gearmotor an in line
with the pinion.

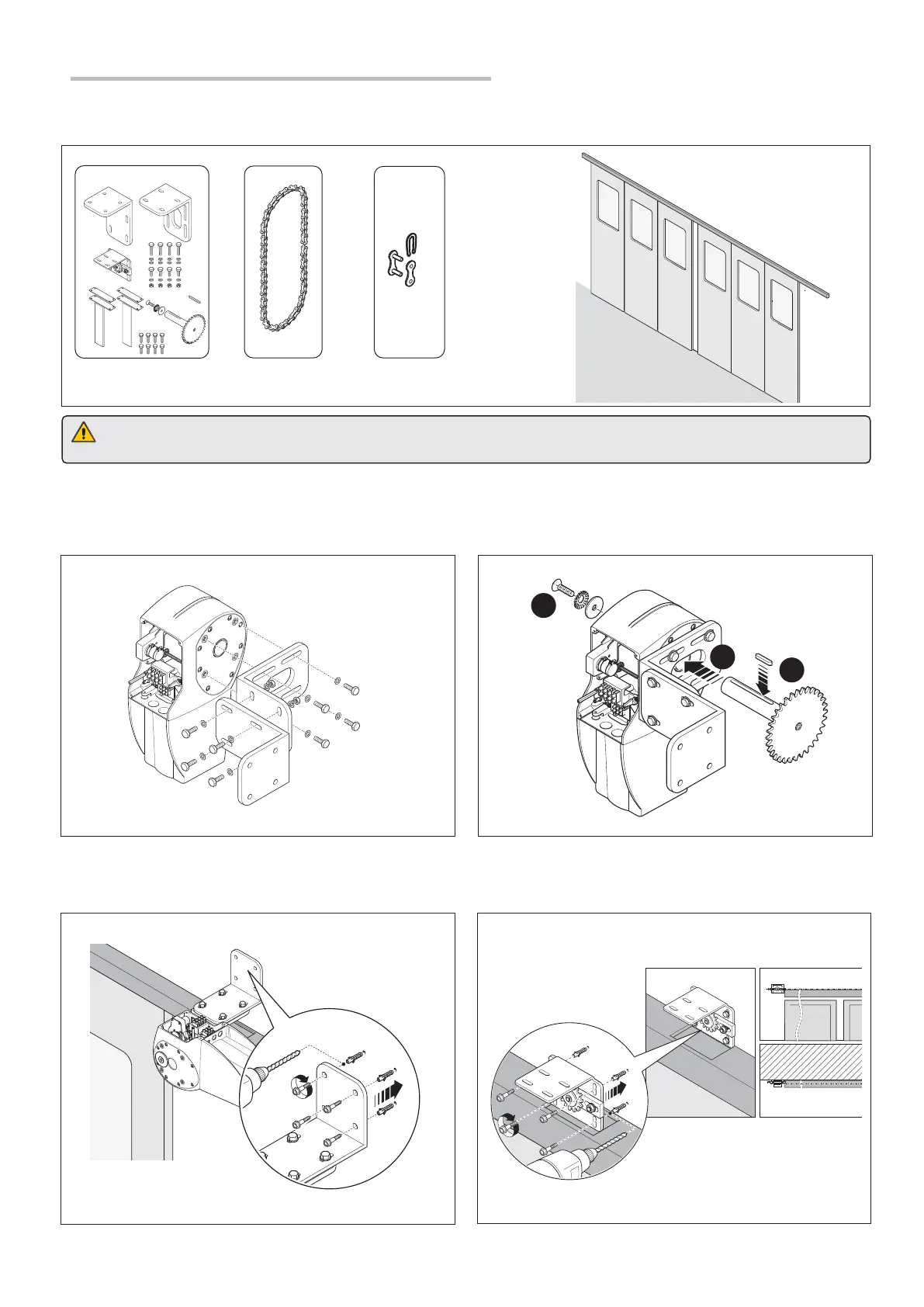

1) Assemble the two elbow brackets and secure them to the gearmotor
(see drawing).
