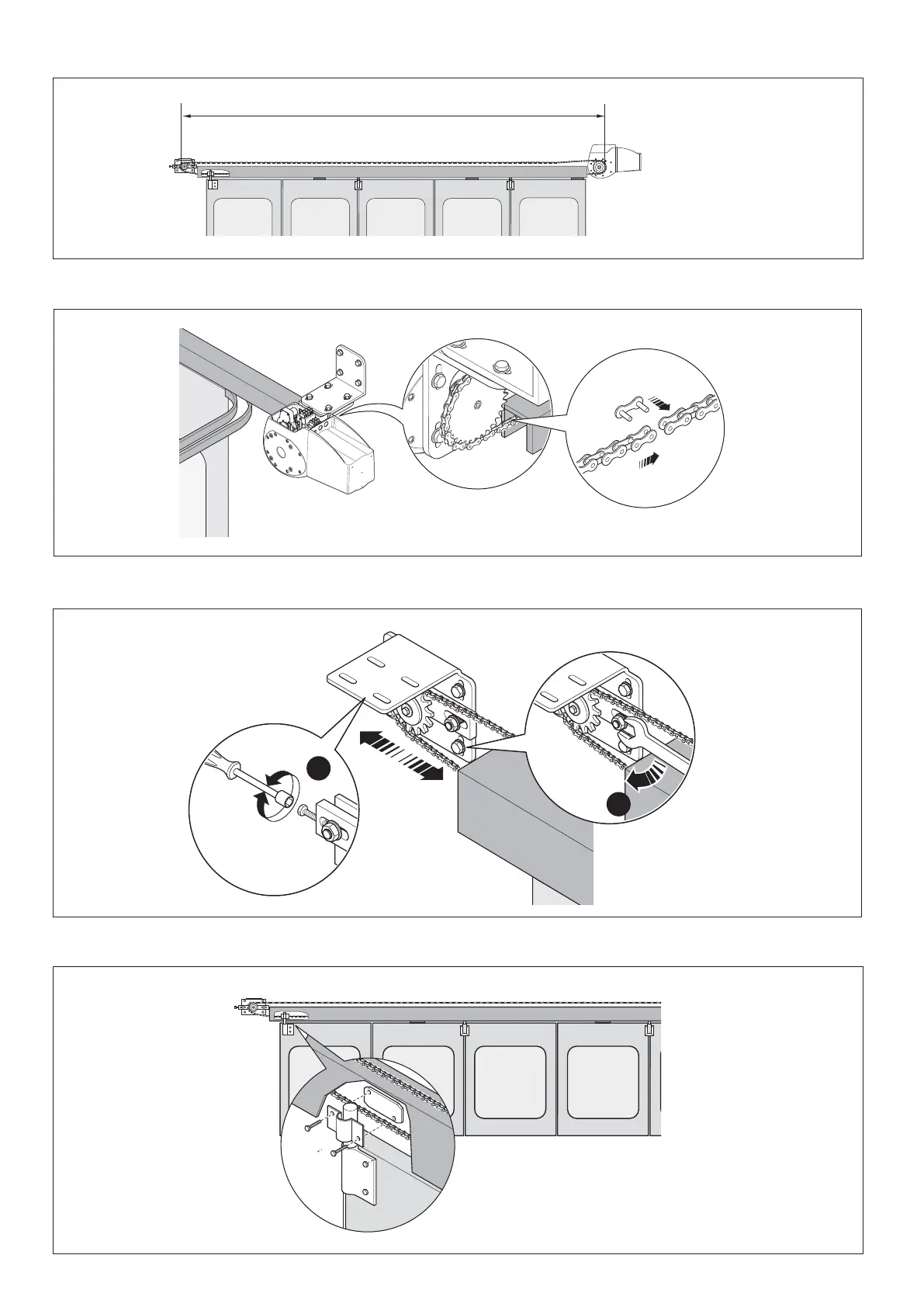

5) Place the ½ inch (CCT) chain between the gearmotor and the reset. The length of the chain ust be equal to twice distance A.
6)Join the two ends of the chain using the (CGIU) joint).
7) Adjust the chain tension using the reset screw and then lock the nuts.
8) Secure the chain to the pin of the fi rst door-leaf using the chain bracket and UNI 931 M8X30 screws.
