CAME C-BX Installation Manual

1
2
3
2
+
+
CCT
CGIU
Page 15 - Manual FA01734-EN - 06/2022 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

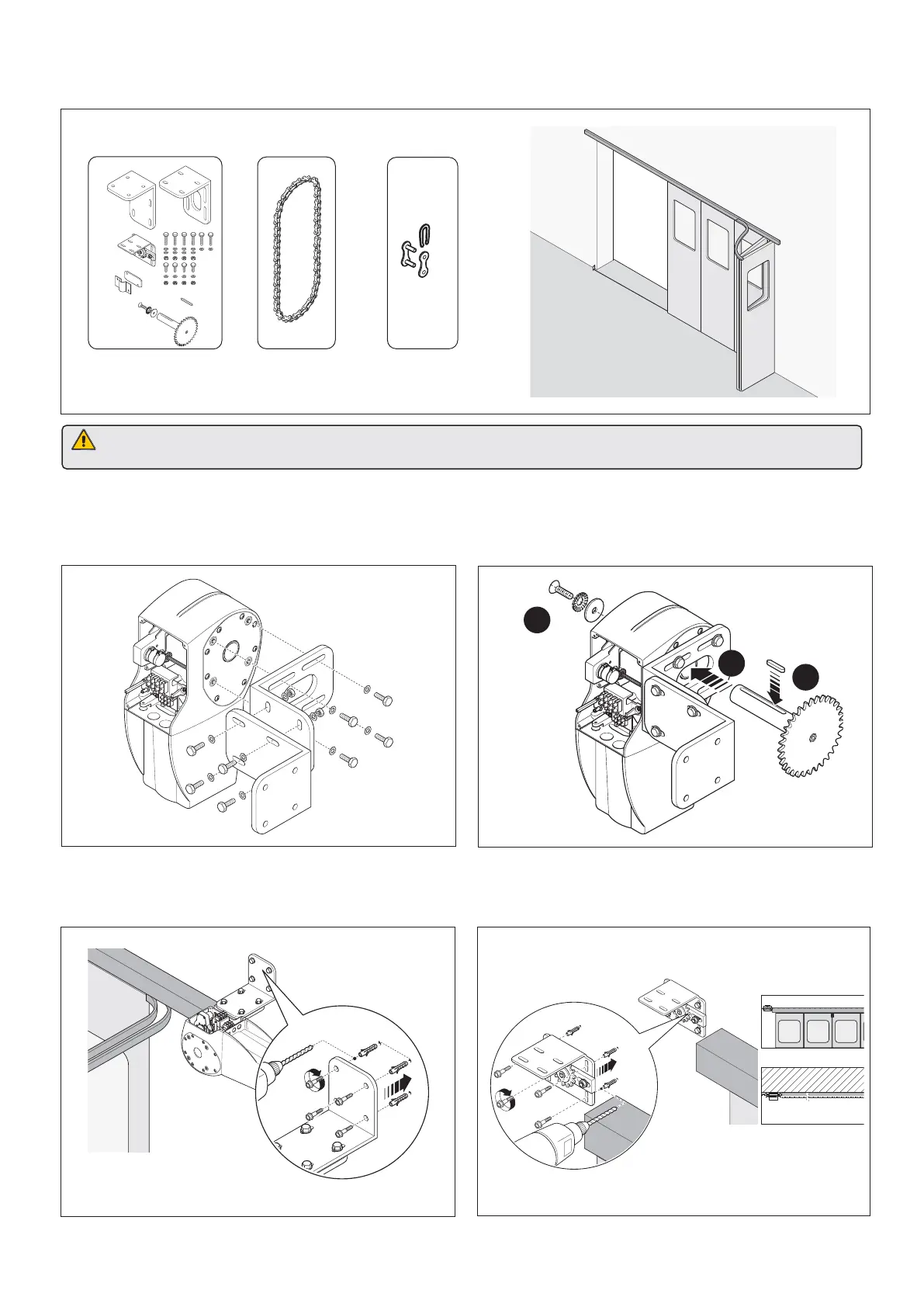

LARGE FOLDING DOORS
When installing large folding doors with anti derailment-fl aps, you must use the C004 accessory (reset system for large, folding doors).
For the following gearmotors only: CBXE, CBXEK, C-BXET and C-BXE24, before securing the chain to the motor, move the door
halfway along its run.
2) Insert the A tab into the cavity of the Z26 cogged pinion shaft,
insert the pinion into the gearmotor hallow shaft and secure it using
UNI 5933 M6x16 screw and the two washers on the opposite side.
3) Secure the whole assembly either at the top right or left of the door
using proper screws and bolts.
4) Secure the chain tension reset opposite the gearmotor an in line
with the pinion.
1) Assemble the two elbow brackets and secure them to the gearmotor
(see drawing).
