CAME C-BX Installation Manual

FC FA F
CAME
R
U V W E
W V U
M
T°
FC FA F
&# &! &
#!-%
2
56 7%
76
5
&&#
&!
-
 &! &#
#!-%
2
78 9 %
76 5
&&# &!
-
Page 18 - Manual FA01734-EN - 06/2022 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

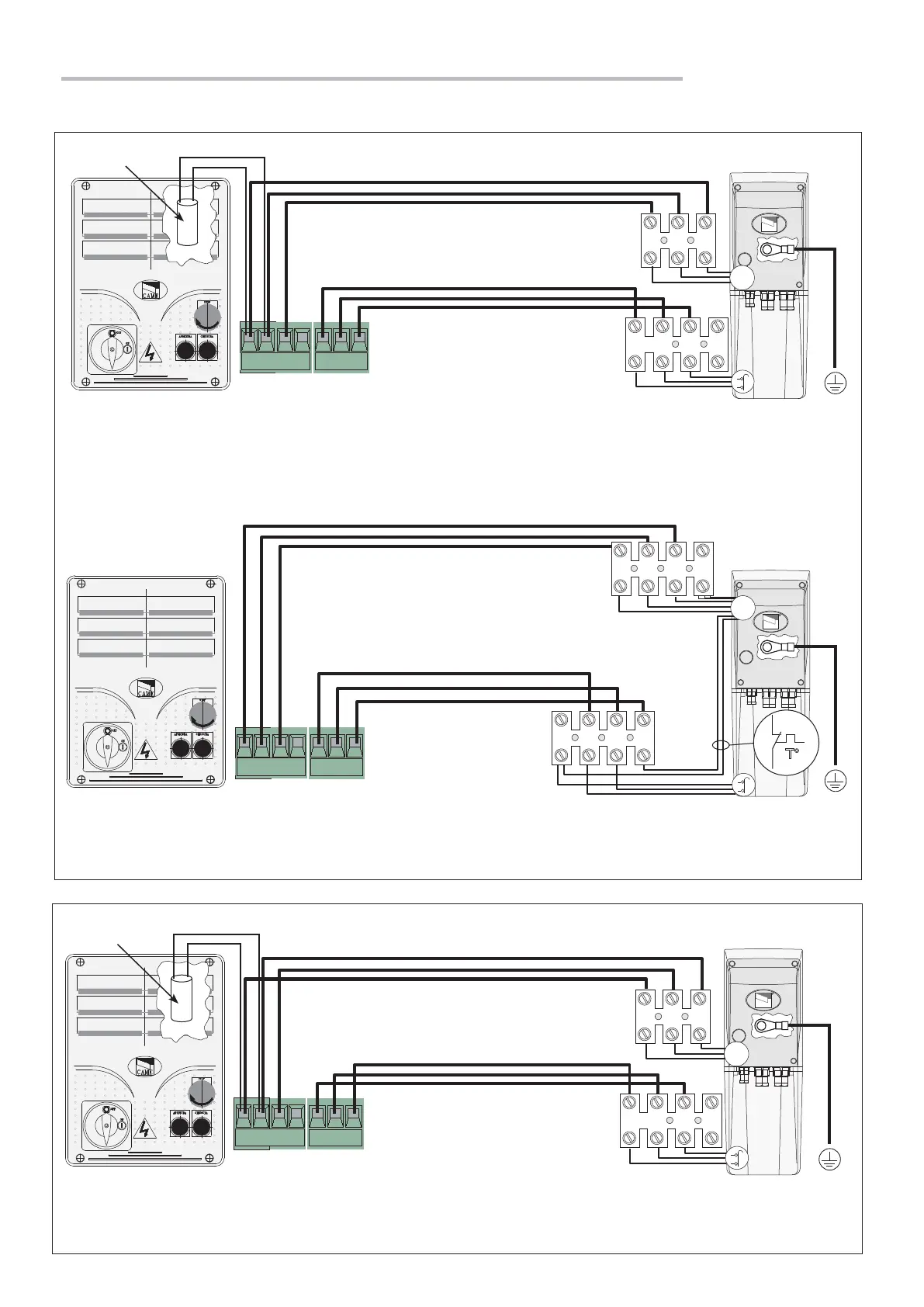

Electrical connection to the control panel for gearmotors with mechanical endstops
For the electrical connection, use proper cable sheaths and glands so as to guarantee the stated protection rating.
To set the encoder, check the technical literature for the control panel.
CONTROL PANEL
ZC3 / ZC3C
GEARMOTOR
C-BX / C-BXK
CONTROL PANEL
ZT6 / ZT6C
GEARMOTOR
C-BXT
Condenser
CONTROL PANEL
ZM3E / ZM3EC
GEARMOTOR
C-BX / C-BXK
Only for large sliding or folding doors
Condenser
