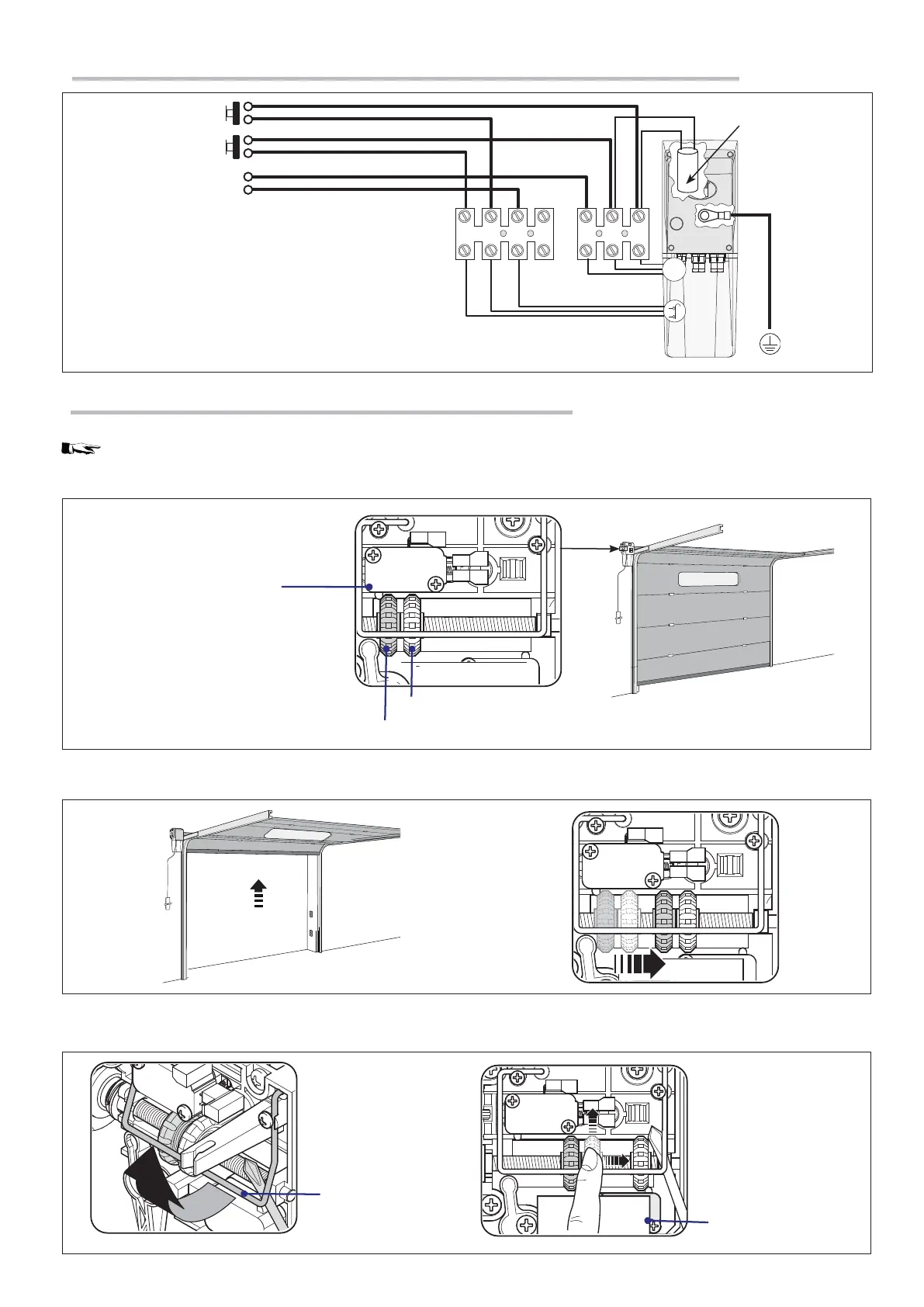

Direct electrical connection via inter-blocked buttons only for the C-BX / C-BXK gearmotor
Adjusting the endstops (only for models with mechanical endstops)
Make sure the door is closed and that the two cog wheels of the gearmotor assembly are both positioned on the left.
the gearmotor is already set to the closing position, that is, the closing endpoint microswitch is activated.
Fully open the gate, either manually or using the button on the control panel. The two cog wheels will move to the right
Using a screwdriver, raise the endpoint spring from the cog wheels, manually turn the white cog wheel until it reaches the opening microswitch
and then lower the spring back onto the cog wheels.
Opening endpoint
micro-switch
Endpoint spring
White opening cog wheel
Red closing cog wheel
Closing endpoint micro switches
CLOSE BUTTON
OPEN BUTTON
POWER
Condenser
